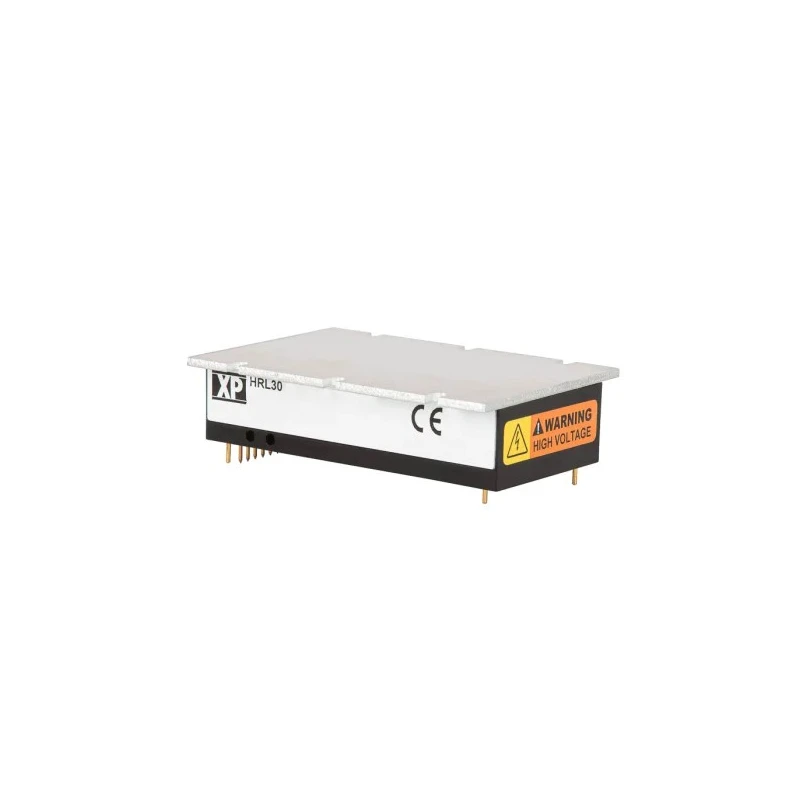

XP Power HRL30 30W High Voltage DC/DC Converter 6000V Output, 30V DC Input, 150mA Output Current, Through Hole Mount HRL30
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power HRL30 DC/DC Converter, 6000V dc/, 30V dc |
| Brand | XP Power |
| Efficiency | 85% |
| Operating Temperature | -40°C to +70°C |
| Length | 76.2mm |
| Model | HRL30 |
| Depth | 18.6mm |
| Gross Weight | 120g |
| Width | 50.8mm |
| Mount Type | Through Hole |
| Series | HRL30 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1mH |
| Number of outputs | 1 |
| Ripple and Noise | 0.05% |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 30V dc |
| Standards/Approvals | UL 60950, 62368, CE, RoHS |
| Minimum Input Voltage | 22V |
| Number of Pins | 14 |
| Output Voltage 1 | 6000V dc |
| Output Current 1 | 150mA |
Key Features
- This converter offers a programmable output current and voltage up to 6000V DC output voltage.
- It operates with a 22 to 30V DC input voltage range, providing flexibility for various applications.
- The product uses a through-hole mount type suitable for secure installation on PCBs.
- It features low ripple noise of 0.05% for stable and clean power output.
- Operating temperature range from -40°C up to 70°C ensures functionality in harsh environments.
- It includes protections against short circuit, arc, and overload to enhance device safety.
- The device achieves high efficiency of approximately 85%, optimizing power usage.
- Designed with a digital compatible voltage and current monitor and control outputs.
Product Description
XP Power HRL30 DC/DC Converter HRL30 series is a miniature 30W high-voltage DC-DC converter offering regulated output voltages up to 6000V DC. It operates from a 22 to 30V DC input voltage range and delivers an output current up to 150mA. This through-hole mounted converter ensures precise high voltage output with low electromagnetic interference (EMI) and high efficiency, making it ideal for demanding industrial and laboratory power supply needs.
The converter features constant voltage and current operation with automatic crossover to current limiting mode, preventing excessive current delivery. It incorporates digital-compatible voltage and current monitoring outputs, facilitating integration with control systems and offering real-time feedback.
With an efficiency exceeding 80%, low ripple and noise of 0.05%, and an operating temperature range from -40°C to +70°C, this device reliably performs in extreme ambient conditions. Protective features include short circuit, arc, and overload protections, enhancing operational safety and device longevity.
The compact footprint and lightweight design (120g) allow easy mounting and installation in high voltage industrial equipment, test instrumentation, or power management systems. XP Power HRL30 converters are suitable for applications requiring high voltage isolation and precise control such as medical equipment, analytical instruments, automotive electronics, and manufacturing automation.
This converter offers a programmable output current and voltage up to 6000V DC output voltage. It operates with a 22 to 30V DC input voltage range, providing flexibility for various applications. The product uses a through-hole mount type suitable for secure installation on PCBs.
It features low ripple noise of 0.05% for stable and clean power output. Operating temperature range from -40°C up to 70°C ensures functionality in harsh environments. It includes protections against short circuit, arc, and overload to enhance device safety.
The device achieves high efficiency of approximately 85%, optimizing power usage. Designed with a digital compatible voltage and current monitor and control outputs. Compact size dimensions include length 76.2mm, width 50.8mm, and depth 18.6mm with a weight of 120g.
Suitable for industrial, laboratory, manufacturing, and high voltage electronic applications. Explore more high-quality DC/DC Converters and power supply solutions at EnvMart for your electronic design and industrial power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HRL30 DC/DC converter offers a maximum output voltage of 6000V DC.
It operates with an input voltage range of 22 to 30V DC.
The maximum output current of this converter is 150mA.
The efficiency of the HRL30 is approximately 85%.
The dimensions of the HRL30 are 76.2mm in length, 50.8mm in width, and 18.6mm in depth.
It can operate within a temperature range of -40°C to +70°C.
This model uses a through-hole mount type for secure installation on PCBs.
It includes protections against short circuit, arc, and overload to enhance device safety.
The ripple and noise specification for the HRL30 is 0.05%.
This converter has one output.
The HRL30 complies with UL 60950, 62368, CE, and RoHS standards.
It is suitable for applications requiring high voltage isolation and precise control, such as medical equipment, analytical instruments, and manufacturing automation.
