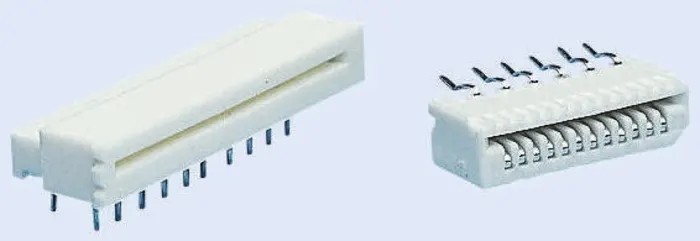

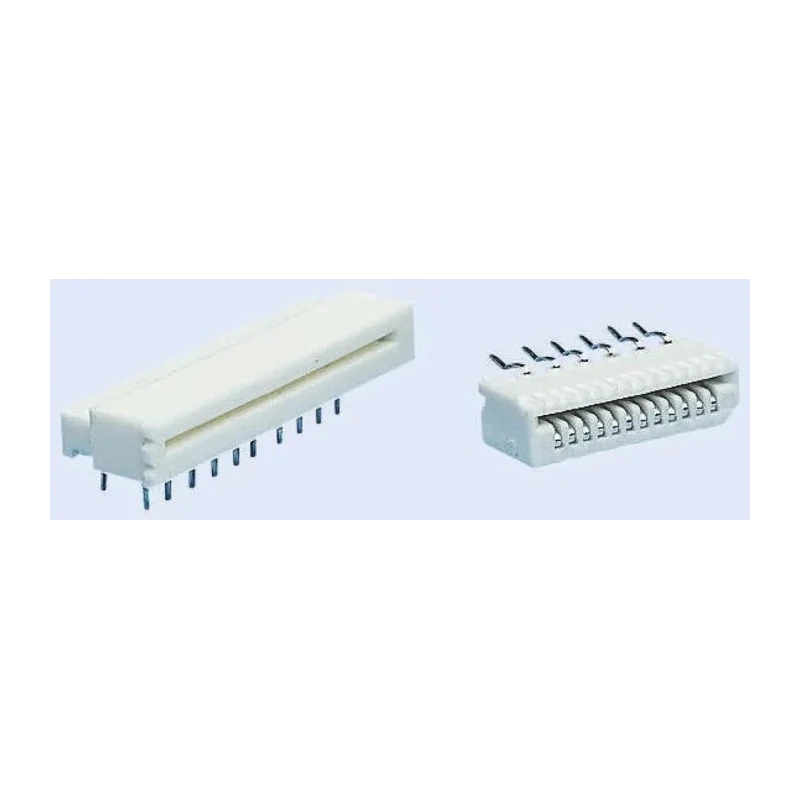

Molex 1.25 mm Pitch 16 Way Straight Female ZIF Through Hole FPC Connector, Solder, 200V 1A 5597 Series 39-53-2165
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features a space-saving design with a 1.25 mm pitch ideal for tight packaging applications.
- Constructed with phosphor bronze contacts plated with tin over nickel to ensure reliable conductivity.
- Equipped with a slide type actuator providing easy insertion and secure connection.
- Rated for 200V and 1A current with a locking mechanism for secure engagement.
- Operable within temperature range of -20°C to 80°C for varied environments.
- Female connector gender with solder termination suitable for through hole mounting.
- Zero insertion force (ZIF) technology minimizes wear during repeat cycling.
- Single row configuration with 16 contacts for comprehensive connectivity.
Product Description
Molex 39-53-2165 16 Way Straight Female FPC Connector is a high-quality ZIF PCB through hole connector designed with a 1.25 mm pitch to optimize space in compact electronic assemblies.
This Easy-On FFC/FPC connector features phosphor bronze contacts with tin over nickel plating, delivering durable conductivity and corrosion resistance. The polyethylene terephthalate housing enhances mechanical stability and electrical insulation.
Equipped with a slide type actuator acting as a locking mechanism, this connector allows for secure and easy insertion of the flexible printed circuit (FPC), minimizing insertion force and prolonging connector life through repeat cycles. Its straight orientation and through hole mount type support convenient assembly on printed circuit boards.
Rated for a maximum current of 1A and voltage of 200V, the connector operates reliably between -20°C and 80°C, making it suitable for a range of industrial and automotive electronics environments. The 5597 series is known for its space-saving design and staggered solder tails enhancing solder joint strength.
Typical applications include automotive electronic modules, industrial control units, and compact electronic devices where reliable and repeatable connections are essential. Space-saving 1.25 mm pitch design suitable for compact electronics.
Phosphor bronze contacts with tin over nickel plating for durability. Slide type actuator for zero insertion force (ZIF) and secure locking. Straight connector orientation with through hole mount for PCB assembly. Operational temperature range from -20°C to 80°C.
Current rating of 1A and voltage rating of 200V. Housing made from polyethylene terephthalate for stability and insulation. Single row with 16 contacts for effective connectivity. Explore more electronic connectors and components in the FPC Connectors category on EnvMart for diverse industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum voltage of 200V and a maximum current of 1A.
This model features a pitch of 1.25 mm, making it suitable for compact electronic applications.
It supports through hole mounting, which is ideal for assembly on printed circuit boards.
The housing is made from polyethylene terephthalate, and the contacts are constructed from phosphor bronze with tin over nickel plating for reliable conductivity.
It operates reliably within a temperature range of -20°C to 80°C.
This connector has a total of 16 contacts arranged in a single row configuration.
It features a zero insertion force (ZIF) mechanism, which minimizes wear during repeated insertions and ensures secure connections.
It uses solder termination, making it suitable for permanent connections on printed circuit boards.
Typical applications include automotive electronic modules, industrial control units, and compact electronic devices requiring reliable connections.
The connector has a straight orientation, facilitating easy integration into electronic assemblies.
This model belongs to the 5597 series, known for its space-saving design and effective connectivity.
The country of origin for this connector is India.
