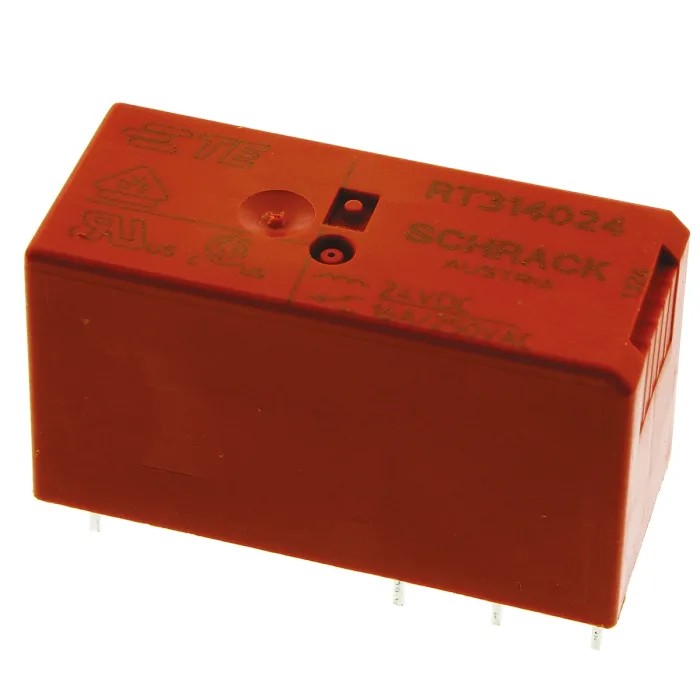

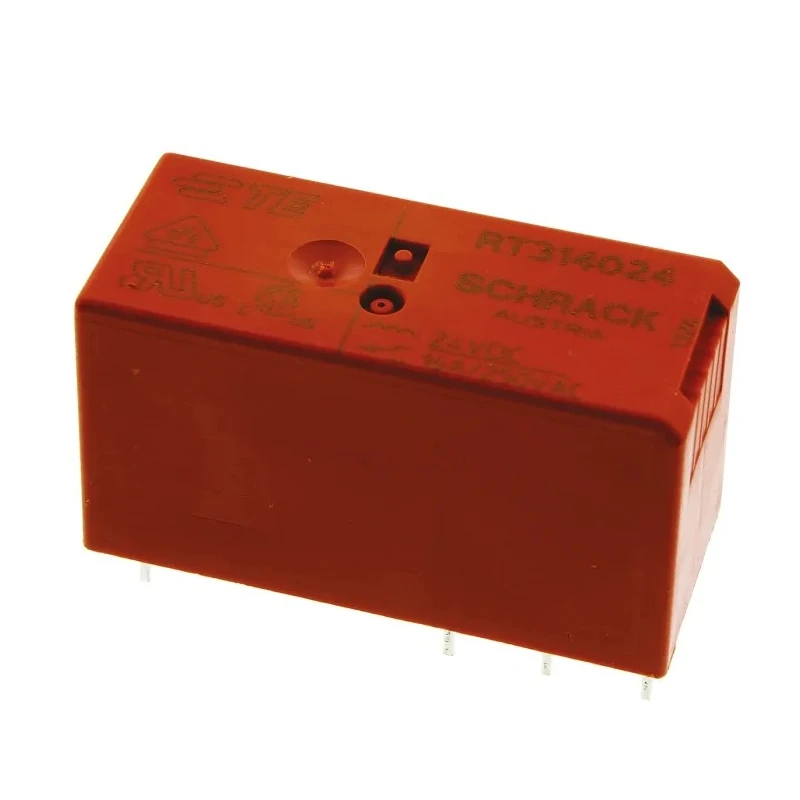

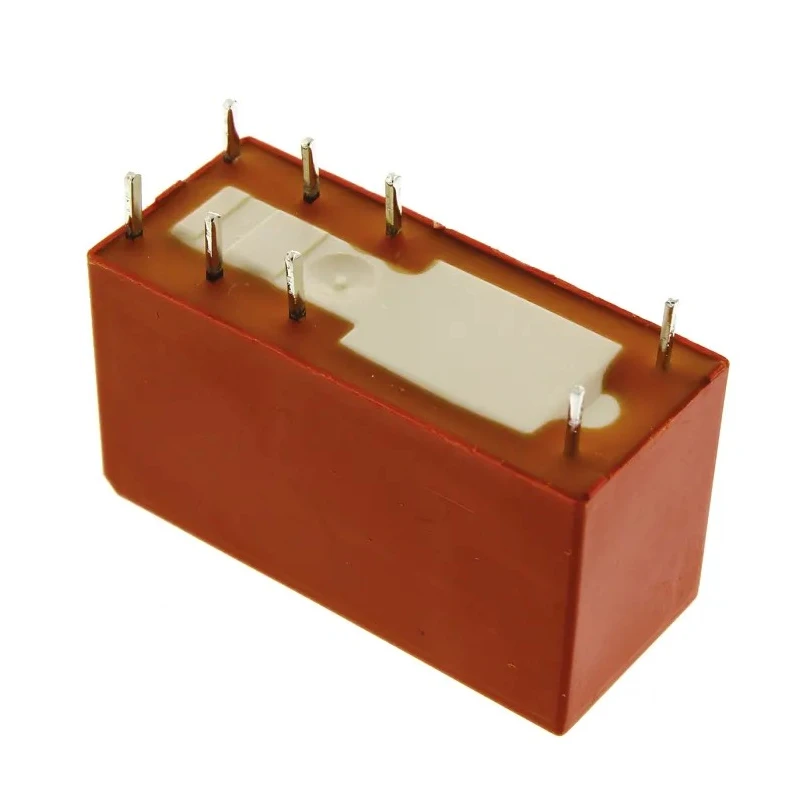

TE Connectivity 24V DC Coil, 16A Switching Current SPDT PCB Power Relay RT314024 9-1393239-8
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314024 9-1393239-8 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | VDE, cULus |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Operates with a 24V DC coil voltage ensuring efficient power control.
- Features a switching current capacity of 16A for load demands.
- Silver Nickel Alloy contact material ensures durability and reliable conductivity.
- Compact PCB mount design with solder-type terminals for easy installation.
- Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
- Coil resistance of 1.4 kΩ with low coil power consumption of 400 mW.
- Compliance with VDE and cULus standards guarantees product safety and quality.
- Cadmium-free contacts support environmentally friendly design requirements.
Product Description
TE Connectivity RT314024 9-1393239-8 PCB Power Relay is a high-quality industrial relay featuring a 24V DC coil and SPDT (single pole double throw) contact configuration. Designed for reliable power switching applications, it supports a switching current of 16A and switching power up to 4 kVA, making it suitable for demanding electrical control systems.
Constructed with silver nickel alloy contacts, this relay provides enhanced conductivity and long service life while maintaining cadmium-free contact surfaces to ensure environmental compliance. The coil resistance of 1.4 kΩ and coil power rating of 400 mW contribute to efficient operation with minimal energy consumption.
The relay is designed for PCB mounting with solder-type terminals and features compact dimensions (29mm length, 12.7mm width, and 15.7mm height) allowing integration into space-constrained applications. It operates reliably within a temperature range of -40°C to 85°C, suitable for harsh industrial environments.
Certified to VDE and cULus standards, it offers assurance of quality and safety. Its non-latching RT1 series design includes wave flow soldering compatibility and ensures a minimum creepage and clearance distance between contacts and coil of ≥10/10 mm, enhancing electrical isolation and performance.
The TE Connectivity RT314024 9-1393239-8 is widely used in industrial automation including boiler control, timers, garage door openers, POS automation, and interface modules, addressing diverse control needs in commercial and industrial sectors.
Operates with a 24V DC coil voltage ensuring efficient power control. Features a switching current capacity of 16A for load demands. Silver Nickel Alloy contact material ensures durability and reliable conductivity. Compact PCB mount design with solder-type terminals for easy installation.
Wide operating temperature range from -40°C to 85°C suitable for diverse environments. Coil resistance of 1.4 kΩ with low coil power consumption of 400 mW. Compliance with VDE and cULus standards guarantees product safety and quality.
Dimensions are 29mm length, 12.7mm width, and 15.7mm height for space-efficient use. Cadmium-free contacts support environmentally friendly design requirements. Ideal for use in boiler control, timers, garage door control, POS automation, and interface modules.
Choose TE Connectivity power relays for trusted performance in your electrical and automation projects. Browse our Power Relay category for more premium products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this relay is 24V DC, ensuring efficient power control.
This model has a maximum switching current capacity of 16A, suitable for various load demands.
The relay has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for compact installation.
It features a single pole double throw (SPDT) contact configuration, which is versatile for different applications.
The relay operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The coil resistance is 1.4 kΩ, contributing to its efficient operation and low power consumption.
The contacts are made of silver nickel alloy, which enhances conductivity and ensures reliable performance.
This model features solder-type terminals, designed for easy installation on a PCB.
It complies with VDE and cULus standards, ensuring product safety and quality.
The coil power consumption is 400 mW, which is relatively low for efficient operation.
This relay is widely used in applications such as boiler control, timers, garage door openers, and POS automation.
The maximum switching AC voltage for this relay is 400V AC, allowing it to handle significant electrical loads.
