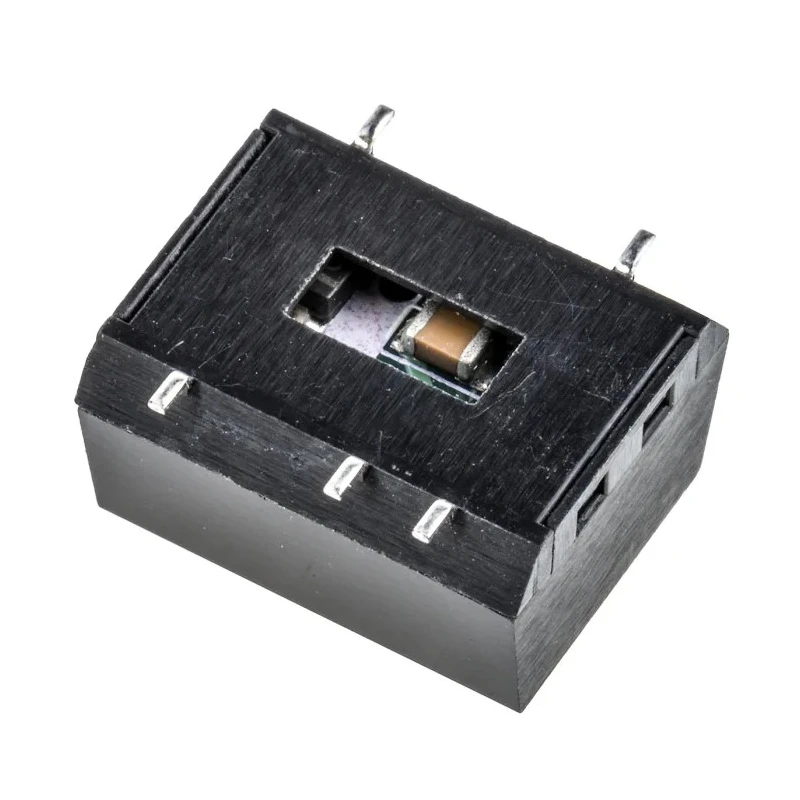

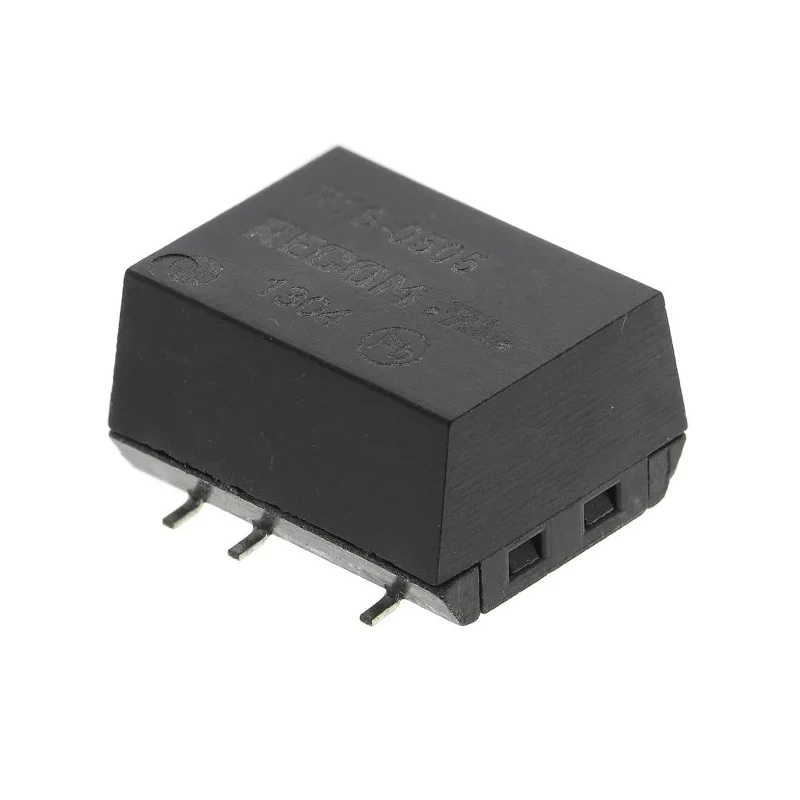

Recom DC/DC Converter 5V DC Output 200 mA, 5.5V to 4.5V DC Input, 1W Surface Mount R1S-0505

Recom R1S-0505 DC/DC Converter is a high-performance surface mount isolated converter designed to provide a stable 5V DC output at 200 mA from input voltages ranging between 4.5V and 5.5V DC. With a maximum output power of 1W, this converter offers an efficient energy solution for electronic and embedded systems requiring compact form factor power conversion.

This converter features a single output with an isolation voltage of 1kV DC, providing safety against electrical noise and ground loops in sensitive applications. The device operates efficiently with up to 84% efficiency, reducing heat dissipation and improving system reliability.

Manufactured as part of the R1S series, the product is designed with a surface mount package, 10 pins, and has physical dimensions of 12.75 mm in length and 6.7 mm in depth, making it ideal for space-constrained PCB layouts. Reliable operation is ensured from -40°C to 100°C ambient temperature without power derating, supporting use in industrial and commercial environments.

Additional features include short circuit protection and an unpotted open frame design that allows full power delivery at maximum temperature. The converter is compliant with UL60950-1 safety standards and is recognized by CB, CSA, and UL certification bodies, making it suitable for high-quality electronic designs.

Provides isolated DC/DC voltage conversion with 1kV DC isolation voltage. Surface mount type with 10 pins and compact dimensions for space-saving designs. High efficiency of up to 84% ensures low power loss in operation.

Operates reliably from -40°C up to 100°C ambient temperature. Unregulated, single output converter suitable for embedded power applications. Short circuit protection enhances device and system safety. Encapsulated open frame type converter adapted for industrial and electronic component use.

Compliance with UL60950-1 and recognized by CB, CSA, UL standards.

This DC/DC Converter is widely used in industrial, commercial, and consumer electronics for power supply stabilization, reducing noise interference, and protecting sensitive circuits. Its compact surface mount design makes it ideal for automated PCB assembly, offering efficient and reliable voltage conversion.

Explore more precise power supply solutions with Recom components available at EnvMart for your electronic design requirements.
