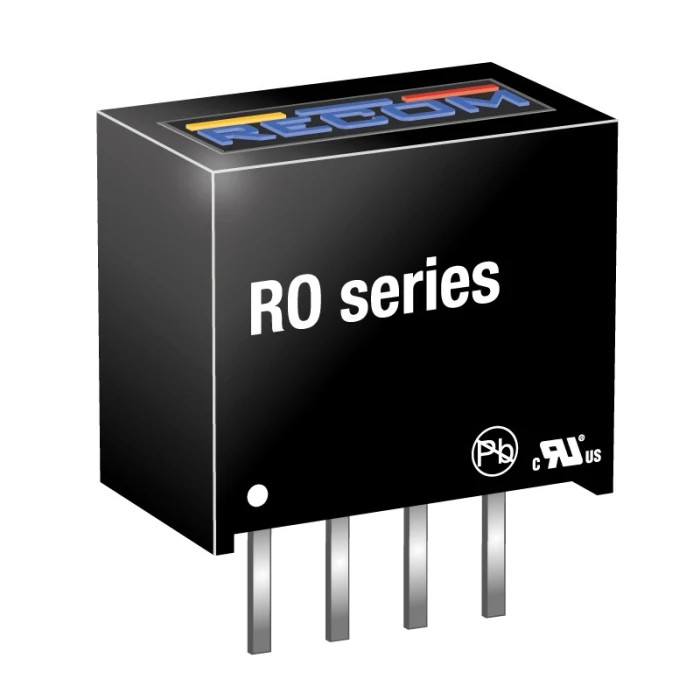

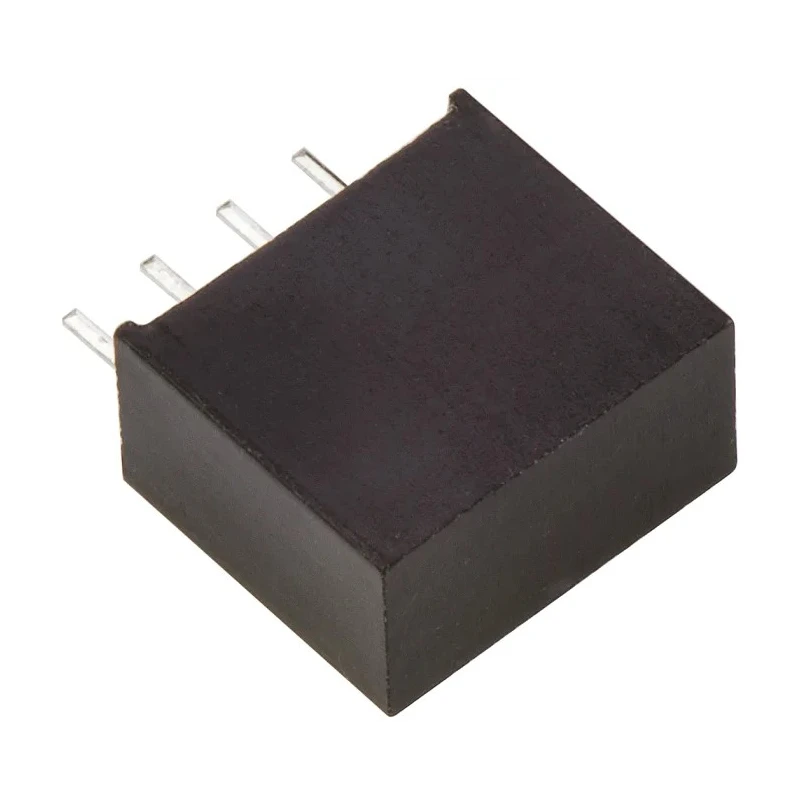

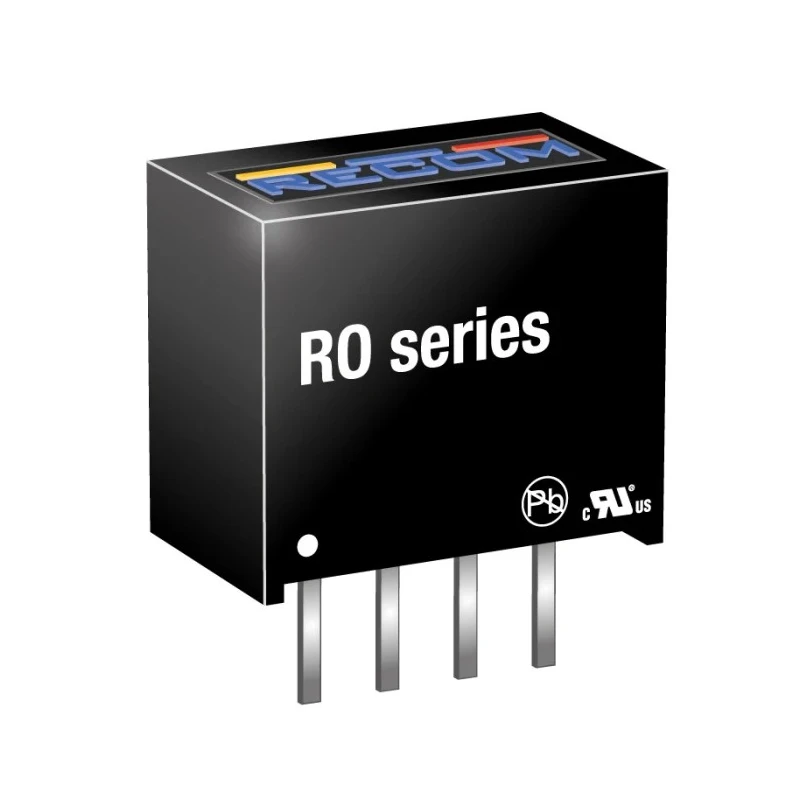

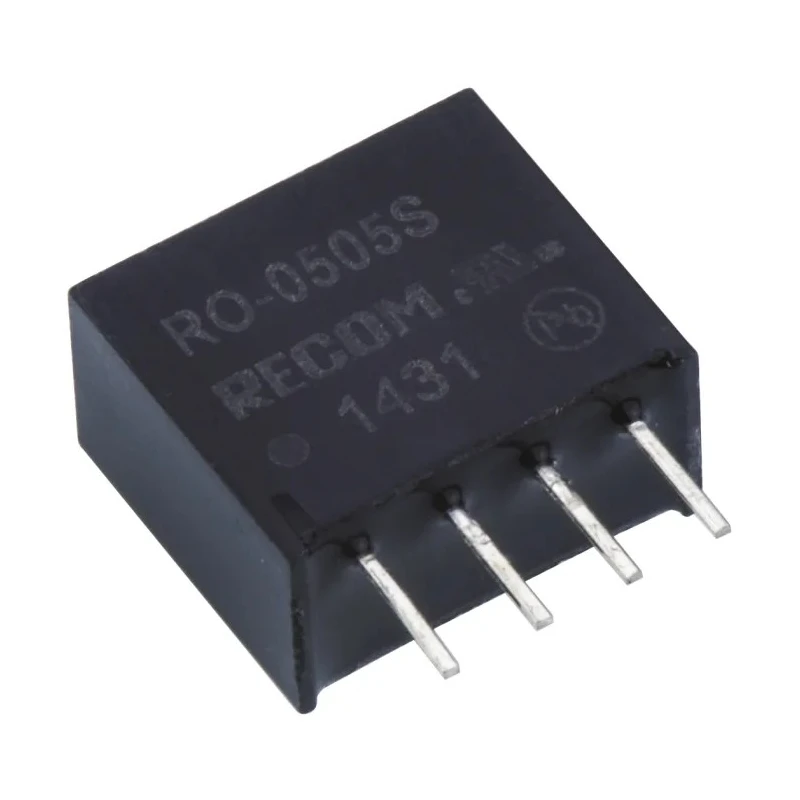

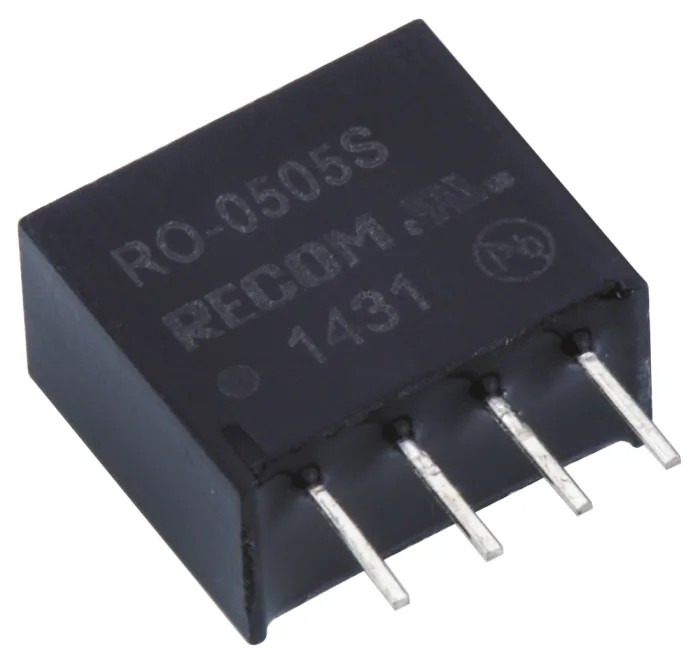

Recom DC/DC Converter SIP Package Through Hole 1W 5V Output 200mA 4.5-5V Input RO-0505S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RO DC/DC Converter, 5V dc/ 200 mA, 5V dc Inp |
| Brand | Recom |
| Efficiency | 80% |
| Length | 11.5mm |
| Model | RO-0505S |
| Depth | 10mm |
| Gross Weight | 1.4g |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | RO |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 200000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | CSA, IEC, UL |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
Key Features
- Provides a stable 5V DC output from 4.5 to 5.5V DC input voltage range.
- Delivers output current up to 200mA with 1W maximum power output.
- Features a through-hole SIP package for easy PCB mounting.
- Operates efficiently at up to 80% efficiency to reduce energy loss.
- Wide operating temperature range from -40°C to +85°C for harsh environmental tolerance.
- Provides isolation voltage of 1kV DC between input and output for enhanced safety.

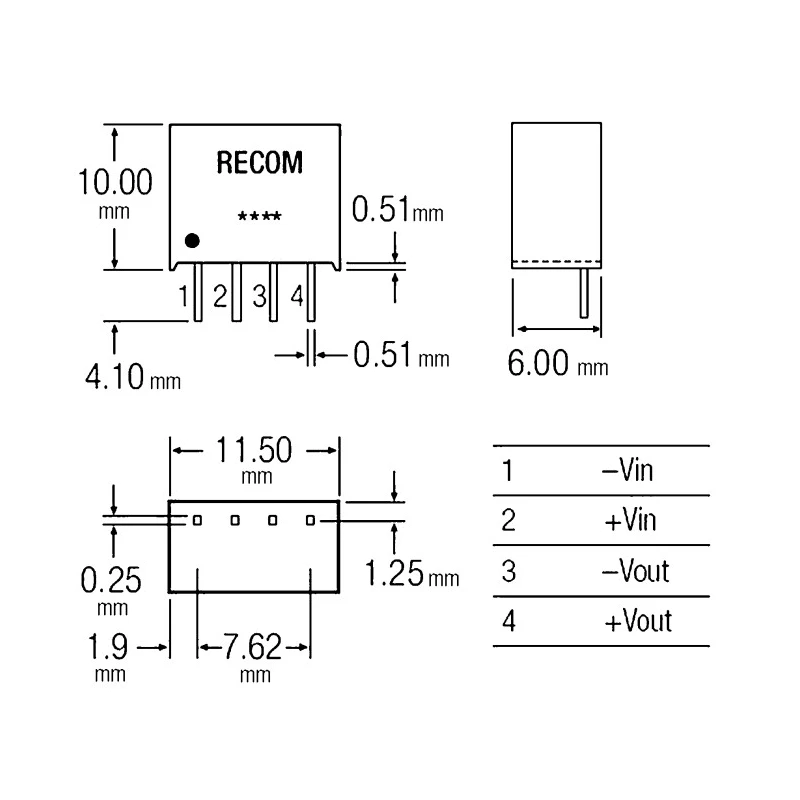

- Compact dimensions of 11.5mm length, 6mm width, and 10mm depth for space-saving design.
- Ripple and noise maintained at 100mV peak-to-peak for reliable signal quality.
Product Description
Recom RO-0505S is a high-quality DC/DC Converter designed to provide a stable 5V DC output with an output current of 200mA from a low input voltage range of 4.5 to 5.5V DC. Packaged in a through-hole SIP format, it offers convenient mounting on printed circuit boards, suitable for compact and dense electronic designs.
The converter features an 80% efficiency rating, minimizing power loss during conversion and optimizing energy use for sensitive electronic equipment. It operates reliably across a wide temperature range from -40°C up to 85°C, making it well-suited for use in harsh environments and industrial applications.
With an isolation voltage of 1kV DC between input and output, safety is enhanced by preventing electrical hazards. The ripple and noise are tightly controlled to 100mV peak-to-peak, ensuring clean power output critical for precision electronics such as digital cameras, gaming systems, HVAC controls, and household appliances.
Its compact form factor (11.5 x 6 x 10 mm) allows easy integration into space-constrained setups. The converter boasts a Mean Time Between Failures (MTBF) of 200,000 hours, evidencing durability and long service life. Compliance with CSA, IEC, and UL standards underscores its quality and reliability for commercial and industrial use.
Stable 5V output voltage with 200mA maximum current delivery. Wide input voltage range of 4.5 to 5.5V DC for flexible system integration. Efficient power conversion at up to 80% efficiency reduces heat generation. Highly reliable through-hole SIP package for straightforward PCB mounting.
Wide operating temperature tolerance from -40°C to +85°C for robustness. Electrical isolation of 1kV DC ensures operator safety and equipment protection. Low ripple noise improves performance of sensitive electronics. Compact design suitable for high-density applications.
Long product lifetime supported by MTBF of 200,000 hours. Meets international safety and quality certifications CSA, IEC, and UL.
This Recom DC/DC Converter is ideal for industrial, laboratory, and commercial electronic applications requiring reliable low-voltage power regulation. Its combination of compactness, reliability, and efficiency make it a practical choice for design engineers and equipment manufacturers. Explore more precision electronic components in the Recom series on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V with a maximum output current of 200mA.
It operates within an input voltage range of 4.5V to 5.5V DC.
The efficiency of this converter is rated at up to 80%, which helps minimize power loss during operation.
The isolation voltage provided by this unit is 1kV DC, enhancing safety during operation.
This model has compact dimensions of 11.5mm in length, 6mm in width, and 10mm in depth.
It operates reliably in a wide temperature range from -40°C to +85°C.
The ripple and noise are maintained at 100mV peak-to-peak, ensuring reliable signal quality.
This converter features a through-hole SIP package, making it easy to mount on printed circuit boards.
The MTBF for the RO-0505S is 200,000 hours, indicating a long service life.
It meets international safety and quality standards, including CSA, IEC, and UL certifications.
This model has a single output, making it suitable for various applications requiring low-voltage power regulation.
It is ideal for use in industrial, laboratory, and commercial electronic applications that require reliable low-voltage power regulation.
