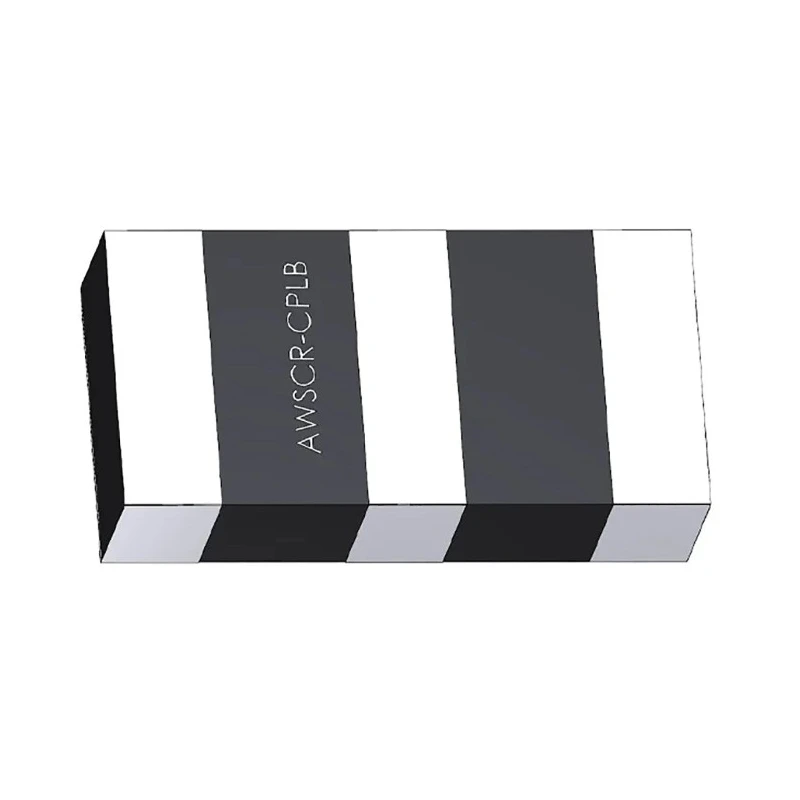

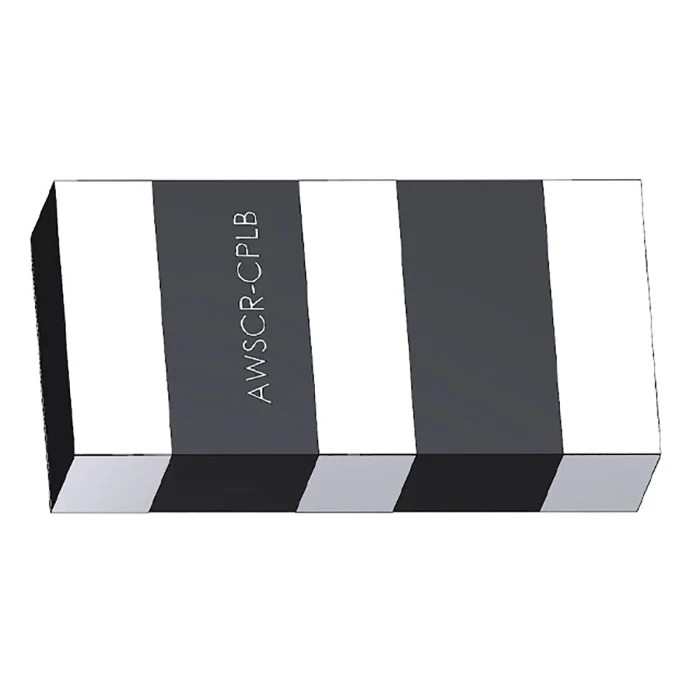

Abracon Ceramic Resonator 2 MHz 47 pF 3-Pin Surface Mount Tape & Reel 6mm x 3mm x 1.8mm AWSCR-2.00CPLB-C47-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.8mm |
| Length | 6mm |
| Model | AWSCR-2.00CPLB-C47-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 47pF |
| Resonance Frequency | 2MHz |
| Resonance Resistance | 100Ω |
Key Features
- Resonance frequency of 2 MHz with ±0.5% frequency tolerance.
- Load capacitance rated at 47 pF for precise circuit timing.
- Surface mount type with tape and reel packaging ensuring easy automated assembly.
- Compact size with dimensions 6mm length, 3mm width, and 1.8mm height.
- Operating temperature range from -40°C to 125°C suitable for extended industrial applications.
- Termination type is solder, providing reliable electrical contact.
- Resonance resistance is 100 Ω for optimized signal integrity.
- RoHS compliant and manufactured in China.
Product Description
The Abracon AWSCR-2.00CPLB-C47-T4 ceramic resonator is a precision electronic component designed for surface mount applications requiring stable frequency reference at 2 MHz. Its 3-pin configuration and tape & reel packaging facilitate automated PCB assembly.
Featuring a resonance frequency of 2 MHz with a frequency tolerance of ±0.5%, this resonator provides accurate timing essential for metering systems, remote control devices, microprocessor circuits, industrial control systems, and electric appliances.
The device offers a load capacitance of 47 pF and resonance resistance of 100 Ω, supporting consistent signal performance. It maintains frequency stability within ±0.4% and minimal frequency ageing of ±0.1%, ensuring long-term reliability.
Operating across a broad temperature range from -40°C to 125°C, it suits demanding industrial environments. The solder termination guarantees strong electrical connectivity, while the compact dimensions of 6mm length, 3mm width, and 1.8mm height optimize PCB space.
Manufactured under RoHS standards in China, the AWSCR-2.00CPLB-C47-T4 is an industry-standard footprint component offering low resonance impedance and built-in capacitance options. Its packaging in tape & reel format is compatible with automated assembly processes.
Resonance frequency of 2 MHz with ±0.5% tolerance. Load capacitance of 47 pF ensures accurate timing. Surface mount device with 3-pin configuration. Industrial-grade operating temperature range from -40°C to 125°C. Frequency stability and ageing suitable for reliable long-term use.
Solder termination for secure mounting. Compact physical size ideal for space-constrained PCB designs. RoHS compliant for environmentally responsible manufacturing. Tape & reel packaging for automated pick-and-place assembly.
This Ceramic Resonator is widely used in electronic design for metering, industrial control, and microprocessor-based applications requiring stable oscillation frequency. Explore our Electronics Components category for more Abracon components and similar products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 2 MHz with a frequency tolerance of ±0.5%.
It has a load capacitance rated at 47 pF, which ensures precise circuit timing.
The dimensions of this unit are 6mm in length, 3mm in width, and 1.8mm in height.
This model operates within a temperature range of -40°C to 125°C, making it suitable for industrial applications.
It is packaged in tape & reel format, which facilitates automated assembly processes.
This unit features a solder termination type, providing reliable electrical contact.
The resonance resistance is 100 Ω, which optimizes signal integrity.
Yes, it is RoHS compliant, ensuring it meets environmental standards for manufacturing.
This model has a pin count of 3, suitable for surface mount applications.
It belongs to the AWSCR-CPLB series, which includes various ceramic resonators.
It is widely used in metering systems, remote control devices, microprocessor circuits, and industrial control systems.
It maintains frequency stability within ±0.4% and minimal frequency ageing of ±0.1%, ensuring long-term reliability.
