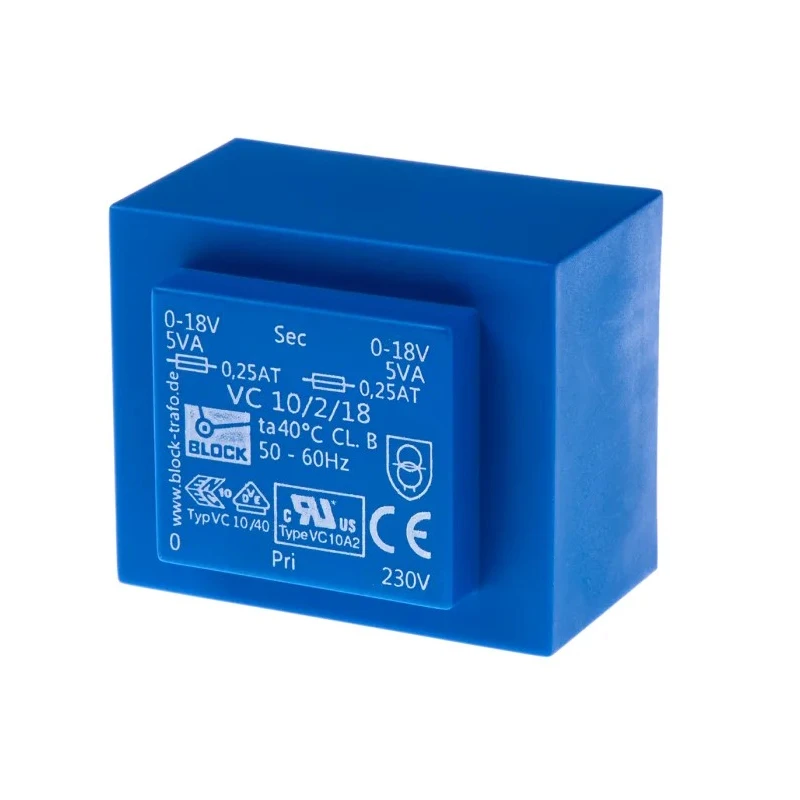

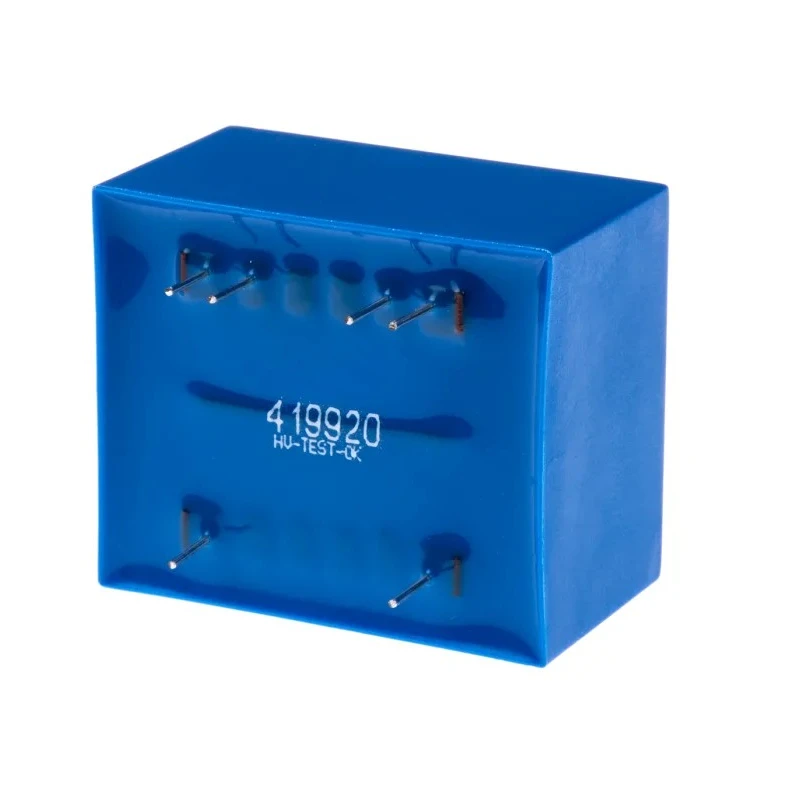

Block PCB Transformer 2 x 18 V AC 230 V AC Primary 10VA Pin Mount VC 10/2/18

Block VC 10/2/18 PCB Transformer is a pin-mount transformer designed specifically for PCB applications requiring 2 x 18 V AC secondary outputs and a 230 V AC primary voltage with a power rating of 10VA. This transformer series is renowned for its robust construction with vacuum resin moulding conforming to UL94-V0 rating which ensures electrical safety and resistance to fire.

It features low inter-winding capacitance, which minimizes the noise and enhances the performance in electronic circuits. The transformer is designed for operating frequencies between 50Hz and 60Hz, suitable for most industrial and commercial power systems.

The transformer demonstrates an operating efficiency of approximately 74%, which contributes to minimal energy losses and improved reliability in continuous operation environments. The maximum permissible operating temperature is 104°F, accommodating typical industrial ambient conditions.

Approvals from VDE, IEC 61558-2-6, UL 5085-1/-2, CSA 22.2 No.66, and EN provide assurance of compliance with international safety and performance standards. Additional features include extra fixing points for secure PCB mounting, and rigorous 100% electrical and flash testing to guarantee product reliability.

Manufactured in Germany, the VC 10/2/18 transformer offers quality assurance for demanding industrial, laboratory, and commercial electronics applications such as power supplies, control systems, and other electronic equipment requiring reliable PCB-mounted transformers.

Rated power of 10VA for compact power conversion. Pin mount type for reliable PCB attachment. Vacuum resin moulded to UL94-V0 fire safety standard. Certified to VDE, IEC, UL, CSA, and EN standards for safety and performance.

Low inter-winding capacitance reducing electrical noise. Low radiated noise ideal for sensitive electronics applications. Maximum operating temperature of 104°F. Operating frequency range 50Hz to 60Hz. Manufactured in Germany with stringent quality control.
