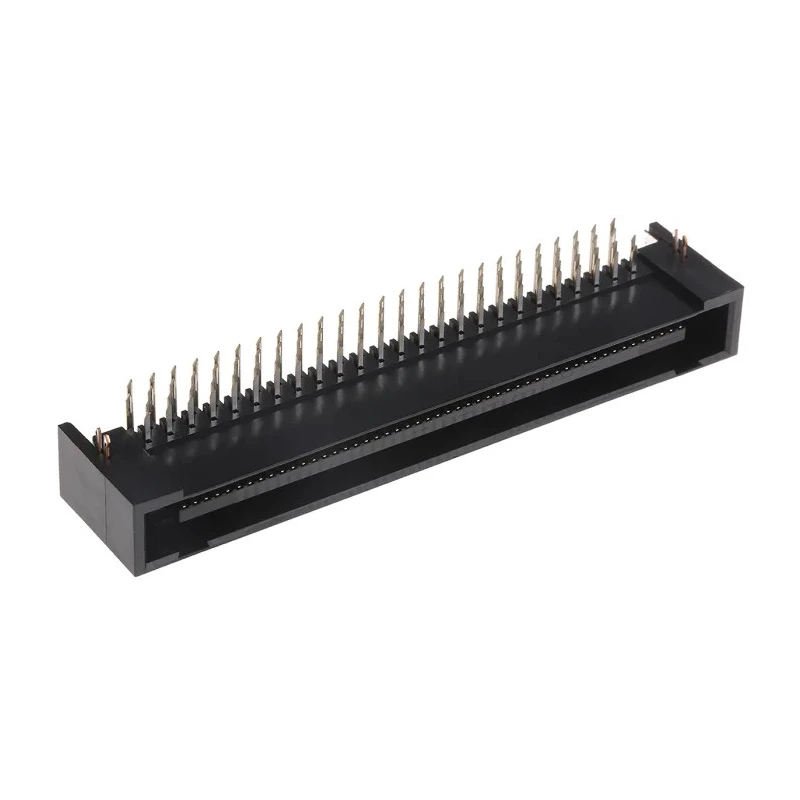

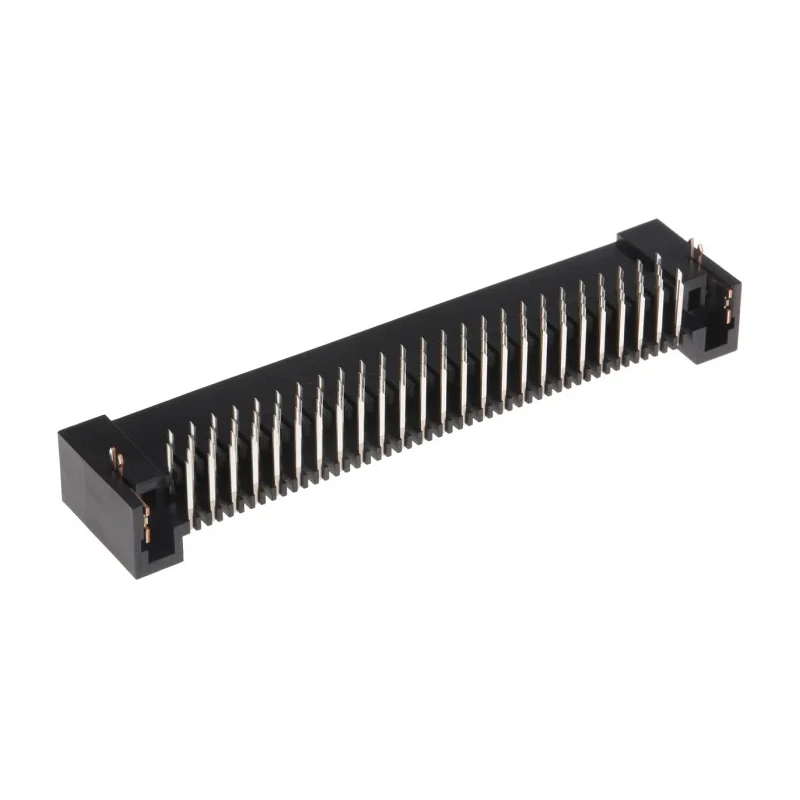

JAE TX25 Series Right Angle Through Hole PCB Header 100 Contacts 1.27 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | JAE |
| Orientation | Right Angle |
| Current | 1A |
| Model | TX25 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | TX25 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Right angle orientation provides efficient PCB connections.
- Shrouded housing ensures reliable connection protection.
- Constructed with polybutylene terephthalate housing material.
- Contact plating with gold on copper alloy for superior conductivity.
- Supports operating temperatures from -40°C to 80°C.
- Designed for through-hole mounting, enhancing mechanical stability.
- Rated for 1A current and 500V voltage applications.
- Suitable for board-to-board connector system applications.
Product Description
JAE TX25-100P-LT-H1E is a right angle through hole PCB header designed for reliable and stable connections in electronic assemblies. Featuring 100 gold-plated contacts with a 1.27 mm pitch arranged in two rows, this shrouded connector offers robust protection against mechanical interference and ensures long-lasting performance in demanding conditions.
The header's polybutylene terephthalate housing material contributes to its durable construction, while gold plating on copper alloy contacts ensures excellent electrical conductivity and corrosion resistance. Rated for a current of 1 ampere and a voltage of 500 volts, it operates efficiently between -40°C and 80°C, catering to a broad range of industrial, commercial, and manufacturing applications.
The right angle orientation with through-hole mounting type provides solid mechanical stability, ideal for board-to-board connections in complex circuit designs. The termination type is solder, supporting secure and long-term electrical joints.
Right angle orientation for space-saving PCB layout. Shrouded design offers enhanced connector protection. Gold plating on copper alloy contacts enhances conductivity and reliability. Operates reliably in temperature range from -40°C to 80°C.
Polybutylene terephthalate housing material provides mechanical strength. Supports 1A current and 500V voltage ratings. Through-hole mounting type for mechanical robustness. Designed for board-to-board connector systems.
Ideal for industrial, electronics manufacturing, and prototyping applications. Ensures stable electrical engagement with click action design.
This product is part of the TX25 series renowned for its long electrical engagement length and non-pin type contacts that withstand twisting forces during mating and unmating. The housing is stable with polarizing keys, making it suitable for rack and panel connector applications in various industrial and laboratory environments.
Additionally, the product comes supplied in a tray, ready for insertion into production machinery, enhancing assembly efficiency. Explore the JAE TX25 Series category on EnvMart for a wide range of PCB header connectors and browse related products by JAE for comprehensive electronics component solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features 100 contacts arranged in 2 rows with a pitch of 1.27 mm.
It is rated for a maximum voltage of 500 volts.
This model supports a current rating of 1 ampere.
The housing is made of polybutylene terephthalate, and the contacts are copper alloy with gold plating.
It can operate efficiently within a temperature range of -40°C to 80°C.
It is designed for through-hole mounting, which enhances mechanical stability.
The termination type for this header is solder.
This model has a right angle orientation, which is beneficial for space-saving PCB layouts.
Yes, it is specifically designed for board-to-board connector systems.
The shrouded design provides enhanced protection against mechanical interference and improves connection reliability.
The country of origin for this model is India.
It is suitable for a range of applications in industrial, electronics manufacturing, and prototyping.
