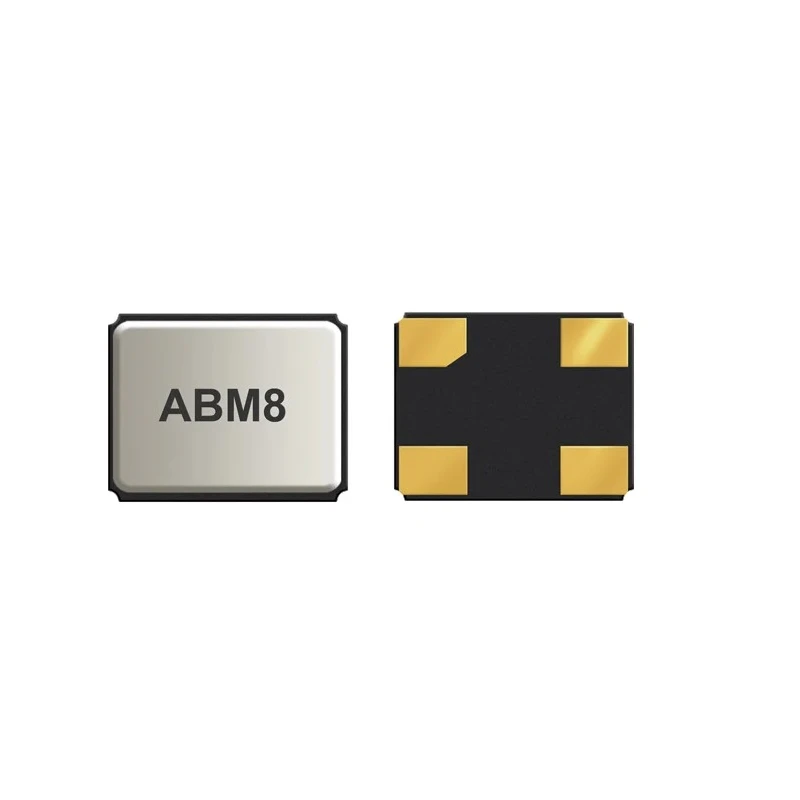

Abracon 16 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.2mm x 2.5mm x 0.8mm ABM8-16.000MHz-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8-16.000MHz-D4Y-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 70Ω |
Key Features
- Standard frequency of 16 MHz ensures precise oscillation control.
- Surface mount design with 4 pins fits compact PCB layouts.
- Load capacitance is 18 pF, suitable for most oscillator circuits.
- Series resistance of 70 Ω to minimize signal loss.
- Operating temperature ranges from -40°C to 85°C for diverse environments.
- Seam sealed package design enhances reliability and durability.
- Compliance with RoHS environmental standards ensures safe use.
- Ideal for modems, communication equipment, test instruments, and wireless applications.
Product Description
Abracon ABM8-16.000MHz-D4Y-T is a 16 MHz Crystal Unit specifically engineered for surface mount applications requiring precise frequency control and compact form factors. This low profile device measures 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height, making it well-suited for high density PCB assemblies where space constraints are critical.
The crystal unit offers a frequency tolerance and stability of ±30 ppm, ensuring stable oscillation and reliable device operation even under variable environmental conditions. Its load capacitance rating of 18 pF is compatible with most oscillator circuit designs. Additionally, the series resistance of 70 Ω is optimized to reduce signal attenuation while maintaining high accuracy.
Operating over a wide temperature range from -40°C to 85°C, this crystal is capable of functioning in demanding industrial, telecommunications, and consumer electronics settings. The device features a seam sealed package which protects internal components from contaminants, enhancing device longevity and reliability.
The product complies with RoHS environmental standards, reflecting its suitability for modern eco-conscious manufacturing. Standard frequency of 16 MHz for precision timing. Surface Mount Technology 4-pin package for compact, low profile applications.
Low height of 0.8 mm suitable for thin equipment. Tight frequency tolerance and stability ensure consistent performance. Wide operating temperature range of -40°C to 85°C. Seam sealed package for high reliability. RoHS compliant, environmentally friendly.
Applicable for modems, communication and test equipment, PMCIA, and wireless applications.
This crystal unit is optimal for various industrial, telecommunications, laboratory, and consumer electronics applications where precise frequency reference and space-saving design are required. Explore similar high quality Abracon components and Crystal Units in EnvMart’s Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz, which ensures precise oscillation control.
This model measures 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height, making it suitable for compact PCB layouts.
The load capacitance rating for this crystal unit is 18 pF, which is compatible with most oscillator circuit designs.
The series resistance of this crystal unit is 70 Ω, which helps to minimize signal loss.
It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
The crystal unit is packaged in a tape and reel format, which is common for surface mount components.
This model features a 4-pin configuration, designed for surface mount applications.
It complies with RoHS environmental standards, ensuring safe use in electronic applications.
This crystal unit is ideal for modems, communication equipment, test instruments, and wireless applications.
The package type is surface mount, which allows for low-profile designs in compact spaces.
The country of origin for this crystal unit is India.
This model belongs to the ABM8 series, which is designed for precise frequency control in surface mount applications.
