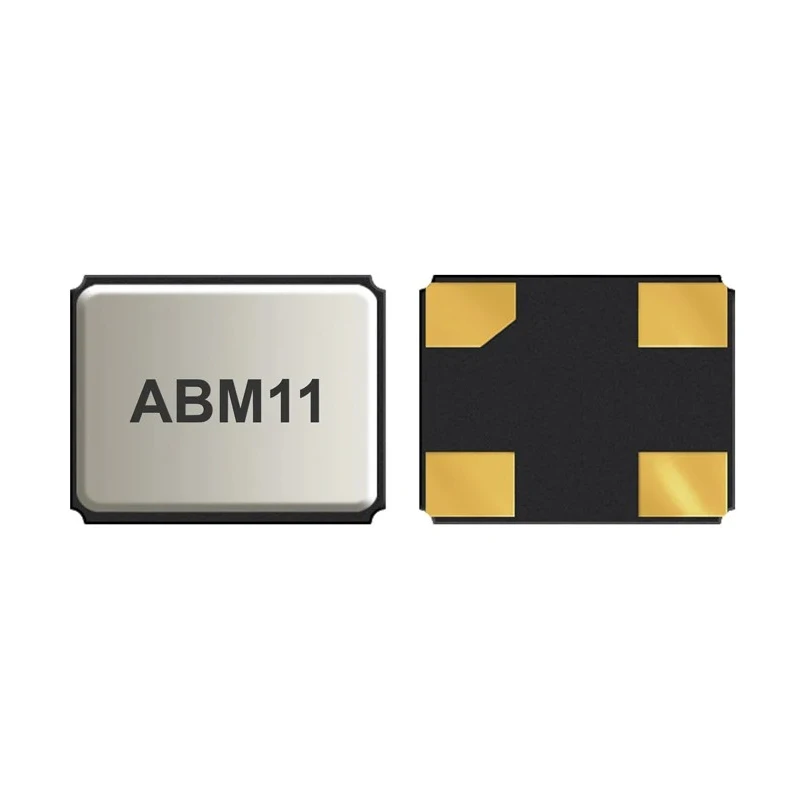

Abracon 25 MHz Crystal Unit Surface Mount 4-Pin 2 x 1.6 x 0.59 mm ABM11-25.000MHz-D7X-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.59mm |
| Length | 2mm |
| Model | ABM11-25.000MHz-D7X-T |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ABM11 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 25MHz |
| Load Capacitance | 10pF |
| Series Resistance | 100Ω |
Key Features
- Surface mount package with 2.0 x 1.6 x 0.59 mm dimensions for compact PCB designs.
- 4-pin configuration ensures stable electrical connectivity.
- Load capacitance of 10 pF optimizes oscillation frequency.
- Seam sealed ceramic package with metal lid provides durability and precise performance.
- Operational temperature range from -40°C to 85°C allows use in varied environments.
- Series resistance of 100 Ω helps maintain signal integrity.
- RoHS compliant, ensuring adherence to environmental standards.
Product Description
The Abracon ABM11-25.000MHz-D7X-T Crystal Unit is designed for demanding electronic applications requiring precise frequency control. Featuring a standard frequency of 25 MHz and a frequency tolerance of ±15 ppm, this surface mount crystal unit is ideal for cellular telephones, pagers, communication equipment, test instruments, PCMCIA cards, and wireless devices.
Encased in a compact 2.0 x 1.6 x 0.59 mm ultra-miniature ceramic package with a metal lid, it offers enhanced durability and high precision reliability. The 4-pin surface mount configuration simplifies PCB integration and provides stable connectivity.
With a load capacitance of 10 pF and frequency stability of ±20 ppm, it ensures consistent oscillation frequency essential for high-density and sensitive electronics. The series resistance of 100 Ω further supports signal integrity and overall device performance.
This crystal unit operates efficiently over a broad temperature range from -40°C to 85°C, suitable for both commercial and industrial environments. It is RoHS compliant, aligning with latest environmental requirements for electronic components.
Surface mount package with small form factor for space-efficient circuit designs. Ideal for mobile communications and wireless applications requiring stable crystal oscillation. Robust ceramic construction ensures long-term reliability.
Packaging in tape and reel facilitates automated PCB assembly processes. 4-pin layout compatible with a variety of circuit board designs. Extended operating temperature range supports diverse environmental conditions. Complies with RoHS directives for environmental safety.
Series ABM11 product line ensuring standardized quality and performance.
This Abracon Crystal Unit is an essential component in industrial, commercial, and telecommunications equipment where precise frequency generation and stability are critical. For professionals seeking reliable and miniature crystal solutions, it fits well in diverse electronics manufacturing projects. Explore extensive electronics components and accessories at EnvMart for integrated industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crystal unit has dimensions of 2.0 mm in length, 1.6 mm in width, and 0.59 mm in height.
The standard frequency of this model is 25 MHz.
It has a load capacitance of 10 pF, which optimizes its oscillation frequency.
The operational temperature range is from -40°C to 85°C, making it suitable for various environments.
The series resistance of this crystal unit is 100 Ω, which helps maintain signal integrity.
This model is packaged in tape and reel, facilitating automated PCB assembly processes.
It features a surface mount type, which simplifies PCB integration.
The ABM11-25.000MHz-D7X-T is RoHS compliant, ensuring adherence to environmental standards.
It has a frequency tolerance of ±15 ppm, which is critical for precise frequency control.
This crystal unit is ideal for use in cellular telephones, pagers, communication equipment, and wireless devices.
This model is part of the ABM11 product series, ensuring standardized quality and performance.
This crystal unit features a 4-pin configuration, providing stable electrical connectivity.
