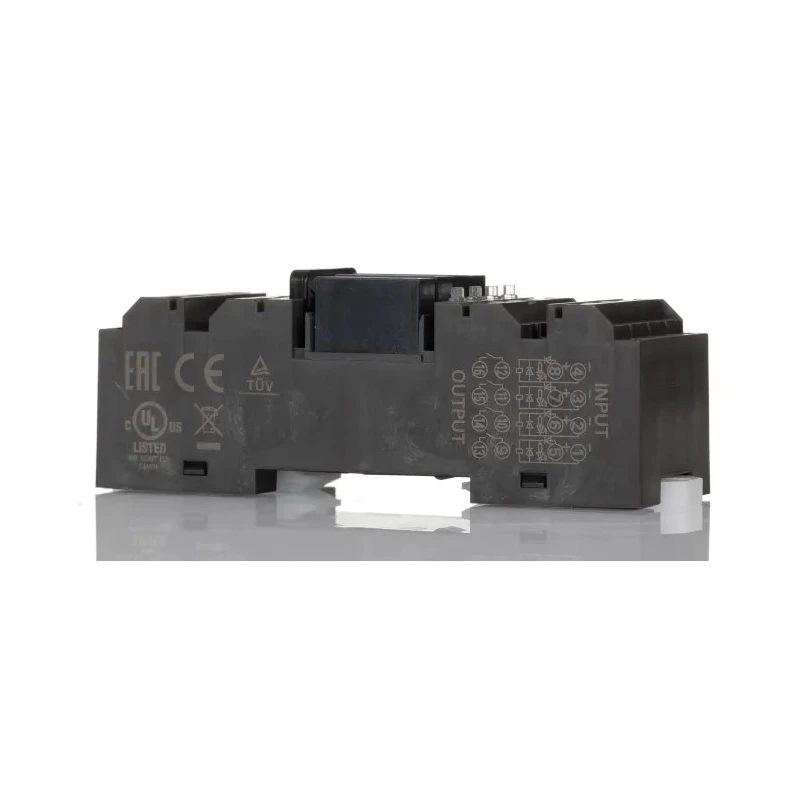

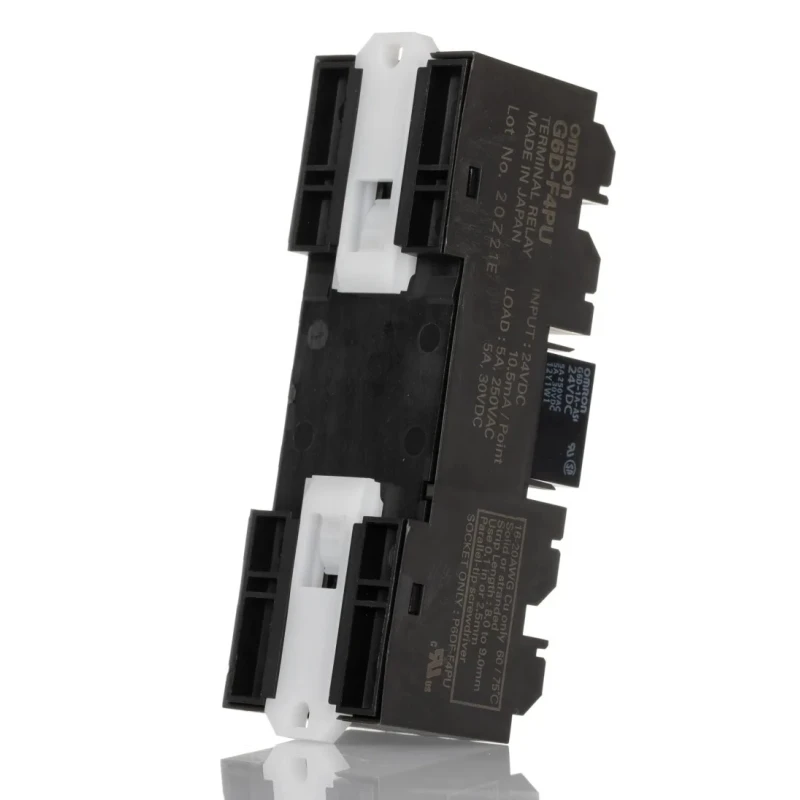

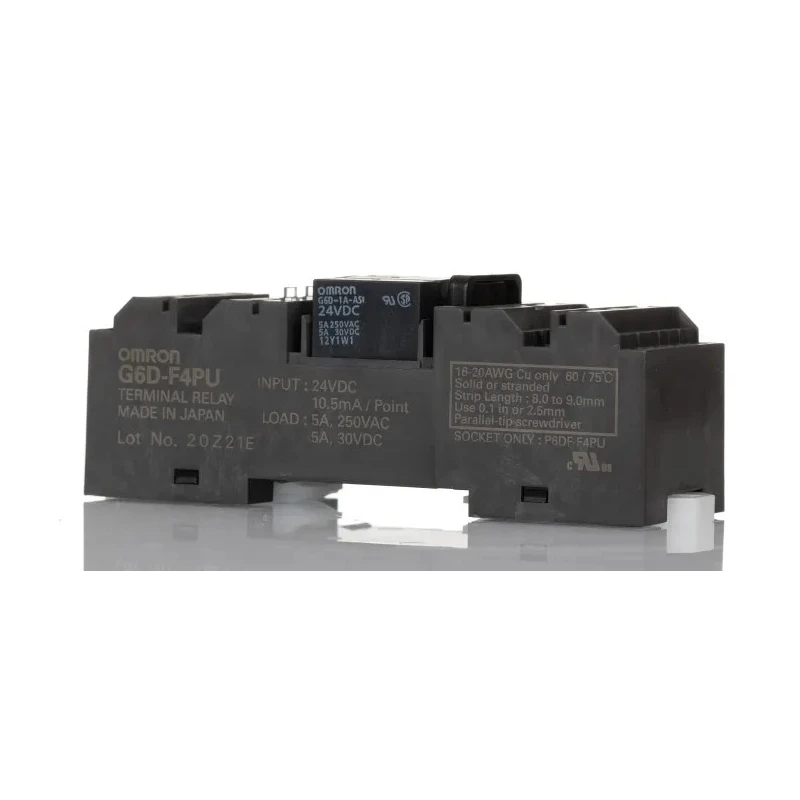

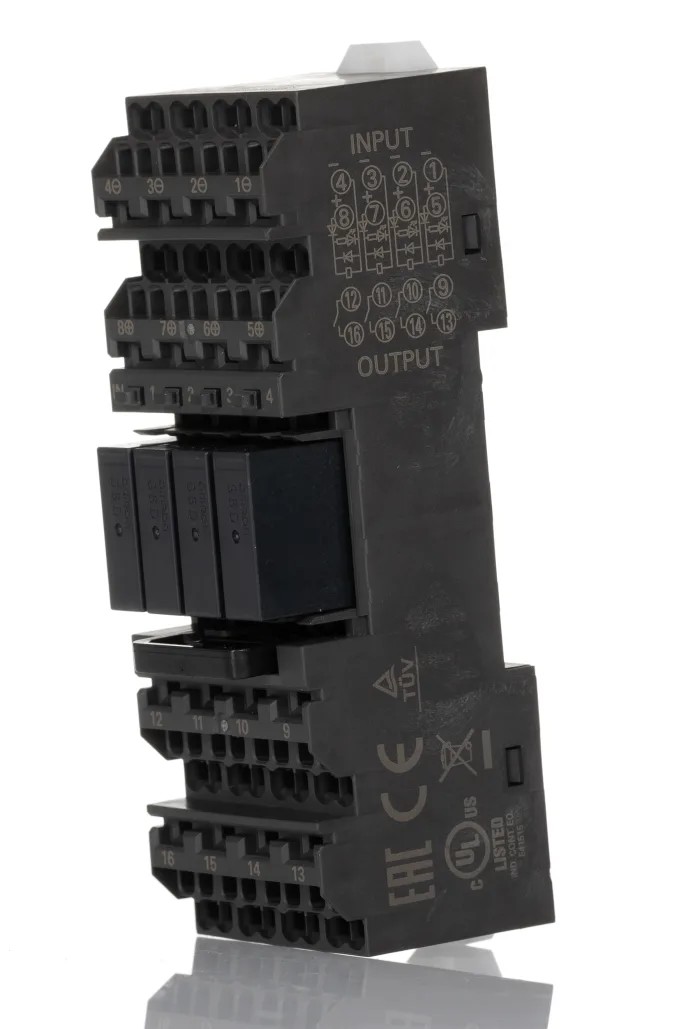

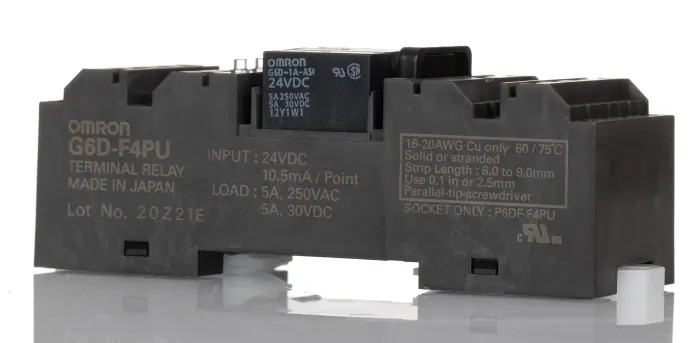

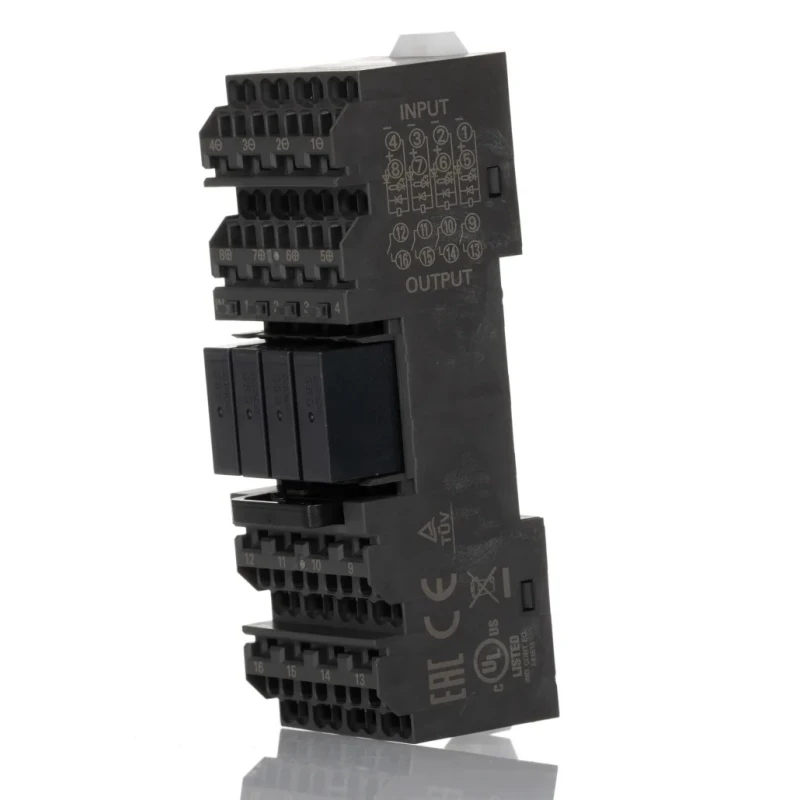

Omron Solid State Relay 24V DC Coil Voltage 5A Switching Current SPST Contact Configuration DIN Rail Mount G6D-F4PU

Omron G6D-F4PU is a solid state relay designed for industrial and automation applications, featuring a 24V DC coil voltage, 5A switching current capacity, and a single-pole, single-throw (SPST) contact configuration. This relay is optimized for DIN Rail mounting, providing a compact and secure solution for control panels and electrical systems requiring reliable switching performance.

With its durable solid state construction, the relay ensures long-lasting functionality and minimal mechanical wear. The 10.5mA coil current and 100mΩ coil resistance support stable control from PLC outputs and other digital control signals. The relay switches both DC load voltages up to 30V and AC loads up to 250V, meeting a wide range of operational needs in machinery and industrial automation.

Additional features include an LED operation indicator for easy visual inspection and troubleshooting in complex control systems. The relay is designed with a diode for coil surge absorption and employs a double wire method for efficient branch wiring. Compact dimensions of 100mm height, 35mm width, and 31mm length allow flexible and space-saving panel integration.

It is suitable for use in various industrial, manufacturing, and automation control systems where precise and fast switching is required. Offers reliable single-pole, single-throw (SPST) contact configuration for efficient switching.

Capable of handling a switching current of 5 amperes for versatile applications. Designed for DIN Rail mounting, ensuring easy and secure installation in control panels. Equipped with a coil voltage of 24V DC and a coil current of 10.5mA for stable operation.

Includes LED operation indicator for visual status monitoring and troubleshooting. Load voltage rating suitable for 30V DC and 250V AC applications. Compact dimensions of 100mm height, 35mm width, and 31mm length facilitate space-saving setups.

Features coil resistance of 100mΩ and PCB terminal for efficient connection. Operational temperature range from -25°C to 55°C ensures reliability in harsh environments. Manufactured in Japan and compliant with RoHS standards for quality assurance.

This Omron solid state relay is ideal for automation, industrial control panels, and electrical applications requiring durable and precise electronic switching components. Explore more Solid State Relays and related electrical components on EnvMart for your industrial needs.
