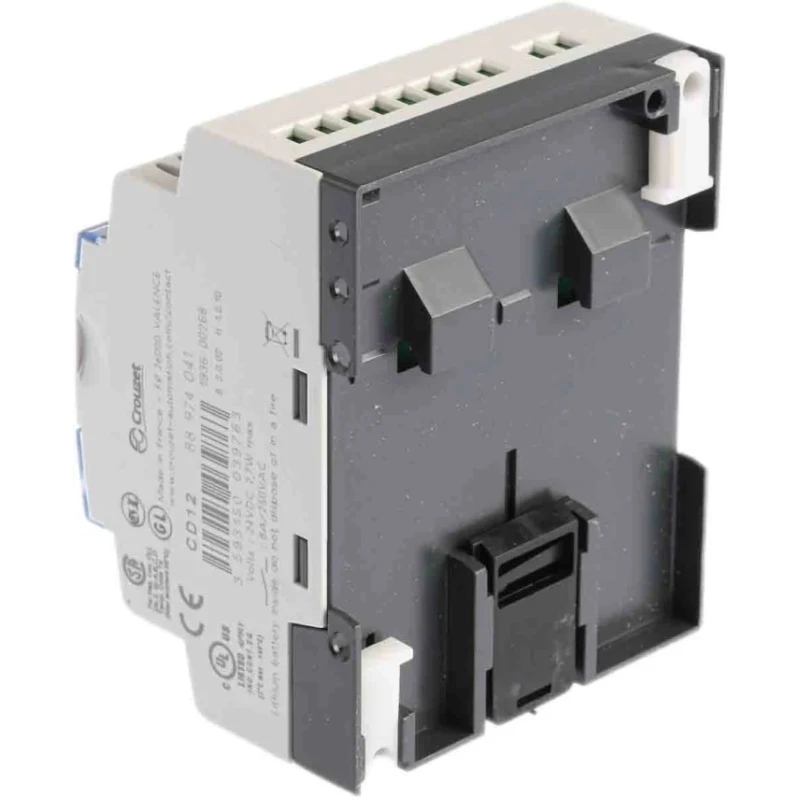

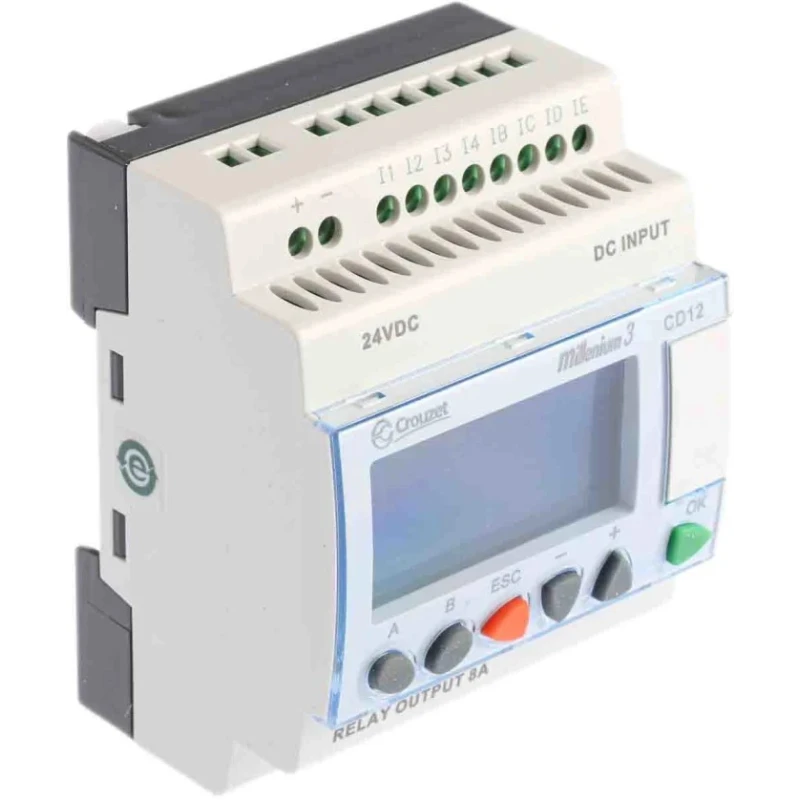

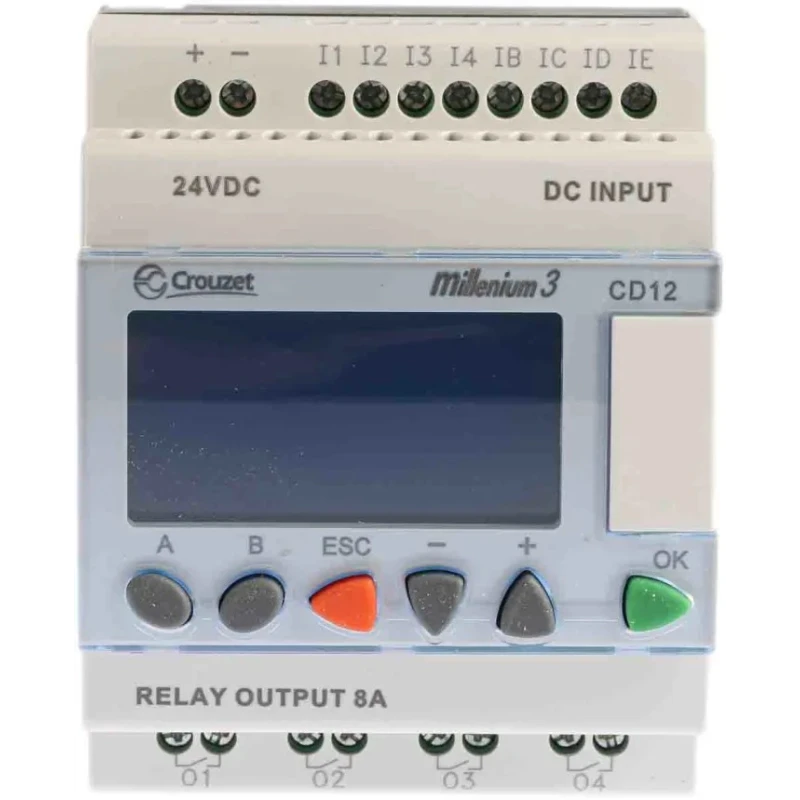

Crouzet Millenium 3 Series Logic Module, 8-Input Analogue and Digital Inputs, 4 Relay Outputs, 24V DC, DIN Rail 88974080

Crouzet 88974080 Millenium 3 Series Logic Module is an advanced programmable logic controller designed for industrial automation applications operating at 24V DC. This model provides 8 inputs including 4 analogue and digital types, alongside 4 relay outputs rated for an 8 amp contact current. It is engineered for DIN rail mounting with screw termination to suit robust industrial environments.

The device supports serial and USB communication ports simplifying programming and integration into industrial systems. It includes a high capacity memory of 368 bits and offers battery backup to safeguard application data during power failures. The unit operates reliably in ambient temperatures ranging from -20°C to 55°C.

An integrated blue LCD with four lines of eighteen characters and configurable backlighting enhances user interface clarity. The Millenium 3 series advances beyond its predecessor by doubling memory in the compact controllers and quadrupling it in expandable models, while improving analogue input resolution to 10-bit for precise analog signal processing.

Programming flexibility is provided via ladder logic or function block programming languages, supported by a comprehensive library of specific function blocks. The logic module is suitable for diverse industrial and manufacturing applications such as automated washing equipment, agricultural machinery, HVAC systems, and heating control.

Provides 8 mixed digital and analogue inputs for flexible sensor integration. Four relay outputs enable control of high-current loads up to 8A. Supports DIN rail mounting for stable installation in control panels. USB link cable included for PC to module communication.

Battery backup ensures program retention under power loss conditions. Highly visible LCD display for real-time operational feedback. Conforms to multiple EN IEC standards ensuring electromagnetic compatibility and safety.

Programming via ladder logic with expandable memory for complex automation tasks.

Manufactured in France, this product embodies reliability and functional sophistication within industrial automation systems. It complies with EN (IEC) 61131-2, EN (IEC) 61000-6-4, EN (IEC) 61000-6-3, and EN (IEC) 61000-6-2 standards, supporting quality assurance and interoperability.

Explore our Electronics & Electricals Industrial Automation category for compatible modules and automation accessories. Enhance your automation system with the Crouzet Millenium 3 series Logic Module, model 88974080.
