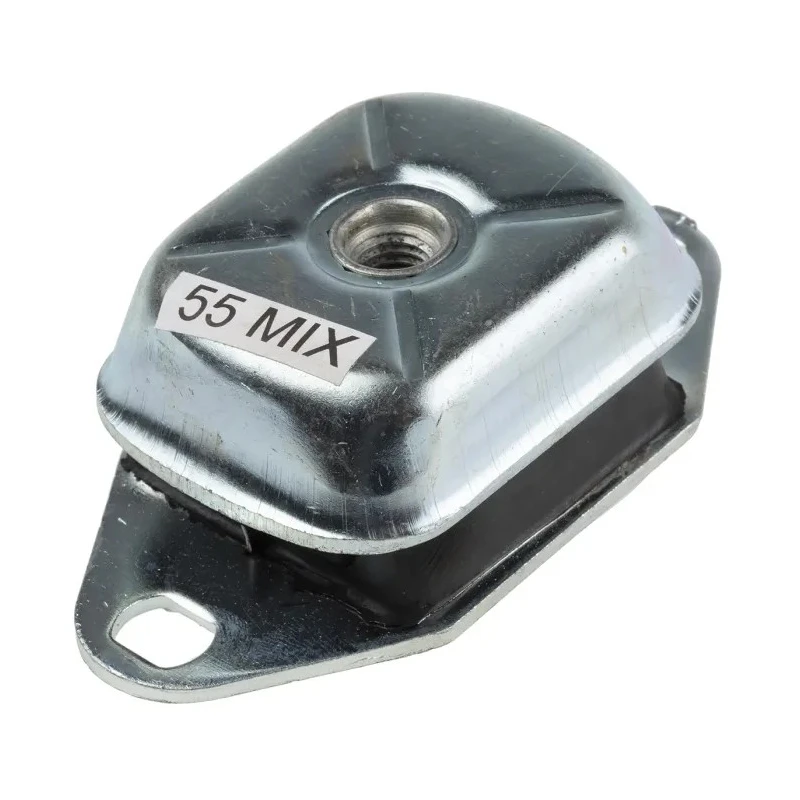

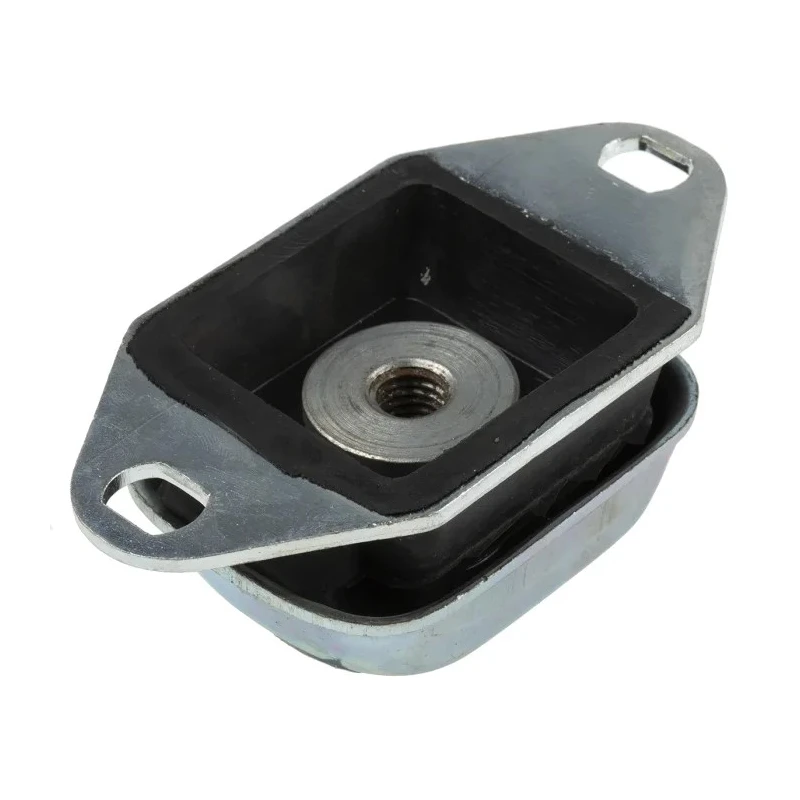

RS PRO Rectangular M12 Anti-Vibration Mount, Marine Type with 65 kg Compression Load, 120 mm Outside Diameter, 40 162-3229

RS PRO 162-3229 Rectangular M12 Anti-Vibration Mount, Marine Type provides effective vibration isolation designed originally for marine boat engines to absorb propeller thrust and shock loads experienced during sea operations. This mount is manufactured in India from natural rubber and features a metal top cover that protects the rubber element from oil and diesel fuel contamination, ensuring long-term performance even in harsh marine environments.

The mount has a static load rating of 65 kg, a 120 mm outside diameter, and an overall height of 40 mm. Its rectangular foot shape and screw mount type offer reliable attachment for various industrial and marine machinery. Operating temperature is rated up to 100°C with a shore hardness of 55 Shore A, balancing stiffness and flexibility for efficient vibration control.

Innovative built-in shock load and rebound control mechanisms reduce impact and prolong service life. The longitudinal stiffness is 2.5 times the vertical stiffness, making it suitable for absorbing engine thrust loads typical in marine applications. The compression deflection is 5 mm, enabling effective damping of vibration amplitudes encountered during machine operation.

This RS PRO anti-vibration mount complies with RoHS standards, ensuring it meets environmental and safety requirements. It is also widely used in mobile and static machinery beyond marine applications requiring reliable vibration reduction.

Its durable black foot color and natural rubber construction offer resistance against wear, making it ideal for heavy-duty industrial usage. The product is part of the RS PRO series and is manufactured in India, supporting high quality and consistent performance.

Constructed with natural rubber material offering durability and flexibility. Includes a metal top cover to protect rubber from oil and diesel contamination. Rated for 65 kg static compression load capacity. 120 mm outside diameter and 40 mm overall height dimensions ensure robust mounting.

Screw mount type with rectangular foot shape for secure installation. Operates at temperatures up to 100°C while maintaining 55 Shore A hardness. Designed to withstand longitudinal thrust loads and shock loads in marine engines.

RoHS compliant supporting environmentally safe applications. Suitable for static and mobile machinery requiring vibration isolation. Black foot color and compression deflection of 5 mm for controlled vibration damping. Explore more industrial vibration mounts and accessories on EnvMart for effective machine vibration management and improved equipment longevity.
