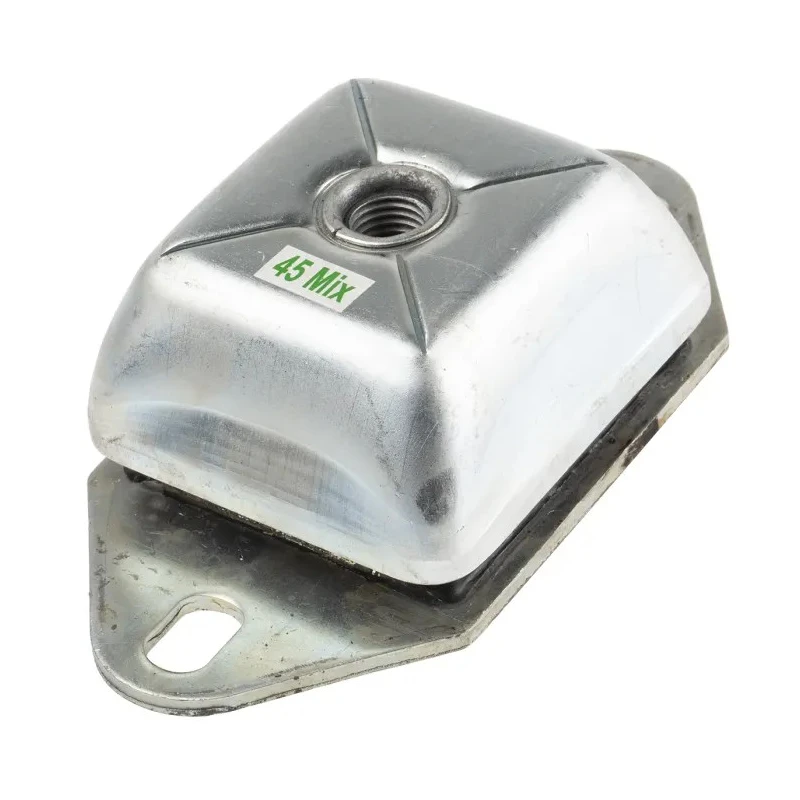

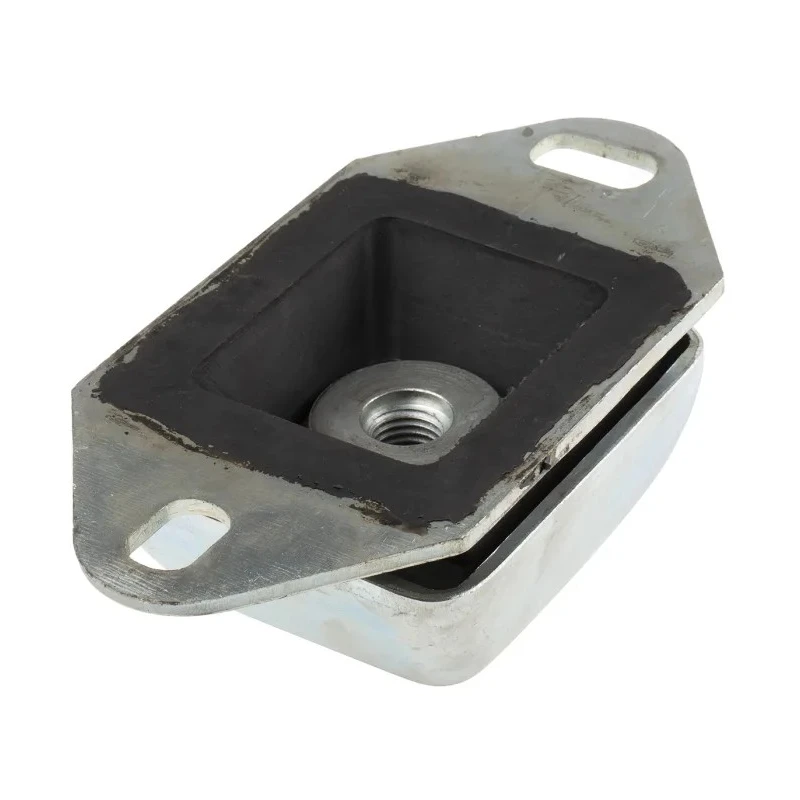

RS PRO Rectangular Marine Anti-Vibration Mount M20, 350 kg Compression, 230 mm OD, 70 mm Height 162-3241

RS PRO model 162-3241 is a marine-grade rectangular anti-vibration mount, offering advanced vibration isolation for mounted equipment such as boat engines, mobile power units, and static industrial machines. With a robust static load rating of 350 kg, this mount is engineered to absorb propeller thrust and shock loads, making it ideal for marine environments and heavy-duty applications.

The mount features a standard M20 thread size, ensuring compatibility with a wide range of installation bases. The outside diameter is 230 mm and the overall height is 70 mm, allowing for stable and secure attachment. Manufactured from natural rubber, the foot provides excellent damping and resilience against repeated mechanical stress.

A metal top cover protects the rubber element from oil and diesel fuel contamination, making the product suitable for harsh marine and industrial contexts. The anti-vibration mount incorporates built-in shock load and rebound control, minimizing both vertical and longitudinal vibrations. Its specific design produces a longitudinal stiffness that is 2.5 times greater than vertical stiffness, creating effective thrust resistance for marine engine applications.

Compression deflection is rated at 5 mm, allowing for controlled movement under heavy loads and optimal vibration absorption. The shore hardness of 45 Shore A ensures ideal performance between flexibility and durability. The mount supports operational temperatures up to 100°C for demanding installations.

Typical industry applications include marine propulsion engine mounting, industrial generator stabilization, pump installations, HVAC machinery, and mobile power units where minimizing vibration is critical to performance and longevity. The mount’s rectangular foot design is further tailored to improve stability and load distribution.

This model complies with RoHS standards, confirming suitability for regulated environments. Widely used in shipbuilding, renewable marine installations, construction equipment, water treatment facilities, and commercial machinery requiring robust anti-vibration isolation.
