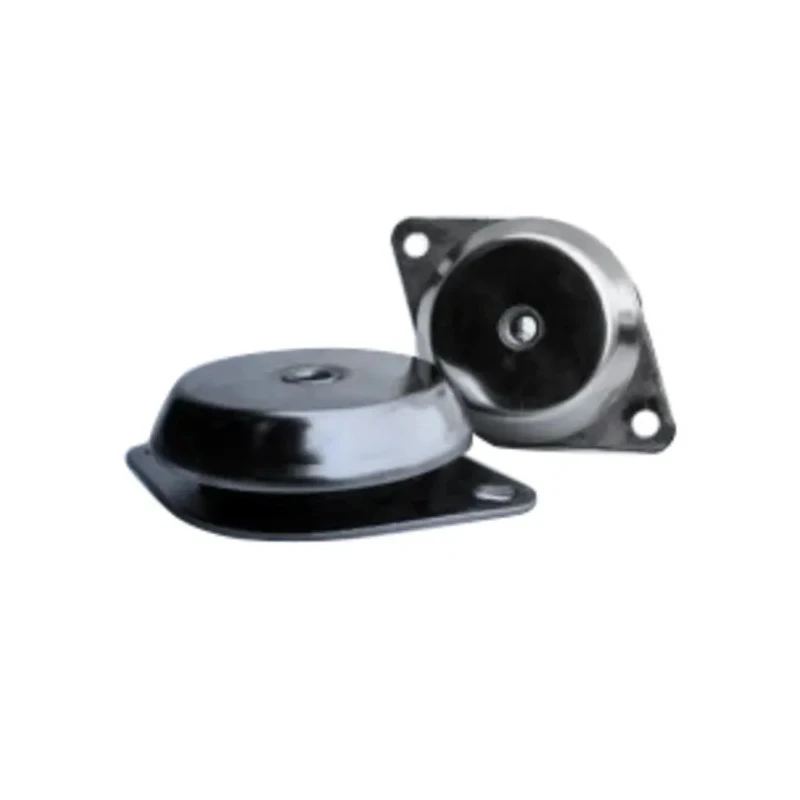

RS PRO M10 Anti-Vibration Mount, Fail Safe, 118 kg Compression, 120 mm OD, 35 mm H 162-3218

The RS PRO 162-3218 is an M10 anti-vibration mount designed to minimize vibration transmission and equipment noise for a wide range of stationary and mobile industrial machinery. Its fail safe construction combines a thick flanged base and robust rubber element that absorbs both vertical and horizontal vibrations. The compact, low-profile mount is engineered for use where both shear and compression loads are present, giving it the versatility to support equipment in harsh and dynamic environments.

This anti-vibration mount is constructed from durable rubber and includes a dome-shaped metal cap to shield the elastomer from oil and fuel splashes. The assembly supports a static compression load of up to 118 kg, withstanding deflection of up to 3.5 mm under rated load. The pedestal mount format uses a standard M10 thread, suitable for quick and secure attachment.

The 162-3218 model features a 120 mm outer diameter and a low overall height of 35 mm, making it ideal for applications where space is limited and high mechanical stability is required. The rubber element has a Shore A hardness rating of 60, balancing damping performance with resilience to repeated load cycles. The design also incorporates inbuilt bump and rebound control to limit equipment movement during transit and operation, and the metal cap further contributes to reducing airborne noise compared to traditional mounts.

Thanks to its robust construction and industrial-grade specifications, this mount operates reliably in temperatures up to 100°C. Its black rubber finish complements placement in machinery bases, generator sets, pumps, centrifugal fans, blowers, marine engines (no thrust), railway compartments, electronic control panels, and packaging machinery.

Whether you need shock and vibration absorption in static or mobile generator installations, process plant machinery, HVAC equipment, or rail transport environments, RS PRO's 162-3218 anti-vibration mount delivers stable, fail safe performance. Its proven construction ensures long service life under demanding industrial conditions.
