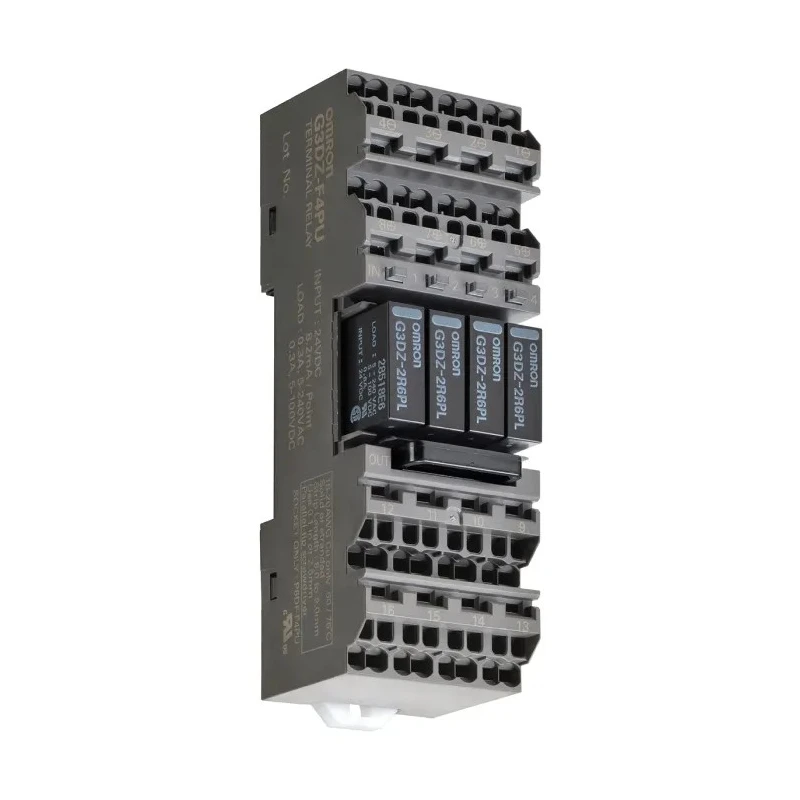

Omron Solid State Relay, DIN Rail Mount, 24V DC Coil, SPST Contact, 5A Switching Current G3DZ-F4PU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 100mm |
| Length | 31mm |
| Model | G3DZ-F4PU |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | G3DZ-F4PU |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Coil Current | 8.2mA |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
Key Features
- The relay features low coil current of 8.2mA reducing driver load.
- Single Pole Single Throw (SPST) contact simplifies control wiring.
- Capable of switching AC voltages up to 250V AC for mains applications.
- Switching DC voltages up to 30V DC supports low voltage control circuits.
- Screw terminals ensure secure wiring and easy installation.
- Designed for noise-free and vibration-resistant operation in control panels.
- Operating temperature range from -25°C to 55°C supports industrial environments.
- Compact dimensions of 100mm (H) x 35mm (W) x 31mm (L) suitable for panel mounts.
Product Description
Omron G3DZ-F4PU is a series solid state relay designed for industrial control and automation applications. It features a 24V DC coil voltage and supports a switching current of 5A. This relay is mounted on DIN rails, making it suitable for panel or control cabinet installations where compact and reliable switching is required.
The device uses a Single Pole Single Throw (SPST) contact configuration, simplifying the wiring of single-circuit controls. Its low coil current of 8.2mA reduces the load on the driver circuit, enhancing efficiency.
The relay supports switching AC voltages up to 250V AC and DC voltages up to 30V DC, enabling it to handle both AC and DC loads effectively. Screw-type terminals offer secure field wiring connections, and its robust build supports operation in environments with vibrations where mechanical relays might fail.
Operating temperature ranges from -25°C to 55°C, making it versatile for various industrial settings. Its compact dimensions make it an ideal fit for control panels without consuming excessive space.
Low coil current of 8.2mA reduces driver load. SPST contact simplifies wiring for single-circuit control. Capable of switching up to 250V AC for mains loads. Switches DC loads up to 30V for low-voltage circuits. Screw terminals enable secure and reliable wiring.
DIN rail mounting allows rapid installation in control cabinets. Operates reliably between -25°C to 55°C in industrial environments. Compact form factor suitable for panel mounting. RoHS compliant for environmentally safe manufacturing.
Ideal for interfacing PLC outputs to AC loads and replacing mechanical relays.
This solid state relay suits industrial automation, manufacturing processes, HVAC control panels, and applications requiring silent switching without mechanical wear. Environmentally compliant and industrially robust, it supports long service life in demanding conditions.
Browse more Solid State Relays and industrial automation controls on EnvMart for comprehensive selections to match your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron G3DZ-F4PU solid state relay has a switching current capacity of 5A.
This relay operates with a coil voltage of 24V DC.
It is capable of switching AC voltages up to 250V AC and DC voltages up to 30V DC.
The operating temperature range for the G3DZ-F4PU is from -25°C to 55°C.
This model is designed for DIN rail mounting, making it suitable for control cabinet installations.
The relay features a Single Pole Single Throw (SPST) contact configuration.
It uses screw-type terminals for secure wiring connections.
The coil current for the G3DZ-F4PU is 8.2mA, which helps reduce the load on the driver circuit.
The dimensions of the relay are 100mm in height, 35mm in width, and 31mm in length.
Yes, the G3DZ-F4PU is RoHS compliant, ensuring environmentally safe manufacturing.
This relay is suitable for industrial automation, manufacturing processes, HVAC control panels, and applications requiring silent switching.
The coil resistance for the G3DZ-F4PU is 2880Ω.
