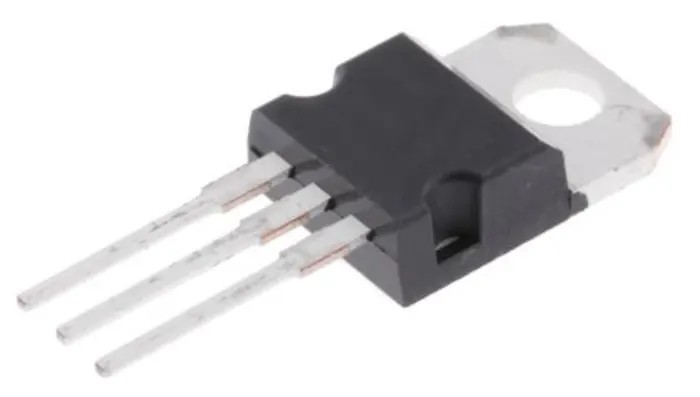

onsemi Voltage Regulator 40V 3-Pin Through Hole Positive Polarity LM2931AT-5.0G

onsemi LM2931AT-5.0G is a high-performance voltage regulator designed for applications requiring stable voltage output with efficient protection features. This positive polarity Voltage Regulator comes in a 3-pin through-hole package, allowing easy integration into various circuit designs. It supports input voltages ranging from 14V to a maximum of 40V, making it suitable for a wide range of power supply environments.

The regulator offers an input-to-output voltage differential of less than 0.6V under a 100mA load, ensuring power efficiency and minimal heat generation. Its output current capability exceeds 100mA, catering to diverse electronic components and modules. Protection features include 60V load dump and -50V reverse transient protections, vital for automotive and battery-powered equipment reliability.

Internal current limiting paired with thermal shutdown safeguards the device from excessive current and overheating, increasing lifespan and operational safety. Temporary mirror-image protection adds robustness to device functionality. The onsemi LM2931AT-5.0G is ideally suited for battery powered consumer products, handheld instruments, and automotive applications requiring trustworthy voltage regulation.

Packaged in an economical 5-lead TO-220 format with options for lead forms, this regulator simplifies mounting and heat dissipation. Measuring 10.28mm in length, 4.82mm in width, and 15.75mm in height, it fits compact designs without compromising performance. The regulator complies with the automotive standard AEC-Q100, ensuring quality and reliability in demanding environments.

Its applications primarily include automotive electronics, battery powered devices, and other consumer products requiring consistent voltage supply under varying operational conditions.

Supports maximum input voltage of 40V and minimum input voltage of 14V. Features low input-to-output voltage differential of less than 0.6V at 100mA load. Capable of output current exceeding 100mA for diverse applications.

Includes 60V load dump protection and -50V reverse transient protection for durability. Incorporates internal current limiting with thermal shutdown for safety. Temporary mirror-image protection enhances device reliability.

Optimized for battery-powered consumer products and automotive electronics. Packaged in economical 5-lead TO-220 package with optional lead forms. Compliant with automotive standard AEC-Q100, suitable for automotive systems.

Compact dimensions suitable for embedded systems. Explore more electronic components and power management ICs on EnvMart for efficient and reliable circuit design solutions.
