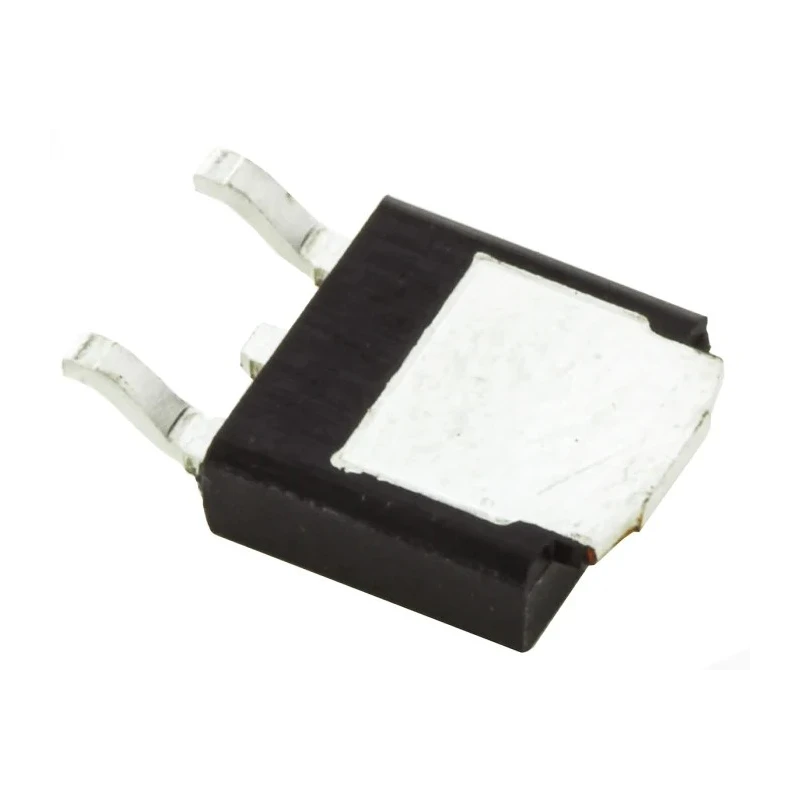

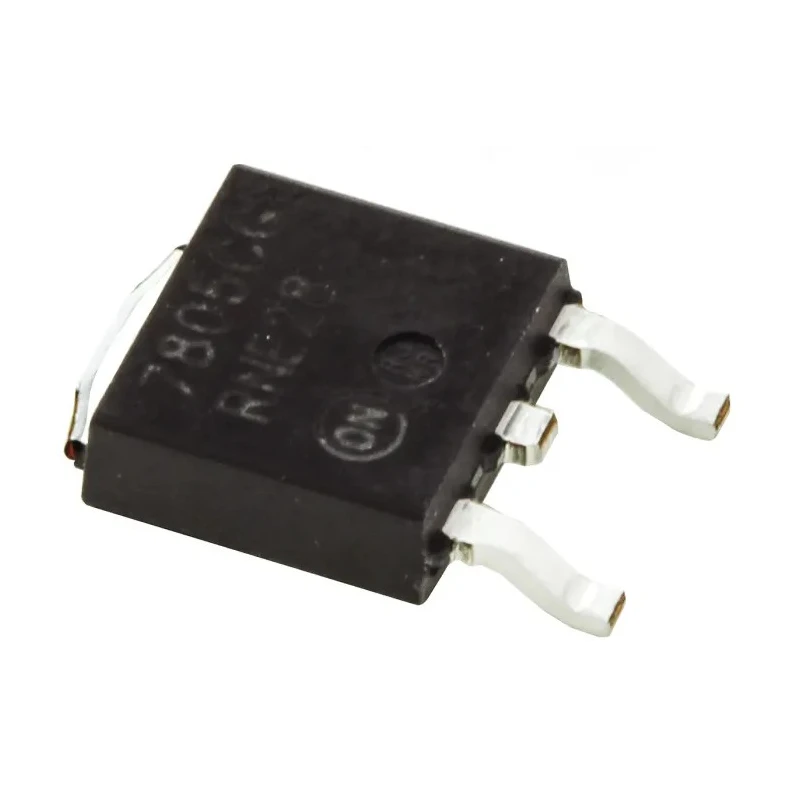

onsemi Voltage Regulator 35V Surface Mount Positive Polarity 3-Pin MC7805CDTG
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 35V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | MC7805CDTG |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | MC78xx |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3.2mA |
| Minimum Input Voltage | 5V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Monolithic integrated circuit providing fixed 5V output voltage regulation.
- Incorporates internal thermal overload protection and current limiting.
- Features safe area compensation for the output transistor.
- Supports maximum input voltage of 35V and minimum input voltage of 5V.
- Capable of delivering output current in excess of 1.0A.
- Compliant with automotive standard AEC-Q100.
- Compact surface mount package with dimensions 6.73mm length, 6.22mm width, and 2.38mm height.
- Quiescent current of 3.2mA for efficient power consumption.
Product Description
onsemi MC7805CDTG is a monolithic linear voltage regulator designed as a fixed-voltage regulator for local and on-card regulation in electronic circuits. It supports surface mount technology with a compact 3-pin package, offering a regulated 5V output voltage with positive polarity.
This device integrates internal thermal overload protection and short circuit current limiting, enhancing reliability and safety during operation. It features output transistor safe area compensation for enhanced durability.
The maximum input voltage capability is 35V, and the minimum input voltage required for regulation is 5V. It efficiently delivers output currents exceeding 1.0A making it suitable for a wide range of applications.
Designed to comply with the automotive industry standard AEC-Q100, this voltage regulator is robust for automotive and industrial electronics. It also operates reliably up to 125°C maximum operating temperature.
This Pb-Free device contributes to environmental sustainability while maintaining performance. Its quiescent current of only 3.2mA ensures minimal power consumption. Monolithic integrated fixed-voltage regulator design. Internal thermal overload and current limiting protections incorporated.
Safe area compensated output transistor. Output current capacity above 1.0A. Surface mount 3-pin package with compact dimensions. Automotive compliant with AEC-Q100 standard. Maximum operating temperature rating of 125°C.
Lead-free construction for environmental compliance. Low quiescent current of 3.2mA.
The MC7805CDTG voltage regulator is suited for industrial, automotive, and consumer electronics applications requiring stable 5V power supply regulation. Its rugged construction and safety features make it reliable for embedded systems, power modules, and electronic cards.
Browse our onsemi Voltage Regulators and related power management ICs to find high-quality components suitable for diverse electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MC7805CDTG provides a fixed output voltage of 5V.
It supports a maximum input voltage of 35V.
The minimum input voltage required for regulation is 5V.
This model is capable of delivering output currents in excess of 1.0A.
The dimensions of the surface mount package are 6.73mm in length, 6.22mm in width, and 2.38mm in height.
The quiescent current is 3.2mA, which contributes to efficient power consumption.
It is compliant with the automotive standard AEC-Q100.
The maximum operating temperature rating is 125°C.
It has a positive polarity output.
It incorporates internal thermal overload protection and current limiting features for enhanced safety.
This voltage regulator is suitable for industrial, automotive, and consumer electronics applications requiring stable 5V power supply regulation.
The country of origin for this product is the Czech Republic.
