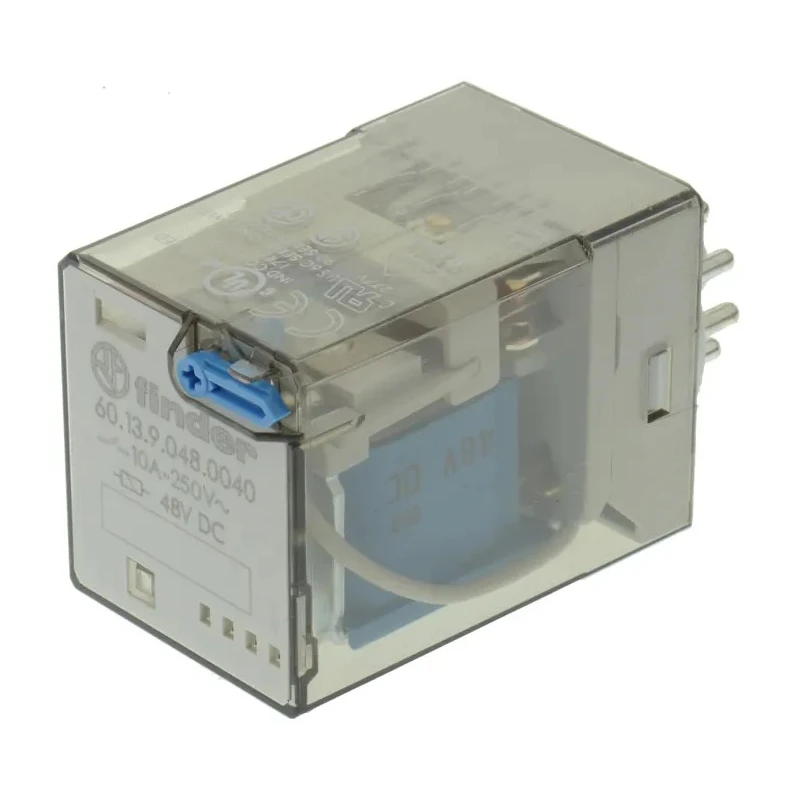

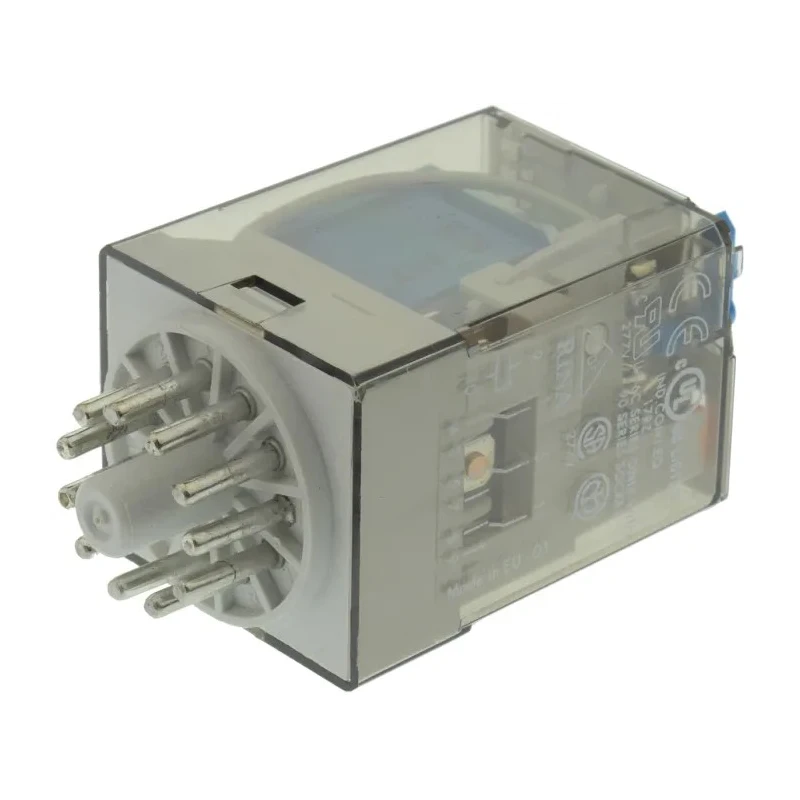

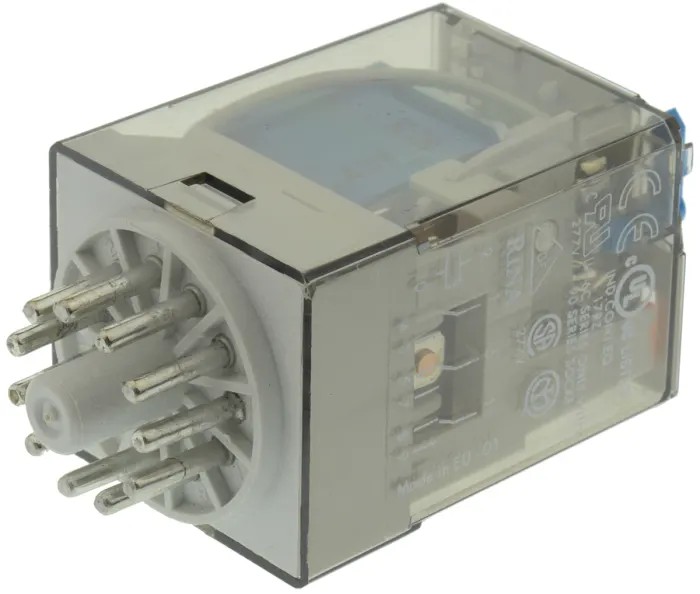

Finder Power Relay 48V DC Coil 10A Switching Current 3PDT PCB Pin Terminal 60.13.9.048.0040

Free Delivery in India | Lowest Global Shipping Charges

Finder Power Relay 48V DC Coil 10A Switching Current 3PDT PCB Pin Terminal 60.13.9.048.0040

Name: Finder Power Relay 48V DC Coil 10A Switching Current 3PDT PCB Pin Terminal 60.13.9.048.0040
Brand: FINDER
SKU: 157613
Price: 21.88 USD
Availability: InStock



Category Power Relay Brand FINDER Condition New

Specifications

Country of Origin	Italy
Brand	Finder
Height	54.2mm
Length	32.5mm
Width	36.4mm
Contact Material	Silver Alloy
Series	60
Maximum Operating Temperature	70°C
Contact Configuration	3PDT
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	PCB Pin
Standards/Approvals	RoHS
Coil Resistance	1.8kΩ
Coil Voltage	48V dc
Switching AC Voltage	400V ac
Coil Power	1.3W
11pin 3PCO plug-in relay,10A 48Vdc coilBrand	NEUTRAL

Key Features

This relay operates reliably within a temperature range of -40°C to 70°C.
It features a durable silver alloy contact material for longevity and performance.

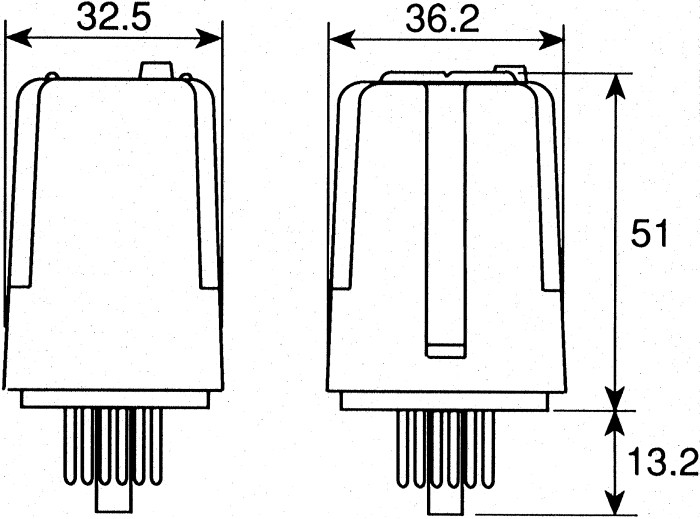

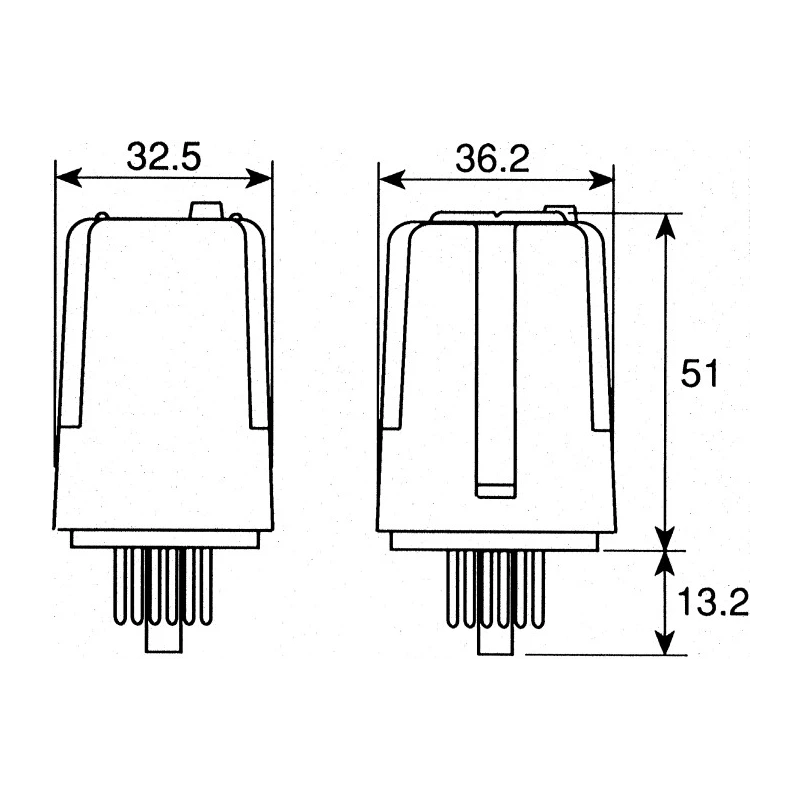

Compact design with dimensions 32.5mm length, 54.2mm height, and 36.4mm width for PCB mounting.
Maximum switching power capacity of 2.5kVA with a maximum AC voltage of 400V AC.
Coil resistance is 1.8kΩ and coil power is 1.3W ensuring efficient operation.
Designed to withstand up to 200,000 electrical cycles guaranteeing long operational life.
High voltage isolation of 3.6kV between coil and contacts enhances safety.
Suitable for automation control panels, hoists, shipyards, lighting systems, and heating equipment.

Product Description

Finder 60.13.9.048.0040 power relay is a robust 3PDT type relay featuring a 48V DC coil voltage and a switching current rating of 10A, specifically designed for industrial automation and electrical control applications.

Its compact size of 32.5mm length, 54.2mm height, and 36.4mm width makes it ideal for PCB mounting in space-constrained designs. The relay offers a maximum switching power of 2.5kVA and supports up to 400V AC switching voltage, suitable for a wide range of electrical loads.

Constructed with silver alloy contacts, it ensures reliable conductivity and durability, rated for 200,000 electrical cycles. The coil resistance of 1.8kΩ with 1.3W coil power provides efficient coil operation while maintaining a high isolation voltage of 3.6kV between coil and contacts for enhanced safety.

This relay operates effectively in ambient temperatures from -40°C to 70°C, making it apt for diverse industrial environments. Its versatile 3PDT contact configuration enables multiple circuit switching functions, increasing its application flexibility.

Reliable operation over wide temperature range from -40°C to 70°C. Durable silver alloy contact material ensures long service life. Compact PCB mountable form factor measuring 32.5 × 54.2 × 36.4 mm. 10A switching current with 2.5kVA power handling capacity.

Maximum switching voltage of 400V AC for varied applications. Coil resistance of 1.8kΩ and coil power rating of 1.3W. High isolation voltage of 3.6kV between coil and contacts. Rated for 200,000 electrical switching cycles.

Typical industrial use cases include integration in automation system control panels, operation of hoists and cranes, machinery control in shipyards, illumination management in road and tunnel lighting, and temperature regulation in burners, boilers, and furnaces.

Manufactured in Italy under RoHS compliance, this power relay combines performance, quality, and long-term reliability for advanced electrical control solutions. Explore more Power Relays and automation components within EnvMart's comprehensive Electronics & Electricals catalog.
