Releco Power Relay 12V DC Coil 10A Switching Current DPDT C3-R20 / DC 12 V

Free Delivery in India | Lowest Global Shipping Charges

Releco Power Relay 12V DC Coil 10A Switching Current DPDT C3-R20 / DC 12 V

Name: Releco Power Relay 12V DC Coil 10A Switching Current DPDT C3-R20 / DC 12 V
Brand: Releco
SKU: 157602
Price: 61.61 USD
Availability: InStock



Category Power Relay Brand Releco Condition New

Specifications

Country of Origin	India
Brand	Releco
Height	66mm
Length	35mm
Model	C3-R20 / DC 12 V
Width	35mm
Contact Material	Silver Alloy
Series	C3-R20
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	Solder
Standards/Approvals	UL, CSA, EN, IEC, RoHS
Coil Resistance	125Ω
Coil Voltage	12V dc
Switching DC Voltage	30V dc
Switching AC Voltage	250V ac
Coil Power	1.5W

Key Features

Bi-stable latching design retains switching state regardless of excitation.
Silver alloy contact material ensures reliable conductivity.
Compact 35mm × 35mm × 66mm form factor facilitates easy installation.
Wide operating temperature range from -40°C to 60°C supports industrial applications.
Test button with dual functions for push-to-test and lift-to-latch operations.
Compliant with UL, CSA, EN, IEC, and RoHS standards.
Suitable for HVAC, refrigeration, commercial cooking, and industrial cleaning equipment.
Operates with a coil resistance of 125Ω and coil power of 1.5W.

Product Description

Releco C3-R20 / DC 12 V power relay is a robust, DC-powered latching relay featuring a 12V DC coil voltage and a high switching current capacity of 10A, designed with double pole double throw (DPDT) contact configuration. Its bi-stable switching preserves the current state even when coil excitation is removed, offering reliable performance in demanding environments.

Manufactured with silver alloy contacts, the relay ensures excellent electrical conductivity and durability. It measures 35mm in length and width, and 66mm in height, making it compact and suitable for varied industrial installations.

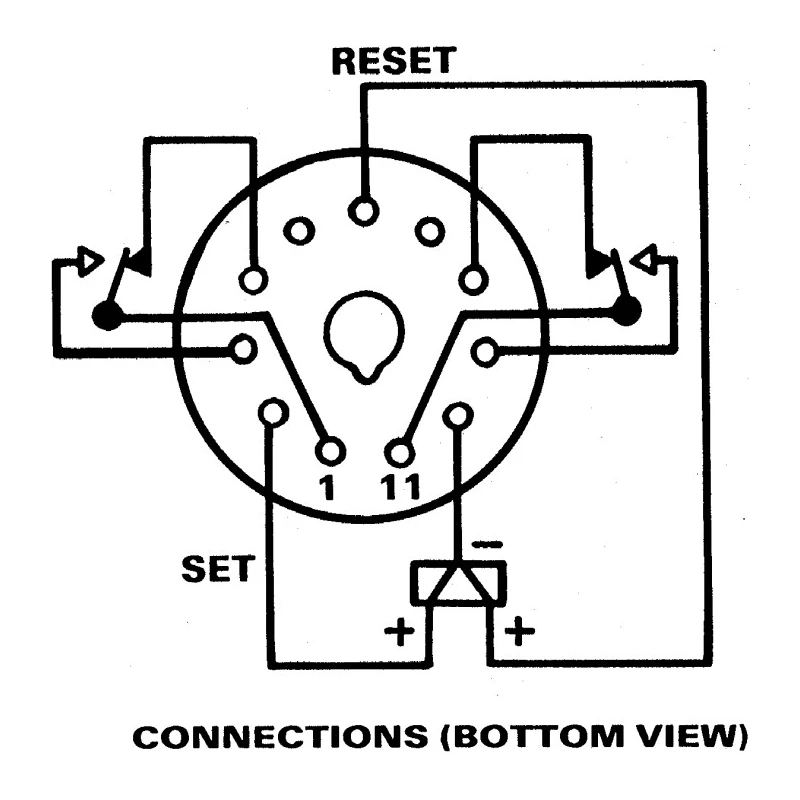

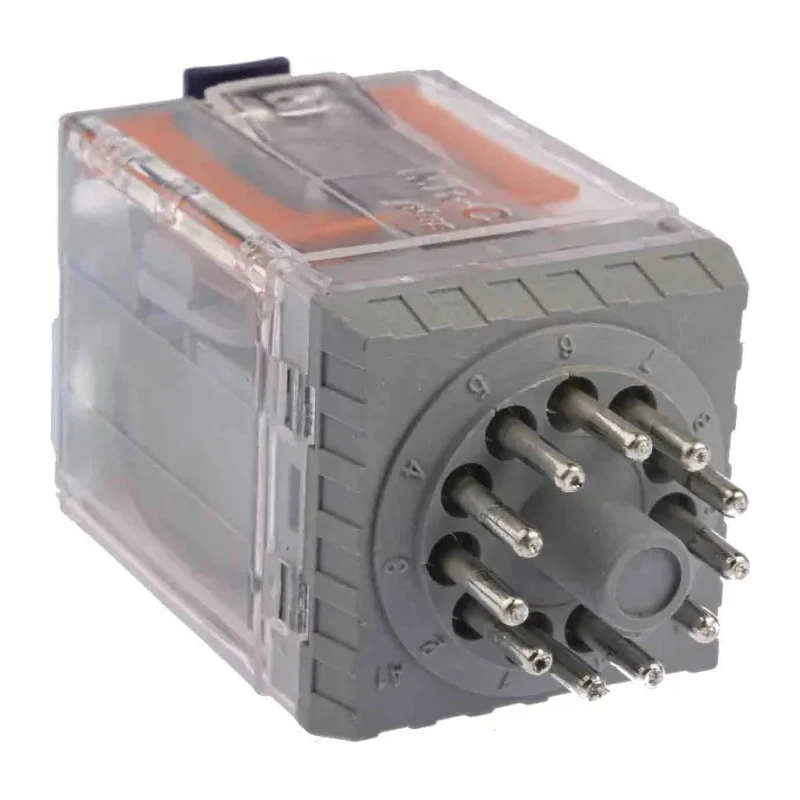

This relay includes an 11-terminal multipole connector compliant with IEC 67 and features a mechanical flag indicator as a standard. The coil resistance of 125Ω combined with a coil power rating of 1.5W supports efficient operation without excessive energy consumption.

Engineered to withstand a broad range of temperatures from -40°C to 60°C, it suits climates and industrial processes requiring thermal resilience. The integrated test button, color-coded for user convenience, supports both push-to-test and lift-to-latch functionalities.

Applications encompass anti-condensation equipment, car washing machines, coffee machines, commercial cooking, driers, pumps, HVAC systems, industrial cleaning, and refrigeration units. The relay’s design and certifications including UL, CSA, EN, IEC, and RoHS ensure compliance with international safety and environmental standards.

Bi-stable latching design for persistent switching state. Silver alloy contacts for superior electrical performance. Compact 35×35×66 mm dimensions for versatile installation. Wide operational temperature from -40°C to 60°C.

Coil power consumption is rated at 1.5W with 125Ω resistance. Includes test button with push-to-test and lift-to-latch functions. IEC 67 compliant 11-terminal connector included. Suitable for HVAC, industrial cleaning, and commercial equipment.
