Cynergy3 PCB Reed Relay 12V DC Coil SPST 1000V DC Max 1A Max 750Ω

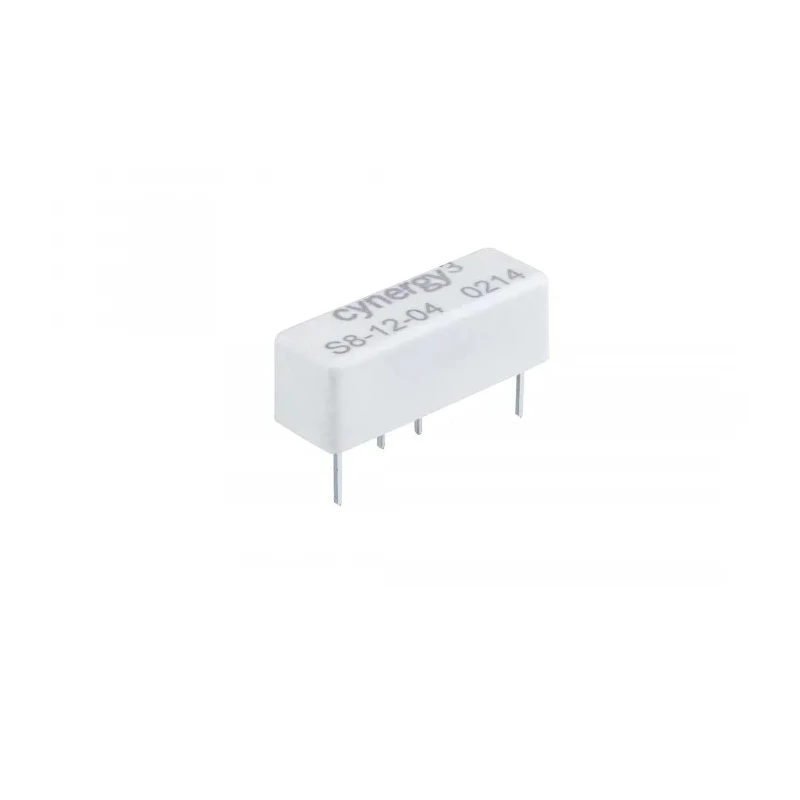

Cynergy3 S8-1204V/RS PCB Reed Relay is designed for applications requiring compact, reliable switching with high voltage and current ratings. It incorporates a 12V DC coil and a single-pole single-throw (SPST) contact configuration offering maximum switching voltage of 1000V DC and current rating of 1 ampere. The relay's miniature dimensions (12mm height, 30mm length) facilitate PCB space savings without compromising performance.

The relay utilizes rhodium contacts which provide excellent durability and low contact resistance of 150 milliohms, ensuring optimal electrical conduction and long operational life. Its isolation between coil and contacts stands at 7kV, enhancing safety in applications involving high voltage differentials.

Operating temperature range from -40°C to 85°C makes this relay suitable for use in harsh, industrial, and test equipment environments. Its fast operating time of 1ms including bounce time allows precise switching performance in time-sensitive circuits.

The coil resistance of 750 ohms is optimized for 12V DC operation, and the relay is mounted using PCB terminal type connectors for secure and easy integration onto printed circuit boards. The relay does not latch, making it ideal for applications requiring momentary contact switching.

This product is part of the S8 series miniature high voltage reed relay family from Cynergy3, engineered for scenarios demanding reliable switching in limited installation spaces, including medical devices like cardiac defibrillators and various test equipment.

Features durable rhodium contacts providing low contact resistance of 150mΩ. Compact design with coil pins centered and contact pins at the ends enhances isolation and saves PCB space. Operates within a temperature range of -40°C to 85°C, suitable for harsh environments.

Fast operating time of 1 millisecond with a small size ideal for space-constrained applications. Coil resistance is 750Ω ensuring reliable coil power characteristics. Maximum switching current up to 1A and switching power of 100VA.

Isolation voltage between coil and contact is rated at 7kV, ensuring high insulation. Mount type is PCB with PCB terminal connections for easy integration. Non-latching reed relay in the S8 series with height of 12mm and length of 30mm.

Manufactured in China and conforming to UR standards.

This Cynergy3 Reed Relay is highly suited for industrial, laboratory, medical, and test equipment applications that require dependable and precise switching performance in a compact package. EnvMart offers this relay as a reliable component for critical electronic designs requiring high voltage, durability, and compactness.
