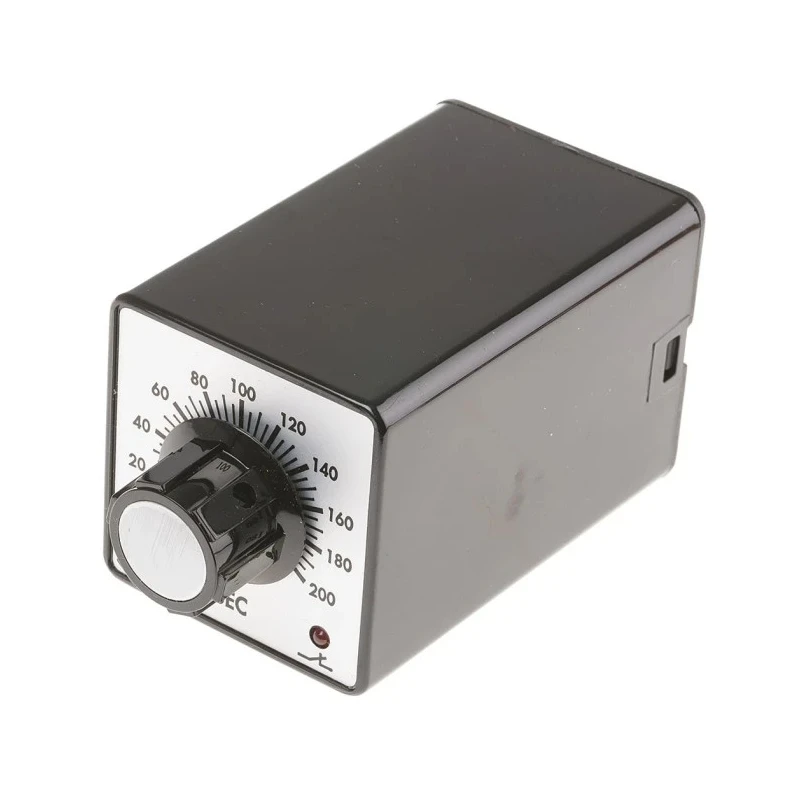

Tempatron 2B Series Timer Relay, 2-Contact DPDT, 24 V dc/ac, ON Delay, Time Range 5 to 200 s, 8-Pin Terminal 2BDE200SLP24VDC

Tempatron 2BDE200SLP24VDC Timer Relay is a precision device designed for industrial automation and electrical control systems requiring time-delayed relay operations. Featuring a DPDT 2-contact configuration, this relay supports both 24 V dc and 24 V ac power supply, making it versatile for varied electrical environments.

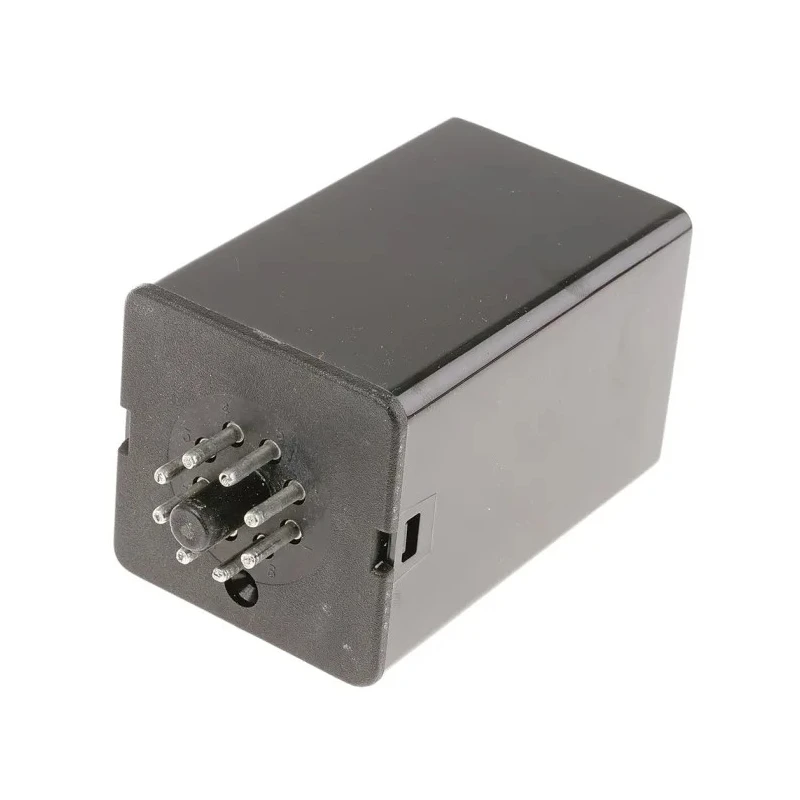

The timer relay offers a flexible timing range from 5 to 200 seconds, adjustable via a screwdriver slot, to deliver precise ON Delay timing functions. Its rugged 8-pin terminal base facilitates easy and secure electrical connections, while the compact form factor measuring 108 mm in height, 48 mm in length, and 48 mm in width allows it to fit efficiently into tight panel spaces.

Rated for a contact current of 10A and with a robust AgCdO contact material, the relay ensures reliable switching and long service life. The unit's IP40 rating protects it from solid objects larger than 1 mm, suitable for indoor industrial use. Operating temperature ranges from -10°C to 60°C allow functionality in varied environmental conditions.

LED indicators provide clear visual feedback for power and relay energization status, aiding installation and troubleshooting. Compliance with EN/IEC standards underscores the product's quality and suitability for industrial applications.

Manufactured in the United Kingdom, this timer relay is part of the reputable Tempatron 2B Series, trusted for durability and dependable performance in control and automation systems.

This timer relay supports both 24 V dc and 24 V ac supply voltages. It features an ON Delay mode with screwdriver slot timing adjustment. The relay has a contact current rating of 10A for reliable switching. Equipped with an 8-Pin terminal type and compact dimensions of 108mm height, 48mm length, and 48mm width.

Designed to operate within a temperature range of -10°C to 60°C with an IP40 rating. Includes LED indication for power and relay energised status. Contact material is AgCdO ensuring durability and compliance with EN/IEC standards.

The product is manufactured in the United Kingdom and is part of the 2B Series.

Ideal for applications in industrial automation, electrical control panels, manufacturing processes, and signal conditioning, this timer relay provides precise timing control for switching operations. Explore more Timer Relay options and automation components at EnvMart.
