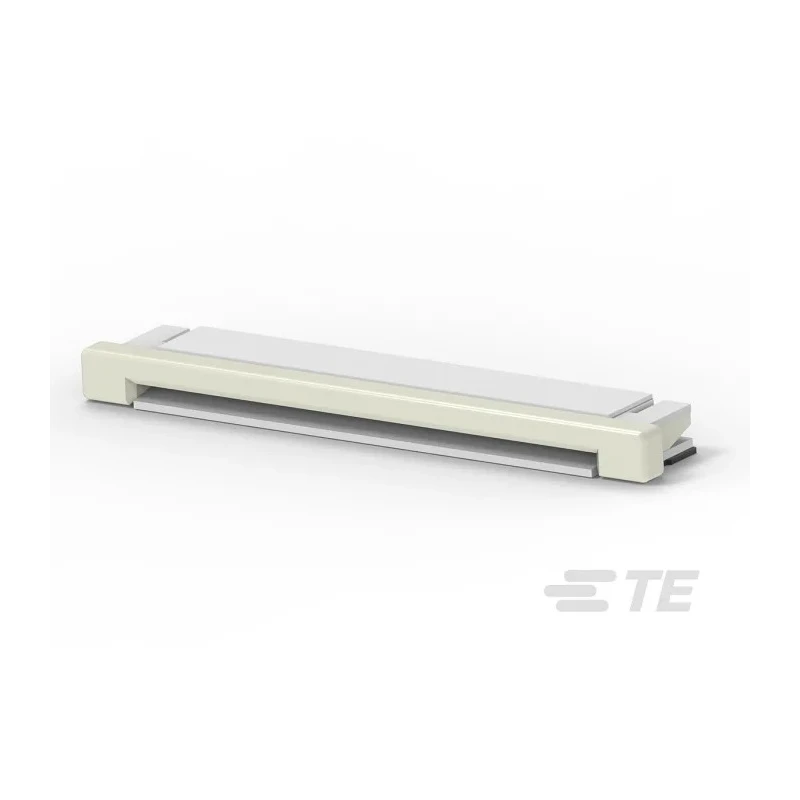

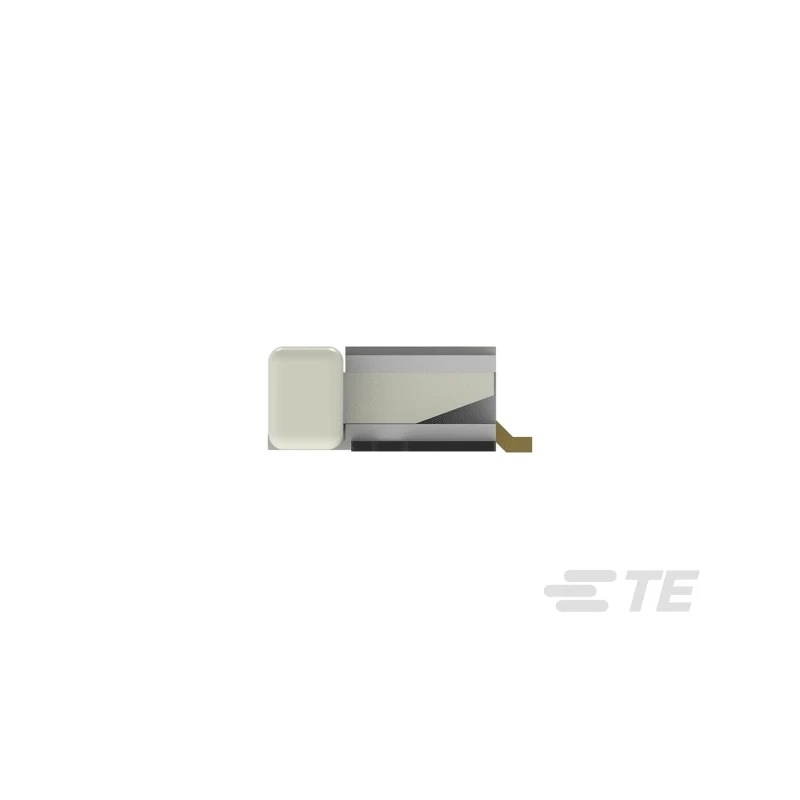

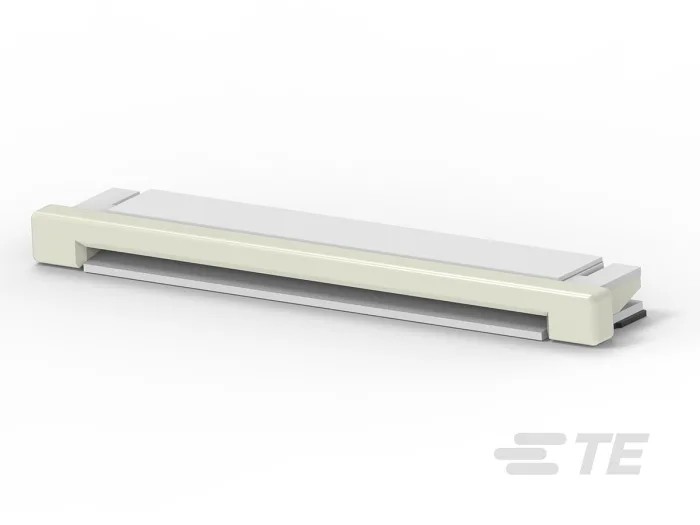

TE Connectivity 0.5 mm Pitch 40 Way Right Angle Female FPC Connector, Solder 4-1734592-0

TE Connectivity 4-1734592-0 is a high-precision FPC connector designed for flex-to-board connections in electronics applications. Featuring a 0.5 mm pitch with 40 female contacts arranged in a right angle orientation, this connector ensures compact and reliable interconnection with a single row configuration.

Its phosphor bronze contacts plated with gold provide excellent electrical conductivity and resistance to corrosion, making it suitable for signal-level circuits requiring stable transmission. The housing is molded from liquid crystal polymer (LCP), which offers high mechanical strength and stability over the operating temperature range from -40°C to 85°C.

This connector employs a zero insertion force (ZIF) mechanism with a plunger-style actuator to reduce the force necessary during assembly, minimizing risk of damage to fragile flex cables. The locking mechanism guarantees secure cable retention during mechanical stress and vibration.

Designed for surface mount solder termination, the connector aligns precisely with the PCB bottom contact position for stable mounting. Rated for operation at up to 250 V AC and 0.5 A current per contact, it is ideal for signal circuits in diverse industrial electronics, instrumentation, telecommunications, and computing devices.

The right angle mounting orientation and compact dimensions of 25.43 mm length, 5.1 mm width, and 2.05 mm height support space-saving PCB designs and convenient cable routing. This assembly is manufactured in China under TE Connectivity’s rigorous quality standards.

The connector features 40 contacts with 0.5 mm pitch ensuring precise signal routing. Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance. Housing material is natural liquid crystal polymer providing mechanical strength and thermal stability.

Zero insertion force mechanism facilitates easy cable insertion without damage risk. Right angle orientation supports flexible PCB layouts and industrial applications. Operates reliably in temperatures ranging from -40°C to +85°C.

Maximum operating voltage rated at 250 V AC for signal circuit integrity. Surface mount solder termination provides secure electrical and mechanical connection. Locking mechanism ensures cable retention under vibration and mechanical stress.

Compact connector dimensions optimize board space utilization in electronics devices.

TE Connectivity’s 4-1734592-0 FPC Connector is suitable for industrial, telecommunications, computing, and instrumentation applications requiring high reliability flexible printed circuit connections. Explore more TE Connectivity products in the Electronics Components category on EnvMart for comprehensive connectivity solutions.
