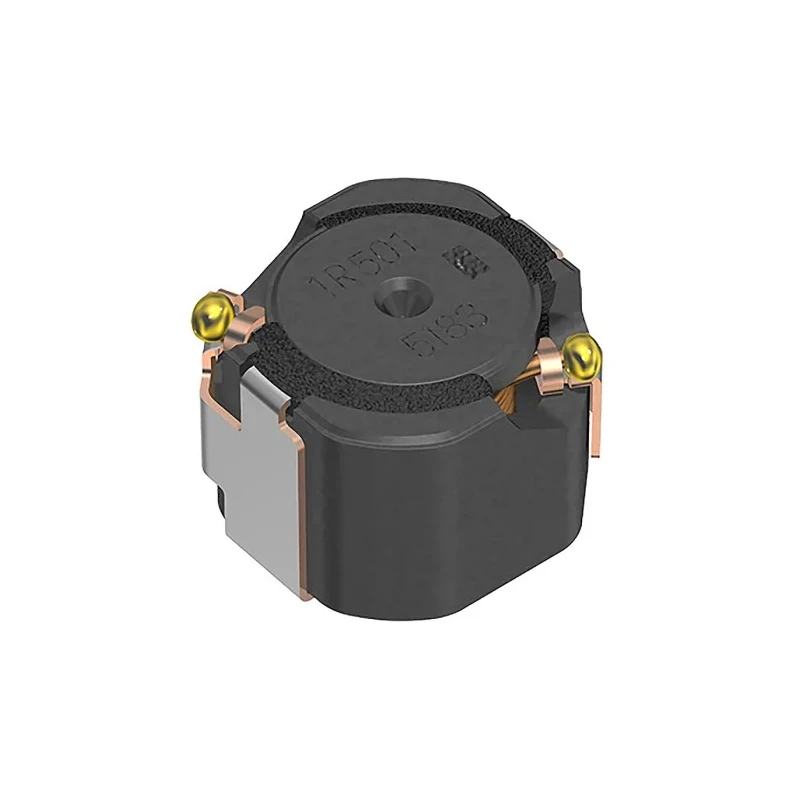

TDK 6045 Shielded Wirewound Surface Mount Inductor with Ferrite Core 3.3 μH ±30 % 3.7A CLF6045NI-D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6mm |
| Brand | TDK |
| Height | 4.5mm |
| Length | 6.3mm |
| Model | CLF6045NI-D |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | CLF6045NI-D |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | 6045 |
| Maximum DC Current | 3.7A |
| Maximum DC Resistance | 19mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a shielded wirewound design for electromagnetic interference reduction.
- Features a ferrite core enhancing magnetic performance and stability.
- Compact 6045 package measuring 6.3 mm length, 6 mm diameter, and 4.5 mm height.
- Rated to operate within temperature ranges from -55°C up to 150°C.
- Complies with automotive standard AEC-Q200 ensuring reliability in automotive applications.
- Has a maximum DC resistance of 19 mΩ for efficient current conduction.
- Suitable for use in DC/DC converters, automotive electronics, and power filtering circuits.
- Provided in tape and reel packaging optimized for surface mount assembly processes.
Product Description
TDK CLF6045NI-D is a high robustness shielded wirewound surface mount inductor featuring a ferrite core. This component provides an inductance of 3.3 μH with a tolerance of ±30 % and can handle a maximum DC current of 3.7 A, making it ideal for demanding electronic power applications.
The inductor is designed in a compact 6045 case size with dimensions of 6.3 mm length, 6 mm diameter, and 4.5 mm height. It is shielded to minimize electromagnetic interference and ensure signal integrity in sensitive circuits. The ferrite core construction aids in maintaining performance stability across its operating temperature range from -55°C to 150°C.
Key features include compliance with the automotive AEC-Q200 standard, supporting use in automotive electronics and other rugged environments. The low DC resistance of 19 mΩ contributes to efficient operation with minimal power loss. Termination is surface mount style, compatible with modern PCB assembly techniques. The maximum self resonant frequency is 100 kHz, useful for defining operation limits in high-frequency circuits.
This inductor is particularly suited for switching power supplies, DC/DC converters, power filtering, coupling, and decoupling applications in industrial, automotive, and commercial electronic equipment.
Provides 3.3 μH inductance with ±30 % accuracy. Maximum DC current capacity of 3.7 amperes. Shielded wirewound construction reduces EMI impact. Ferrite core material optimizes inductive stability. Operates from -55°C to 150°C for wide environmental adaptability.
Meets automotive quality AEC-Q200 standard for reliability. Compact 6045 package suitable for surface mount assembly. Low DC resistance of 19 milliohms minimizes power dissipation. Maximum self-resonant frequency of 100 kHz supports switching applications.
Choose TDK CLF6045NI-D for reliable, high-performance inductors in sophisticated electronic designs. Browse more Surface Mount Inductors in our Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK CLF6045NI-D inductor has an inductance value of 3.3 μH with a tolerance of ±30%.
This model can handle a maximum DC current of 3.7 A.
The dimensions of the CLF6045NI-D inductor are 6.3 mm in length, 6 mm in diameter, and 4.5 mm in height.
It operates within a temperature range from -55°C to 150°C.
The core material used in this inductor is ferrite, which enhances its magnetic performance and stability.
It is provided in tape and reel packaging, which is optimized for surface mount assembly processes.
The maximum DC resistance of this inductor is 19 mΩ, contributing to efficient current conduction.
This model complies with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
The maximum self-resonant frequency of the CLF6045NI-D is 100 kHz, which is useful for high-frequency circuit applications.
This inductor is suitable for use in DC/DC converters, automotive electronics, and power filtering circuits.
The termination style of this inductor is surface mount, making it compatible with modern PCB assembly techniques.
The TDK CLF6045NI-D is manufactured in India.
