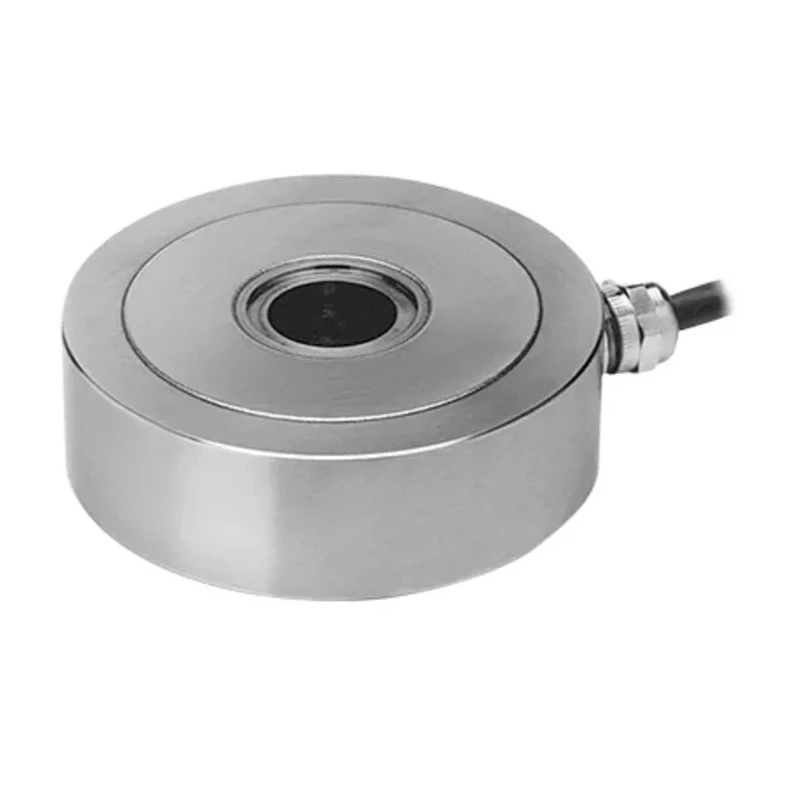

Tedea Huntleigh Stainless Steel Low Profile Torsion Load Cell 2 kg to 5 t 30V DC 00RLC-005T-C3-13X

Tedea Huntleigh 00RLC-005T-C3-13X is a high-performance stainless steel low profile torsion load cell designed for precision force measurement in demanding industrial environments. It features a robust, fully welded construction with a glass-to-metal cable entry, offering superior protection against harsh chemicals, moisture, and mechanical stress.

The load cell has a capacity range from 2 kg minimum to 5 tonnes maximum, making it suitable for various weighing and force measurement needs. It operates reliably within a temperature range of -30°C to 70°C and carries high ingress protection ratings of IP68, IP66, and IP69K, enabling use in wet or washdown environments commonly found in food processing and allied industries.

Its compact dimensions of 30mm width, length, and depth allow for easy integration into small and medium platform scales, hoppers, and process weighing setups. The load cell supports a maximum DC voltage input of 30 V DC and includes a cable terminal type for convenient electrical connection.

This product complies with several international standards and certifications, including ATEX, FM, RoHS compliance, and OIML R-60 with 3000 divisions, ensuring high accuracy and safety standards for industrial use.

Applications include use in food industry platforms, marine and hybrid scales, and process weighing hoppers where accuracy and environmental resistance are critical. The stainless steel housing guarantees durability and longevity even in corrosive environments.

Stainless steel low profile ring design ensures durability and accuracy. Measures torsion forces accurately from 2 kg up to 5 tonnes. High IP rating IP68, IP66, IP69K suitable for harsh and wet environments. Operating temperature range from -30°C to 70°C for versatile applications.

Fully welded construction with glass-to-metal cable entry for enhanced protection. Suitable for food, chemical, and allied process industries requiring hygienic conditions. Ideal for small and medium platform scales, hoppers, and process weighing applications.

Complies with ATEX, FM, RoHS, OIML R-60 standards ensuring quality and safety. Maximum DC voltage input of 30 V DC for electrical compatibility. Compact 30mm x 30mm x 30mm dimensions provide ease of integration. Explore the extensive range of sensors and Load Cells at EnvMart for specialized industrial, laboratory, and commercial weighing solutions.
