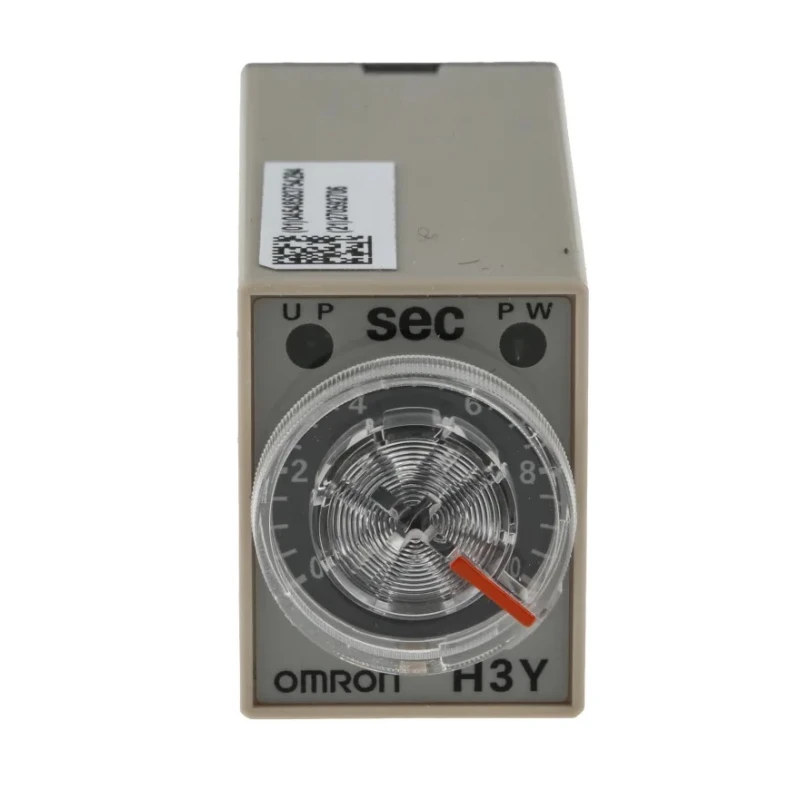

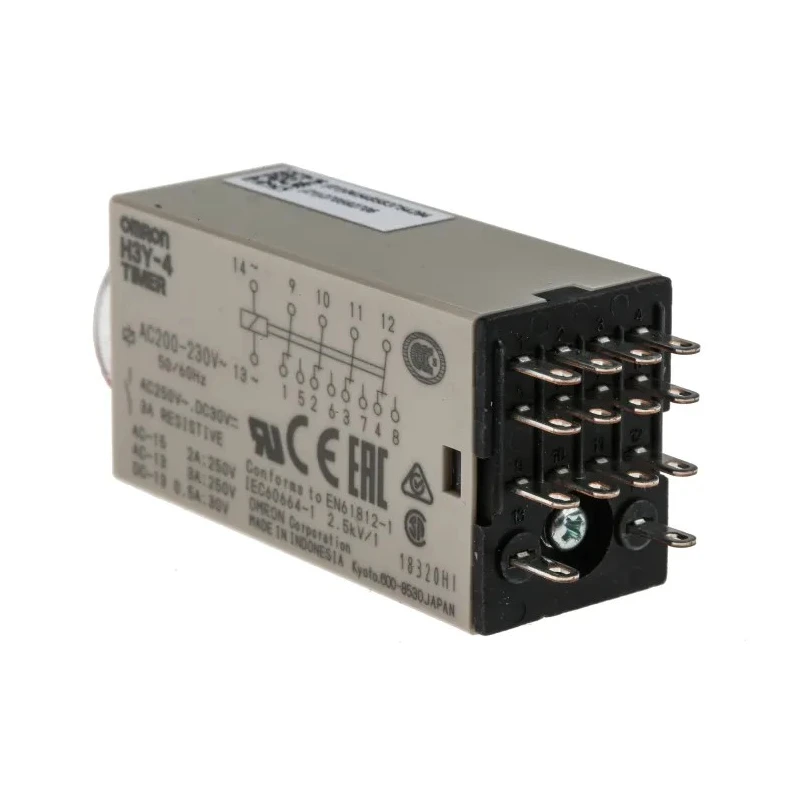

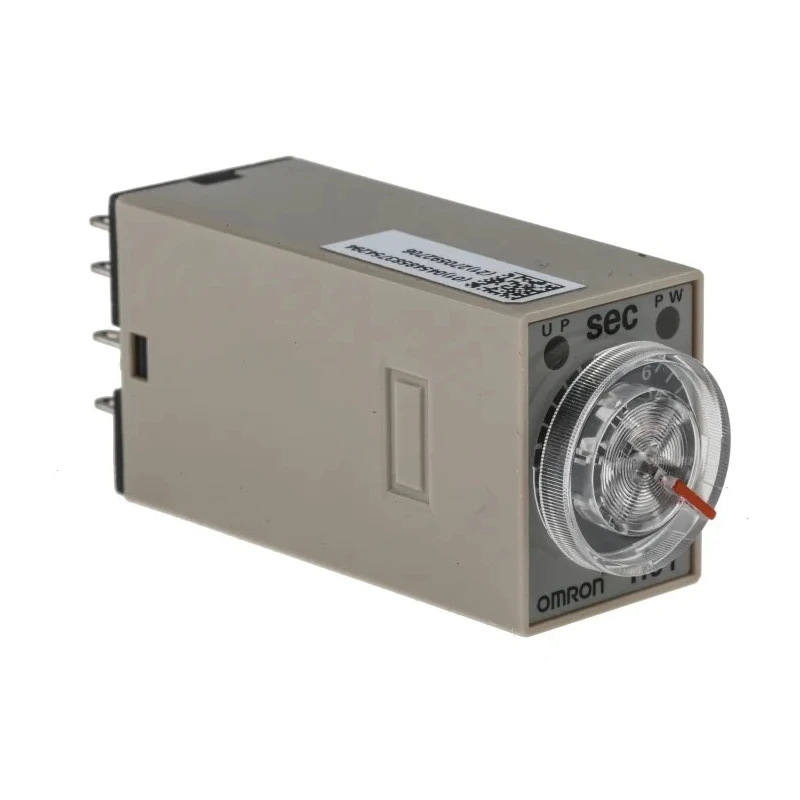

Omron DIN Rail Surface Mount Timer Relay, 4-Contact 4PDT, 125 V dc 200-230 V ac, 0.5 to 10 s ON Delay H3Y-4 AC200-230 10S

Free Delivery in India | Lowest Global Shipping Charges

Omron DIN Rail Surface Mount Timer Relay, 4-Contact 4PDT, 125 V dc 200-230 V ac, 0.5 to 10 s ON Delay H3Y-4 AC200-230 10S

Name: Omron DIN Rail Surface Mount Timer Relay, 4-Contact 4PDT, 125 V dc 200-230 V ac, 0.5 to 10 s ON Delay H3Y-4 AC200-230 10S
Brand: Omron
SKU: 156590
Price: 107.2 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	63mm
Length	28mm
Model	H3Y-4 AC200-230 10S
IP Rating	IP40
Mode	ON Delay
Width	21.5mm
Mount Type	DIN Rail, Surface Mount
Series	H3Y
Maximum Operating Temperature	50°C
Contact Configuration	4PDT
Minimum Operating Temperature	-10°C
Time Range	0.5 to 10 s
Terminal type	Plug-In
Standards/Approvals	CSA C22.2 No. 14, EN61812-1, IEC60664-1, Lloyds, UL508
Number of Contacts	4
Number of Timer Functions	1
Switching Voltage	250, 125V ac
Contact Current	5A
Supply DC Voltage	125 V dc
Timing Adjustment	Knob
Supply AC Voltage	200, 230V ac
4PDT on delay timer,0.1-5sec 240VacBrand	NEUTRAL

Key Features

Compatible with 125 V dc and 200 to 230 V ac supply voltages.
Time range adjustable via knob from 0.5 to 10 seconds.
Supports up to 5 A contact current with 250 V ac switching voltage.
Compact dimensions for DIN rail or surface mounting.
IP40 rated enclosure for basic dust protection.
Operating temperature range from -10°C to 50°C.
LED indicators for power and output status monitoring.
Complies with CSA C22.2 No. 14, EN61812-1, IEC60664-1, Lloyds, and UL508 standards.

Product Description

Omron H3Y-4 AC200-230 10S DIN Rail and Surface Mount Timer Relay is designed for industrial automation requiring reliable time-delay control. It integrates a 4PDT contact configuration with a time range adjustable from 0.5 to 10 seconds, using an ON delay mode to precisely manage operational timing.

This timer relay supports dual supply ranges of 125 V dc and 200 to 230 V ac, accommodating diverse control circuits. Its compact dimensions (63 mm height, 28 mm length, and 21.5 mm width) enable installation in compact spaces using DIN rail or surface mounting methods.

Equipped with LED indicators, the relay provides clear visual feedback of power and output states. The IP40 rating ensures protection against solid foreign objects, suited for typical indoor industrial environments. It supports a contact current of up to 5 A at 250 V ac, making it suitable for controlling machinery cycle times, HVAC systems, lighting, and other time-sensitive automation functions.

The device meets key international standards including CSA C22.2 No. 14, EN61812-1, IEC60664-1, Lloyds, and UL508, ensuring reliable, compliant performance. Compatible with supply voltages of 125 V dc and 200 to 230 V ac.

Adjustable ON delay timer from 0.5 to 10 seconds. 4PDT contact configuration for versatile switching applications. Plug-in type terminals for quick installation or replacement. LED indicators for operational status monitoring.

IP40 protection suitable for industrial indoor environments. Temperature operating range of -10 to 50°C ensures reliable function in varied conditions. Compact form factor fitting DIN rail and surface mount standards. Conforms to international safety and performance standards.

Ideal for automation in industrial, HVAC, lighting, and machinery control.

This Omron timer relay serves multiple industrial automation industries requiring precise timing control. It is optimized for integration with MY series power relays and external power supplies. Explore more Timer Relays and Omron products at EnvMart for your automation solutions.
