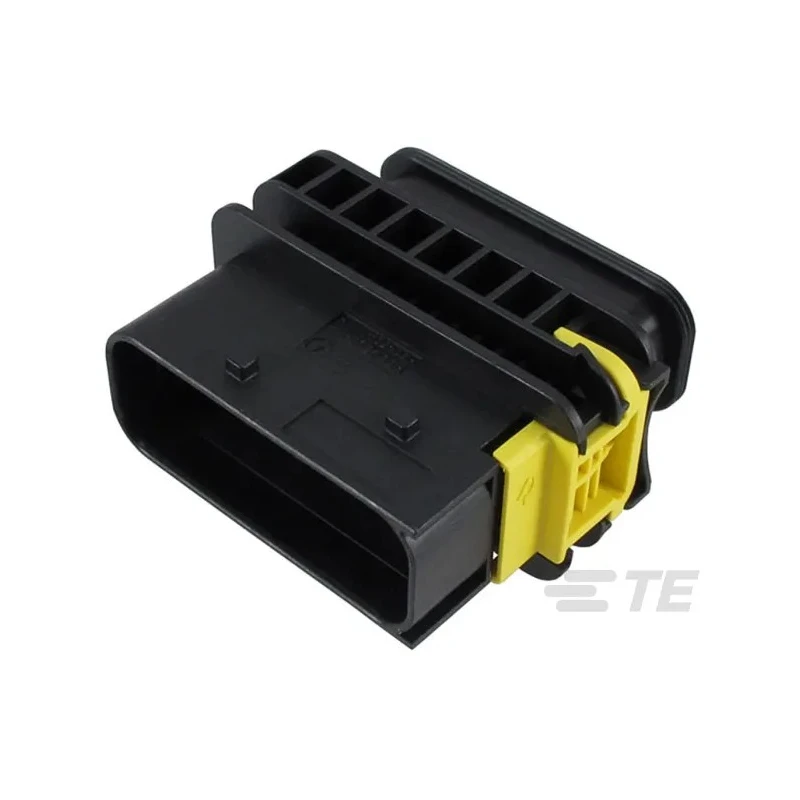

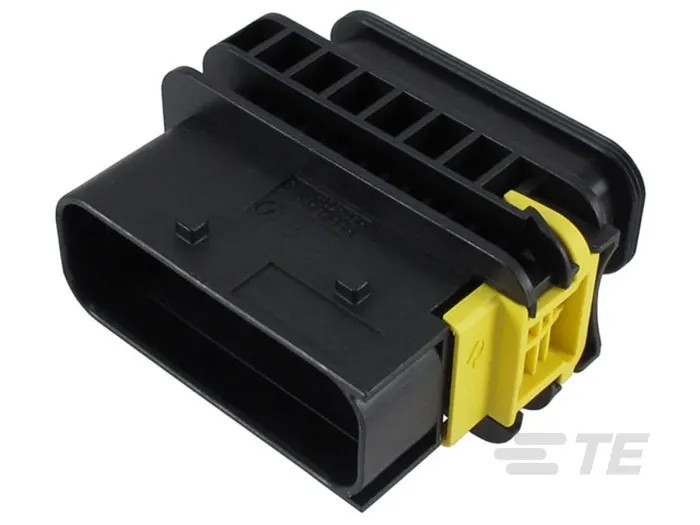

TE Connectivity HDSCS Automotive Connector Female Black Plug-in 16 Way Crimp Termination 1-1564528-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity HDSCS Automotive Connector Female Black Plug-in 16 Way Crimp Termination 1-1564528-1

Name: TE Connectivity HDSCS Automotive Connector Female Black Plug-in 16 Way Crimp Termination 1-1564528-1
Brand: TE Connectivity
SKU: 156341
Price: 7.26 USD
Availability: InStock



Category Automotive Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Current	20, 40A
Height	27mm
Depth	47.1mm
IP Rating	IP67, IP6K9K
Width	52.6mm
Gender	Female
Mount Type	Plug-in
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Series	HDSCS
Termination Type	Crimp
Maximum Operating Temperature	140°C
Sub Type	Tab Housing
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	EU RoHS, EU ELV
Contact Plating	Tin
Number of Contacts	16

Key Features

This female automotive connector features a robust black fibreglass reinforced polybutylene terephthalate housing.
It has 16 contacts arranged in 2 rows, supporting crimp termination for secure connections.
The connector is built for currents of 20 to 40 amps and uses tin plating on contacts for corrosion resistance.
Rated to IP67 and IP6K9K standards, it ensures environmental protection against dust and high-pressure water jets.
Operating temperature range spans from -40°C to 140°C, suitable for harsh automotive environments.
The plug-in mount type allows easy and secure mating with compatible connectors.
The HDSCS series offers heavy-duty, environmentally sealed connectors with a slide lock for reliable mating.
Designed for cable to cable and cable to device applications accepting AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts.

Product Description

TE Connectivity 1-1564528-1 HDSCS Automotive Connector female is a heavy-duty, environmentally sealed connector designed for demanding automotive electrical systems. Featuring a durable black housing made of fibreglass reinforced polybutylene terephthalate, this plug-in connector ensures long-lasting mechanical and environmental protection, meeting IP67 and IP6K9K standards for dust-tightness and resistance to high-pressure water jets.

This 16-way female connector includes two rows of contacts with crimp termination, supporting currents of 20 to 40 amps, providing reliable power and signal transmission. The contact plating is tin, enhancing corrosion resistance in automotive environments. It operates efficiently over a temperature range from -40°C to 140°C, making it ideal for extreme conditions encountered in vehicles and industrial equipment.

The compact dimensions (27mm height, 52.6mm width, 47.1mm depth) allow easy integration in cable-to-cable or cable-to-device assemblies. The HDSCS series design includes a slide lock mechanism to ensure secure mating and robust connection integrity. This model accepts AMP MCP contacts of various sizes (6.3, 4.8, 2.8, 1.5K) to support diverse wiring applications.

This connector is widely used across automotive, industrial, and commercial sectors requiring heavy-duty and sealed electrical connectors. The durable housing material and plating standards comply with EU RoHS and ELV directives, ensuring regulatory compliance.

It is a high-performance connector suitable for harsh environments needing reliable electrical connections with environmental sealing. For automotive and industrial connector needs, TE Connectivity HDSCS connectors are an established choice on EnvMart by professionals seeking dependable, high-quality components.
