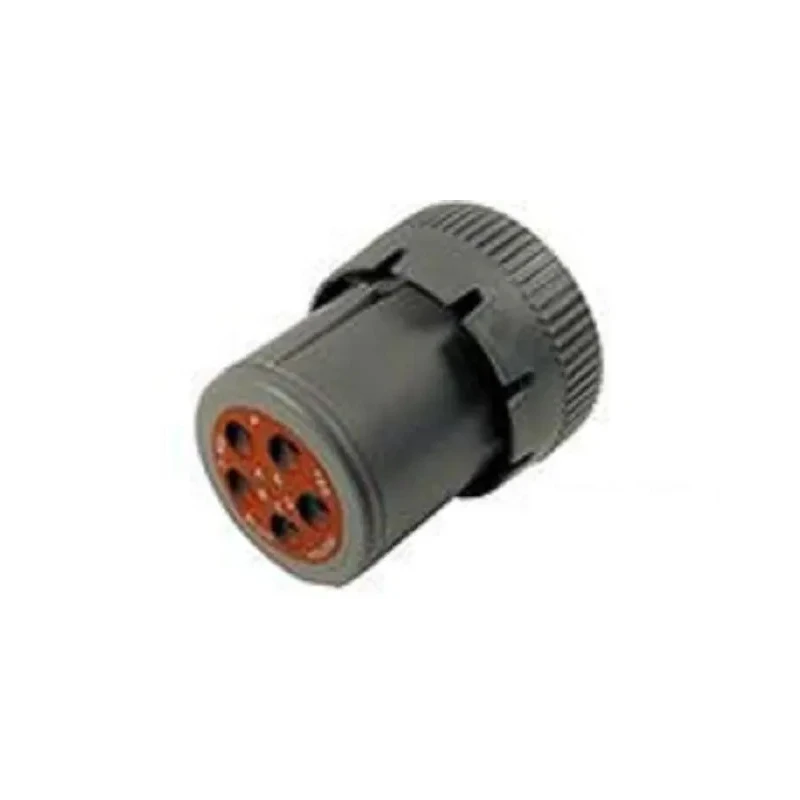

Deutsch HD16 Automotive Connector Male 5 Way Multi-Color Polyamide Housing 13A IP68 IP6K9K HD16-5-16S

Free Delivery in India | Lowest Global Shipping Charges

Deutsch HD16 Automotive Connector Male 5 Way Multi-Color Polyamide Housing 13A IP68 IP6K9K HD16-5-16S

Name: Deutsch HD16 Automotive Connector Male 5 Way Multi-Color Polyamide Housing 13A IP68 IP6K9K HD16-5-16S
Brand: Deutsch
SKU: 156336
Price: 8.79 USD
Availability: InStock



Category Automotive Connector Brand Deutsch Condition New

Specifications

Country of Origin	India
Brand	Deutsch
Colour	Green, Grey, Yellow, White, Red, Orange, Black, Blue
Current	13A
Height	40.51mm
Model	HD16-5-16S
IP Rating	IP68, IP6K9K
Width	30.94mm
Gender	Male
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	HD16
Sub Type	Automotive Connector Housing
Standards/Approvals	UL183, SAE J1939
Contact Plating	Tin over Nickel
Number of Contacts	5

Key Features

Constructed with a durable polyamide housing for high environmental resistance.
Designed for a current rating of 13 amperes ensuring reliable power delivery.
Meets stringent IP68 and IP6K9K ingress protection standards for water and dust resistance.
Complies with UL183 and SAE J1939 standards for safety and automotive performance.
Compact dimensions with 40.51mm height and 30.94mm width for space-efficient installation.
Features tin-over-nickel plated copper alloy contacts to ensure conductivity and corrosion resistance.
Male connector type suitable for secure mating with compatible female connectors.

Product Description

Deutsch HD16-5-16S is a high-quality automotive connector male designed with a 5-way polyamide housing ensuring excellent durability and environmental resistance essential for automotive electrical systems.

This connector is engineered to carry a current of 13 amperes, making it suitable for a wide range of automotive electrical applications that require reliable power transmission.

The multi-color wiring scheme, including green, grey, yellow, white, red, orange, black, and blue contacts, facilitates easy wiring and identification during installation and maintenance.

With an ingress protection rating of IP68 and IP6K9K, the HD16-5-16S connector is protected against dust, high-pressure water jets, and harsh environmental conditions, ensuring long-term operational reliability.

The connector complies with recognized industry standards such as UL183 and SAE J1939, certifying its suitability for demanding automotive applications and safety requirements. Its compact form factor, standing 40.51 mm high and 30.94 mm wide, allows integration into cramped spaces within vehicle assemblies without compromising performance.

The contact material is a copper alloy plated with tin over nickel to provide optimal electrical conductivity and corrosion resistance across its service life. Durable polyamide housing for environmental protection. Multi-color coded contacts for ease of wiring.

Current rating of 13A suitable for automotive electrical systems. Ingress protection IP68 and IP6K9K for dust and water resistance. Meets UL183 and SAE J1939 industry standards. Compact dimensions optimize space utilization.

Corrosion-resistant copper alloy contacts with tin-nickel plating. Male connector type for compatibility with standard automotive connectors. This Deutsch connector is ideal for use in automotive, commercial vehicle, industrial machinery, and other environments requiring rugged, reliable electrical connections.
