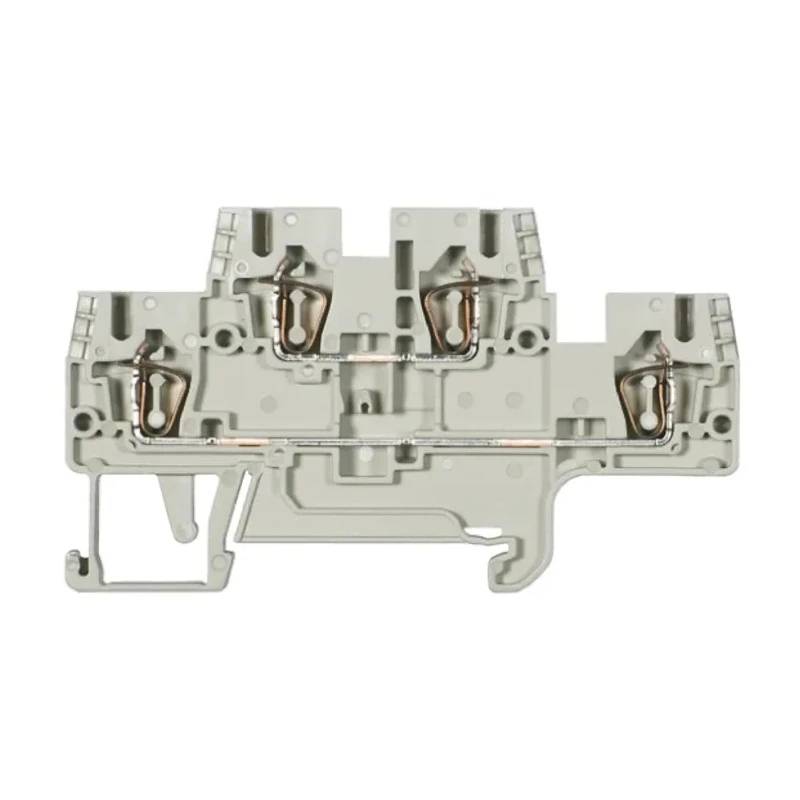

Wieland WKFN Series DIN Rail Terminal Block Grey, 2.5mm², 2-Level, Spring Clamp, 500V, 24A 56.703.7055.0

Free Delivery in India | Lowest Global Shipping Charges

Wieland WKFN Series DIN Rail Terminal Block Grey, 2.5mm², 2-Level, Spring Clamp, 500V, 24A 56.703.7055.0

Name: Wieland WKFN Series DIN Rail Terminal Block Grey, 2.5mm², 2-Level, Spring Clamp, 500V, 24A 56.703.7055.0
Brand: Wieland
SKU: 324684
Price: 3.82 USD
Availability: InStock



Category DIN Rail Terminal Block Brand Wieland Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	Wieland
Colour	Grey
Series	WKFN
Termination Type	Spring Clamp
Number of Levels	2
Number of Positions	2
Sub Type	Double-Level Feed Through
Pitch	5mm
Hazardous Area Certification	ATEX
Standards/Approvals	USA Ex, ATEX, CAN-Ex, UR
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	12AWG
Cable CSA	2.5mm²
Terminal Block Current	24A
RS PRO Double Level Terminal Block Grey, 2.5mm², 2-Level, Spring ClampBrand	RS PRO

Key Features

Rated for 500V voltage and 24A current capacity.
Compact design with 2-level feed through and 2 positions.
Spring clamp termination ensures secure and reliable connections.
Certified for hazardous areas with ATEX, USA Ex, CAN-Ex, and UR approvals.
Compatible with wire sizes from AWG22 to AWG12 and 5mm pitch spacing.
Constructed with high-quality materials suitable for industrial electrical applications.
Designed for easy DIN rail mounting in control panels and electrical cabinets.
Grey color enhances visibility and organization in wiring setups.

Product Description

Wieland 56.703.7055.0 WKFN Series DIN Rail Terminal Block is a high-quality electrical connector designed for efficient wire termination in industrial and commercial electrical installations. Rated for 500V and 24A current, this terminal block offers reliable and safe electrical connections with a spring clamp termination mechanism.

Featuring a 2-level feed-through design with 2 positions, the terminal block supports cable cross-sections up to 2.5mm² and wire sizes ranging from AWG22 to AWG12, allowing versatile use across different wiring requirements. The 5mm pitch between terminals enables compact and organized wiring layouts.

This product is grey in color and certified for use in hazardous environments with ATEX, USA Ex, CAN-Ex, and UR approvals, making it suitable for installations in challenging industrial settings requiring strict safety standards.

The WKFN Series terminal block’s design ensures easy and secure DIN rail mounting, making it ideal for electrical control panels, distribution boards, and automation systems. It facilitates efficient wiring management and maintenance thanks to the spring clamp termination, providing vibration-resistant and low-maintenance connections.

Typical industrial applications include power distribution, control systems, electrical enclosures, and building automation. The durable construction and compliance with international standards ensure longevity and operational safety in demanding environments.

Rated for 500V voltage and 24A current capacity. Compact design with 2-level feed through and 2 positions. Spring clamp termination ensures secure and reliable connections. Certified for hazardous areas with ATEX, USA Ex, CAN-Ex, and UR approvals.

Compatible with wire sizes from AWG22 to AWG12 and 5mm pitch spacing. Constructed with high-quality materials suitable for industrial electrical applications. Designed for easy DIN rail mounting in control panels and electrical cabinets.

Grey color enhances visibility and organization in wiring setups. Explore more DIN Rail Terminal Blocks and connectors at EnvMart to find the right solutions for your electrical wiring projects.
