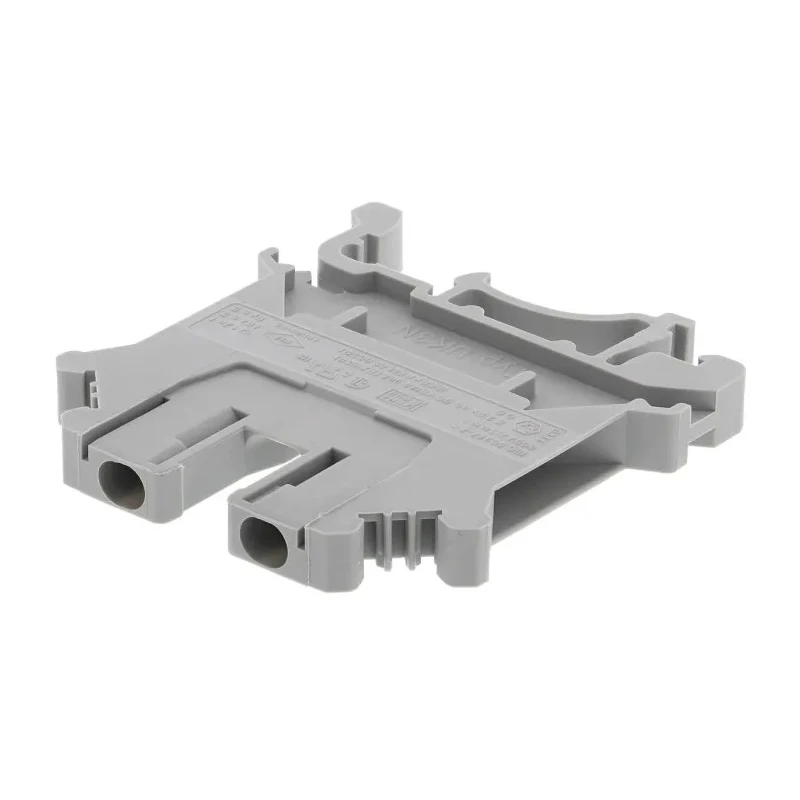

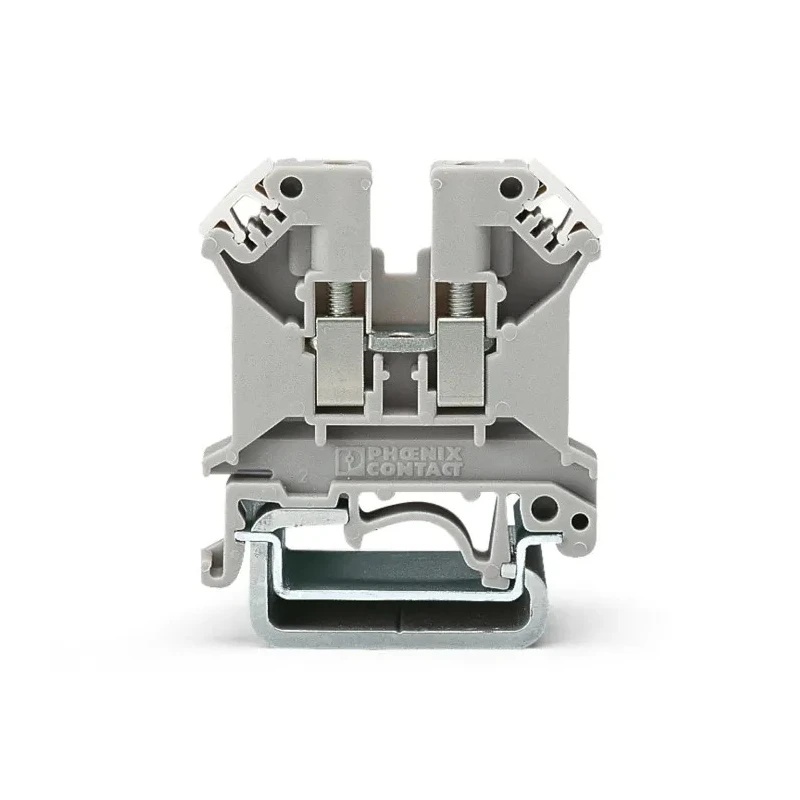

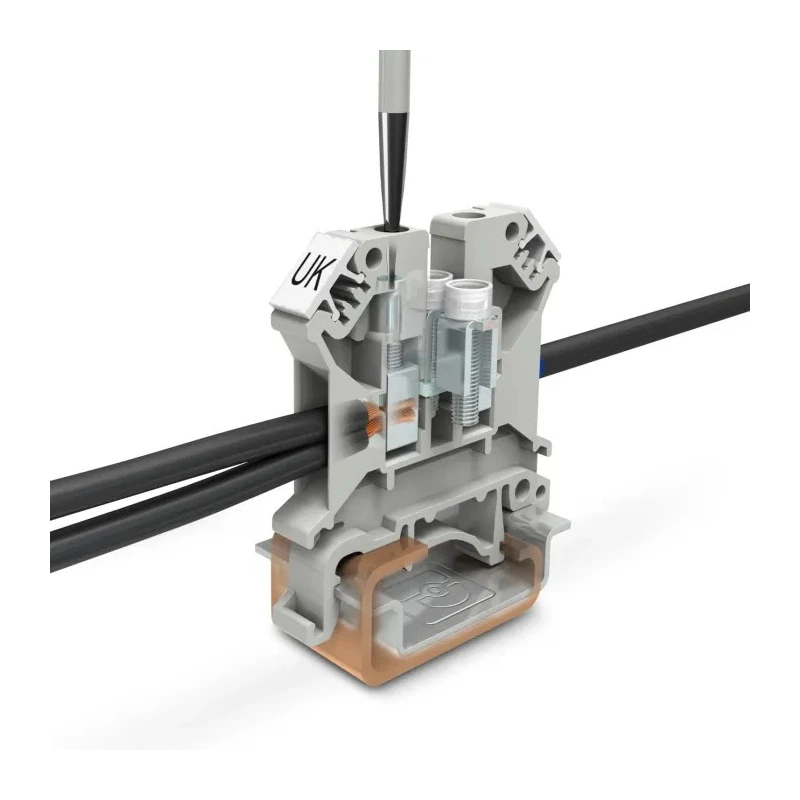

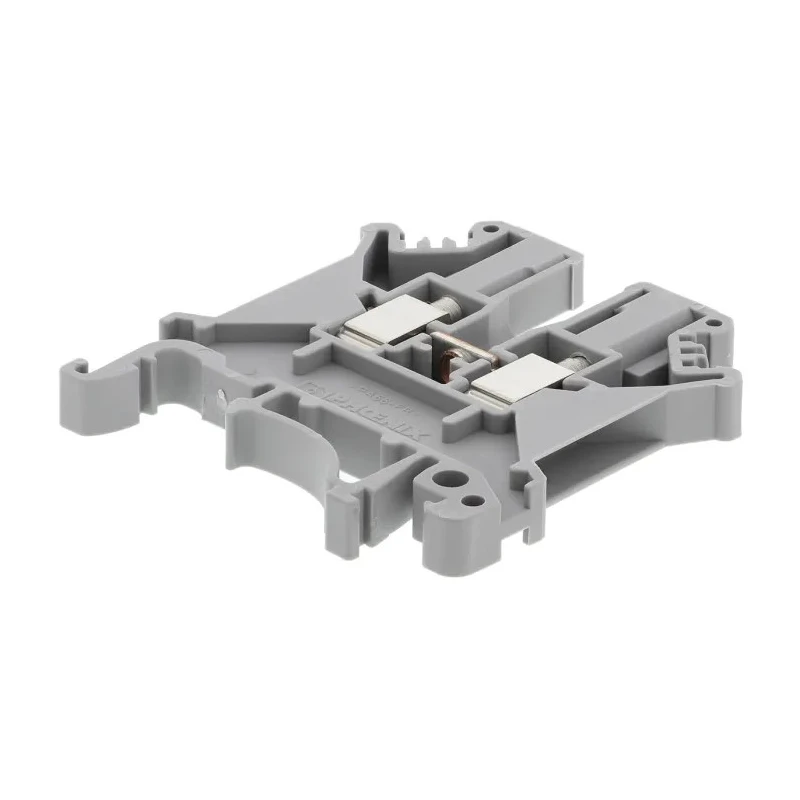

Phoenix Contact UK3 N Series Feed Through Terminal Block Grey, 0.2mm² to 4mm², 32A, 800V, 1-Level Screw Termination 3001501

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact UK3 N Series Feed Through Terminal Block Grey, 0.2mm² to 4mm², 32A, 800V, 1-Level Screw Termination 3001501

Name: Phoenix Contact UK3 N Series Feed Through Terminal Block Grey, 0.2mm² to 4mm², 32A, 800V, 1-Level Screw Termination 3001501
Brand: PHOENIX CONTACT
SKU: 324760
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Voltage	800V
Brand	Phoenix Contact
Colour	Grey
Model	3001501
Series	UK3 N
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	1
Sub Type	Feed Through
Minimum Operating Temperature	-60°C
Hazardous Area Certification	IECEx KEM 06.0034 U, KEMA 98 ATEX 1651 U
Standards/Approvals	RS, UL, CCA, CSA, ABS, cUL, cULus, DNV, EAC, IEC 60947-7-1, KEMA-KEUR, KR, NK, LR, PRS
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Cable CSA	0.2, 4mm²
Terminal Block Current	32A

Key Features

Supports conductor sizes ranging from 0.2mm² to 4mm² for flexible wiring.
Rated for a current of 32A and voltage up to 800V, suitable for heavy-duty applications.
Features a single-level screw termination ensuring secure and stable connections.
Constructed with durable grey housing for easy identification in wiring setups.
Suitable for use in hazardous areas with IECEx and ATEX certifications.
Operates effectively within a temperature range of -60°C to 110°C for extreme environments.
Compatible with NS32 and NS35 mounting rails for versatile installation options.
Meets numerous international standards including UL, CSA, IEC 60947-7-1, and KEMA-KEUR.

Product Description

Phoenix Contact 3001501 UK3 N Series Feed Through Terminal Block is engineered to provide dependable electrical connections in complex wiring applications within industrial automation, manufacturing, and power distribution systems. This component supports conductor cross-sections from 0.2mm² to 4mm², accommodating a wide range of wiring sizes for flexible circuit designs.

The terminal block is rated for 32A current and withstands voltages up to 800V, making it suitable for demanding electrical environments. Its screw termination method ensures a robust and reliable connection that maintains performance under vibration and mechanical stress.

Its grey color casing aids visual identification within wiring assemblies, reducing installation errors. Certified according to IECEx KEM 06.0034 and KEMA 98 ATEX 1651 U standards, this terminal block is approved for use in hazardous atmospheres, enhancing safety in potentially explosive environments.

The operating temperature range of -60°C to 110°C ensures reliable function under extreme thermal conditions commonly encountered in industrial and outdoor setups. Mounting compatibility with NS32 and NS35 profiles allows easy integration into existing DIN rail frameworks.

Supports conductor sizes from 0.2mm² to 4mm² for flexible use. Rated 32A current and 800V voltage for high electrical loads. Single-level screw-type termination for secure connection. Grey housing provides clear wiring identification.

IECEx and ATEX Certified for hazardous area applications. Wide temperature range of -60°C to 110°C for harsh environments. Fits NS32 and NS35 DIN rail mounting standards. Complies with international approvals including UL, CSA, and IEC 60947.

This terminal block is ideal for industrial automation panels, complex electronic assemblies, and power distribution systems, delivering safety and reliability in challenging electrical setups. It supports efficient wiring practices and meets rigorous global standards, facilitating compliance and performance assurance.
