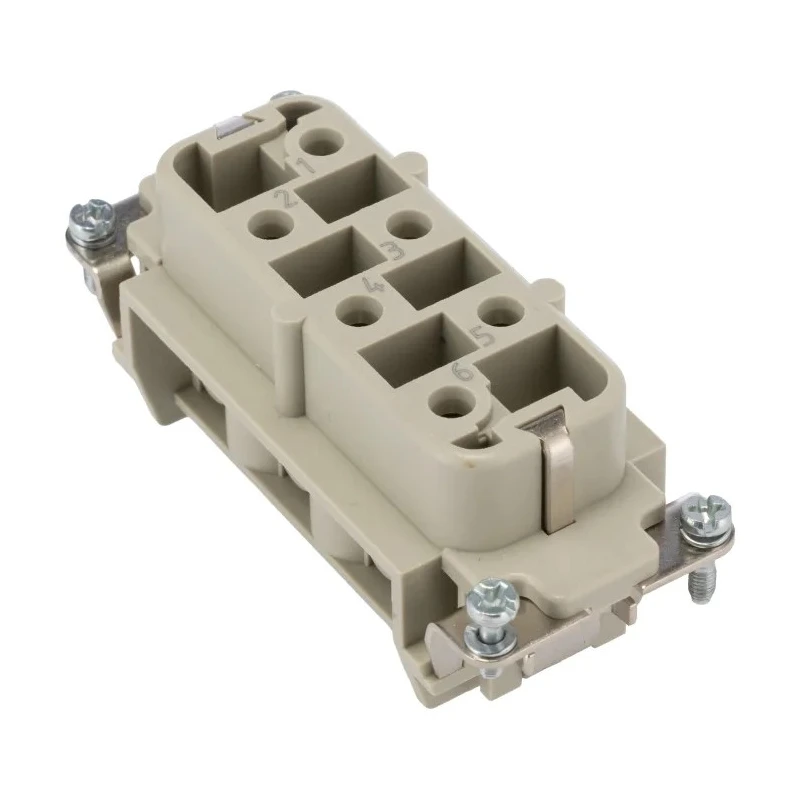

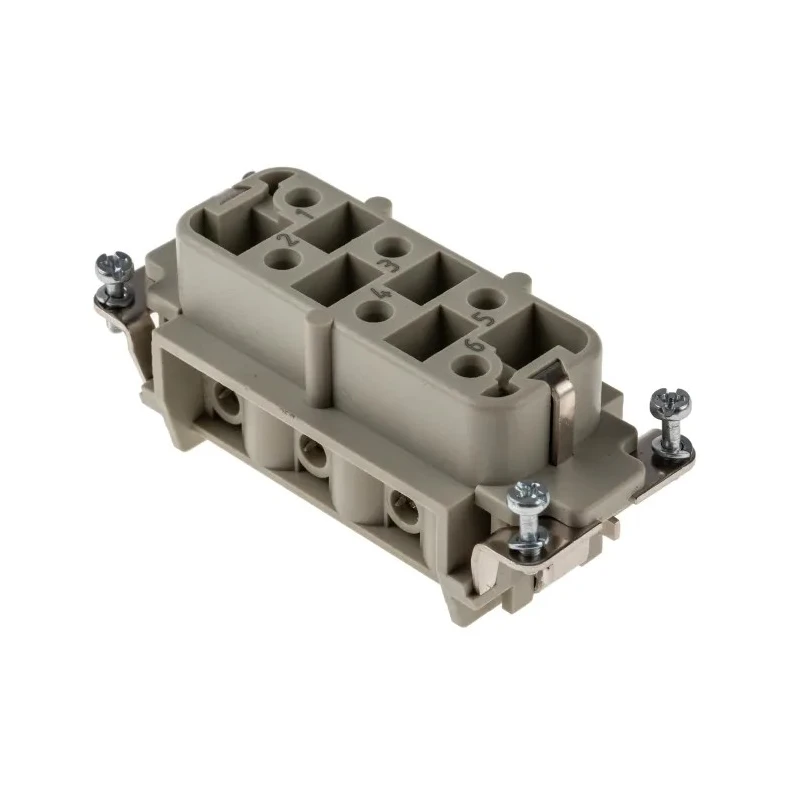

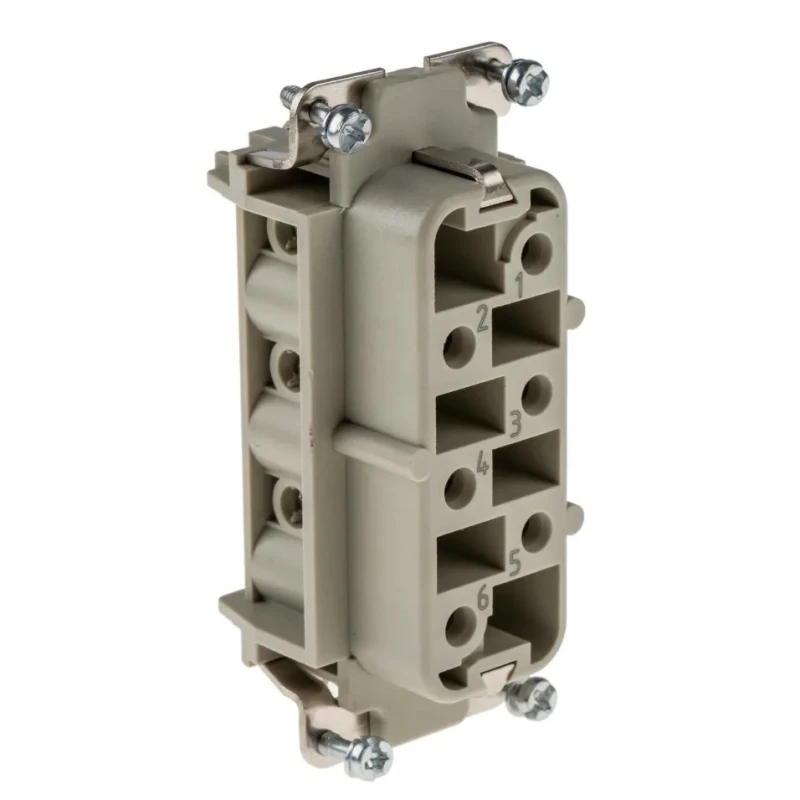

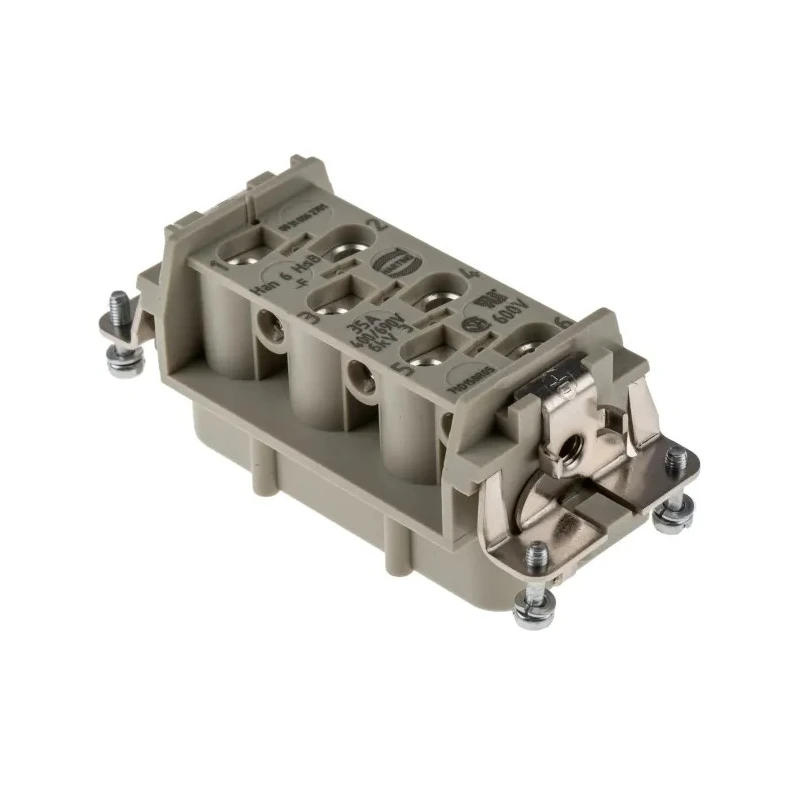

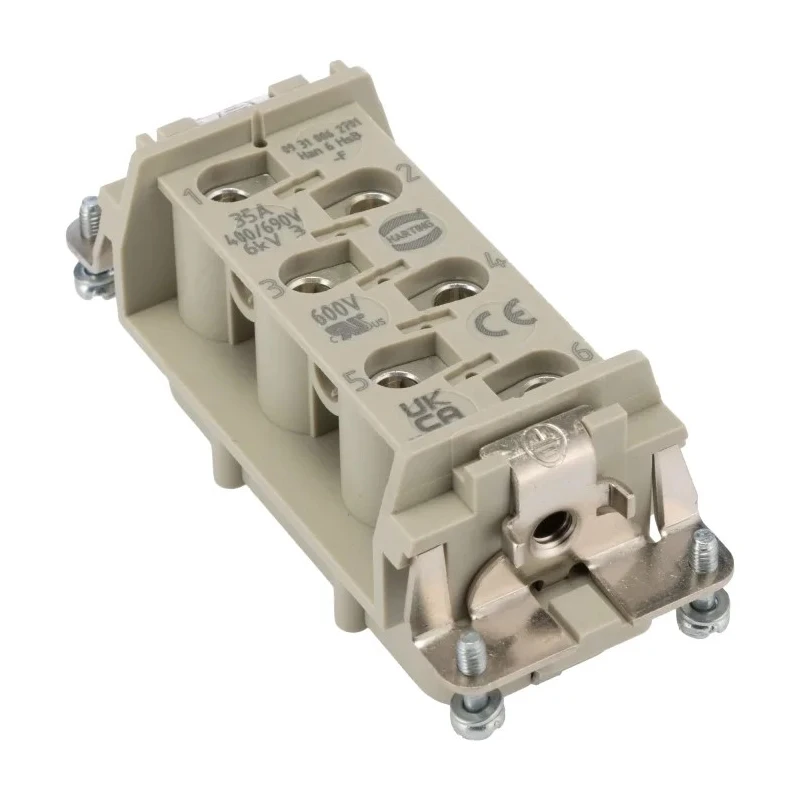

HARTING Heavy Duty Power Connector Insert 35A 690V Han HSB Series Female 7 Contacts 09310062701

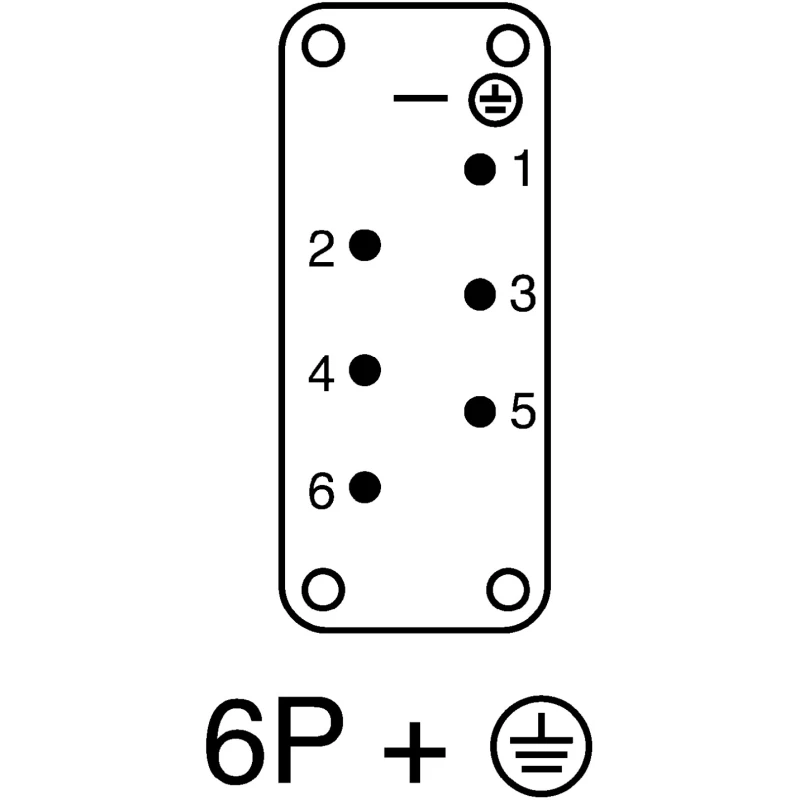

HARTING 09310062701 Heavy Duty Power Connector Insert from the Han HSB Series is a female cable-mounted connector insert designed for robust industrial power distribution applications. Rated for 35 A continuous current and 690 V voltage, this insert features 7 contacts arranged in 2 rows, suitable for mixed conductor sizes ranging from 1.5 mm² to 6 mm². The use of silver-plated copper alloy contacts ensures low contact resistance, enhancing electrical performance. The polycarbonate body provides UL94 V-0 flammability performance, ensuring safety in demanding environments.

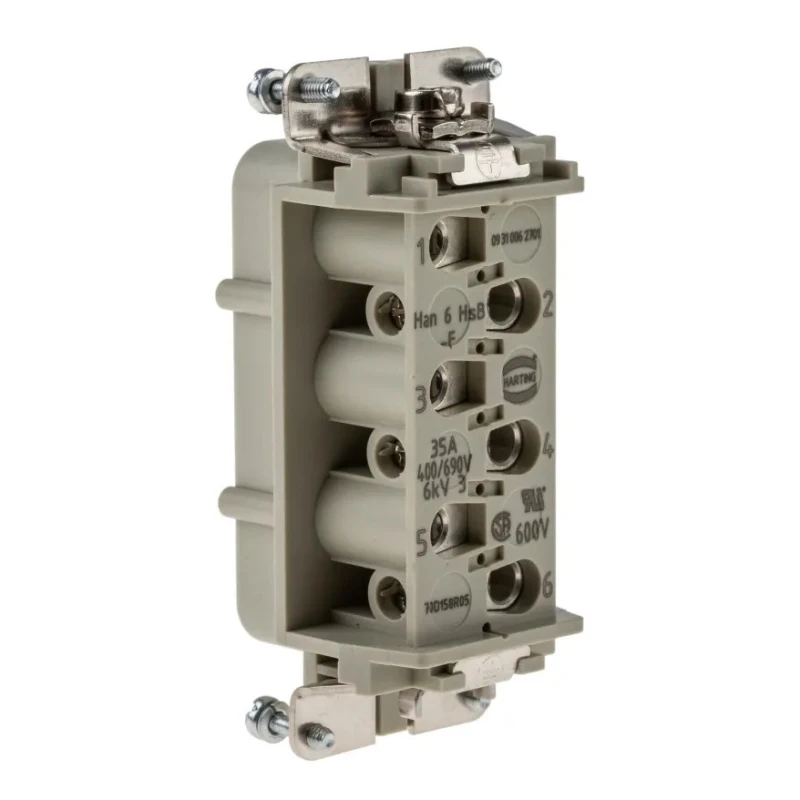

The connector insert is designed for straight orientation and uses screw terminations with M4/M5 torque values for secure and reliable clamping. It supports at least 500 mating cycles, making it suitable for maintenance-intensive systems requiring frequent servicing or replacement. Operating reliably in extreme ambient temperatures from -40 °C to +125 °C, it is ideal for harsh industrial settings such as factory automation, mobile machinery, and plant equipment power distribution.

The product is compatible with HARTING’s modular heavy-duty connector housings and can be used as a replaceable insert within control cabinets. Its dedicated protective earth contact facilitates safe grounding connections. This connector should not be mated or unmated under load and should be polarized with other connectors in series to avoid incorrect coupling.

Rated for 35 A continuous current to support high-load circuits. Withstands up to 690 V between conductors for industrial power distribution. Silver-plated copper alloy contacts reduce electrical resistance. Accepts conductor cross-sections of 1.5 mm² to 6 mm² for wiring flexibility.

Polycarbonate insert body provides UL94 V-0 flame retardant feature. Screw terminations with specific torque ensure secure and reliable clamping. Designed for 500 mating cycles supporting repeated connection and maintenance.

Ambient operating temperature range from -40 °C to +125 °C for industrial environments. Compatible with modular heavy-duty connector housings for control cabinets. Includes dedicated protective earth contact for safe grounding.

Constructed in Germany, this HARTING connector insert meets industrial specification requirements for power distribution systems. It is ideal for use in heavy-duty applications in manufacturing, automation, and mobile industrial equipment. Browse EnvMart’s extensive catalog for compatible heavy duty power connector housings and accessories for a complete industrial connector solution.
