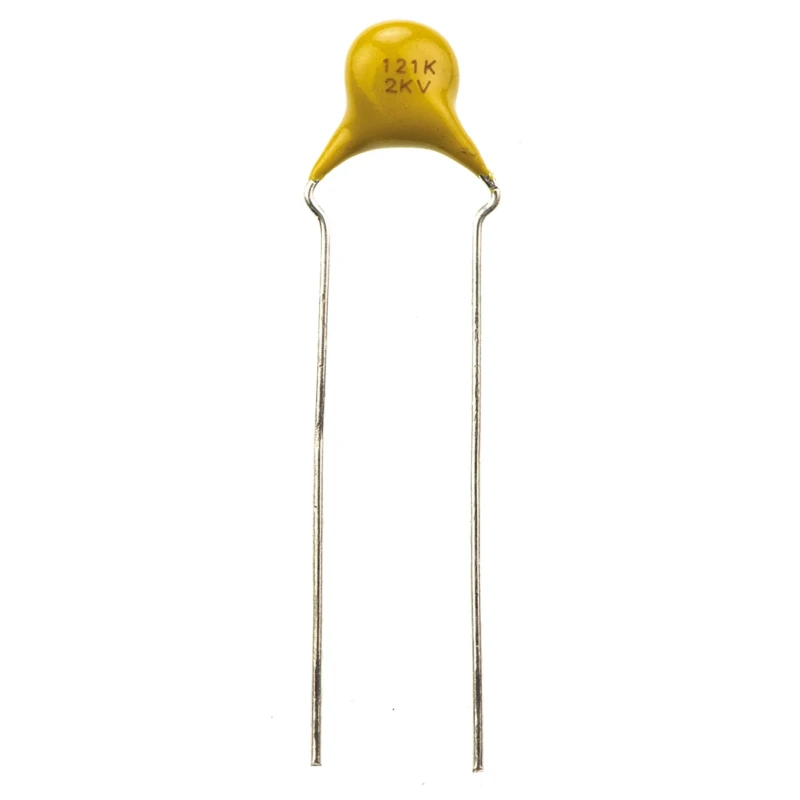

Vishay Single Layer Ceramic Capacitor 120 pF 2 kV DC ±10% Tolerance S3N Dielectric Radial Through Hole 125 F121K25S3NP63K7R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2kV dc |
| Diameter | 6.5mm |
| Brand | Vishay |
| Height | 40mm |
| Model | F121K25S3NP63K7R |
| Mount Type | Through Hole |
| Series | F |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 120pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Radial |
| Dissipation Factor | 0.2% |
| Standards/Approvals | EC, RoHS |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | S3N |
| Suppression Class | Class I |
Key Features
- Utilizes S3N dielectric suitable for high frequency and SMPS circuits.
- Disc package with radial through hole mount ensures robust mechanical stability.
- Maximum operating temperature of 125 °C enables high reliability in harsh environments.
- Dissipation factor is low at 0.2%, minimizing energy loss during operation.
- Lead diameter options of 0.6 mm or 0.8 mm with 2 pins and kinked leads for flexible mounting.
- Compliant with EC and RoHS standards ensuring environmental safety.
- Designed for use in SMPS, high frequency ballast, snubber, and high voltage circuits.
- Encapsulation made of epoxy resin compliant with UL 94 V-0 flammability rating.
Product Description
Vishay F121K25S3NP63K7R single layer ceramic capacitor with 120 pF capacitance and a voltage rating of 2 kV DC offers reliable performance for electronic circuit applications demanding precision and high stability. It features a S3N dielectric that classifies it as a ceramic class 1 capacitor, ideal for switch mode power supplies (SMPS), high frequency ballasts, snubber circuits, and various high voltage applications.
This capacitor utilizes a disc package with radial terminal pins designed for through hole mounting on PCBs. The pins are made of tinned copper available in diameters of 0.6 mm or 0.8 mm, and the leads are kinked to facilitate mounting stability. The product dimensions are a diameter of 6.5 mm and height of 40 mm, making it suitable for compact assemblies.
Operating temperature ranges from -30 °C to a maximum of 125 °C, enabling deployment in a broad range of industrial and commercial electronics environments. The low dissipation factor of 0.2% ensures minimal energy loss and high efficiency. The capacitor’s encapsulation is epoxy resin that meets the UL 94 V-0 flammability standard for enhanced safety.
Certified to EC and RoHS compliance standards, this capacitor meets environmental regulations for electronics manufacturing. Its tolerance of ±10% supports use in circuits requiring moderate precision. This component is well suited for industrial, laboratory, manufacturing, HVAC controllers, and other commercial electronic applications.
Utilizes high-quality materials and advanced manufacturing processes. Designed to provide low losses and high capacitance per volume. Radial through hole mounting for secure PCB attachment. Reliable operation under high voltage and temperature conditions.
Encapsulation flammable resistant to UL 94 V-0 standard. Applications include SMPS, ballast circuits, and high voltage snubbers. Complies with IEC 60384-9 and EIA 198 standards. Ideal for electronics requiring high reliability and durability.
Package includes one single ceramic capacitor in a disc case. Explore more capacitors and passive component solutions on EnvMart for your industrial and research needs.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 120 pF.
It has a maximum voltage rating of 2 kV DC.
The capacitor has a diameter of 6.5 mm and a height of 40 mm.
The operating temperature ranges from -30 °C to a maximum of 125 °C.
This capacitor is designed for radial through hole mounting.
It utilizes an S3N dielectric, classifying it as a ceramic class 1 capacitor.
The dissipation factor is low at 0.2%, minimizing energy loss during operation.
This model has 2 pins.
It is compliant with EC and RoHS standards, ensuring environmental safety.
The tolerance is ±10%.
It is designed for use in SMPS, high frequency ballast, snubber, and high voltage circuits.
The encapsulation is made of epoxy resin that meets the UL 94 V-0 flammability rating.
