HOBUT CT132 Series Current Transformer 40 A 2.5 VA 21mm Bore CT132

Free Delivery in India | Lowest Global Shipping Charges

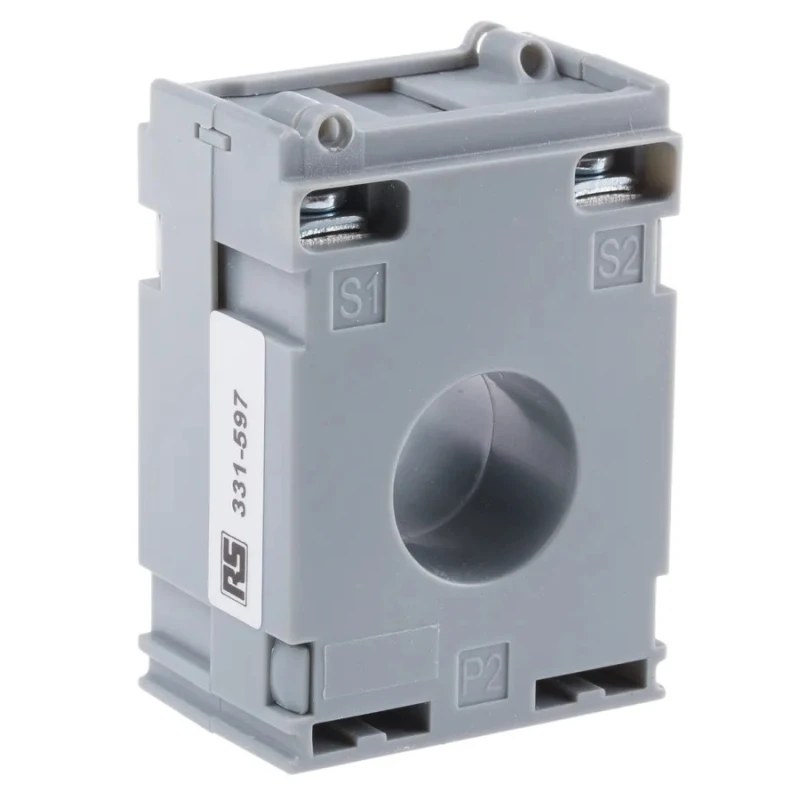

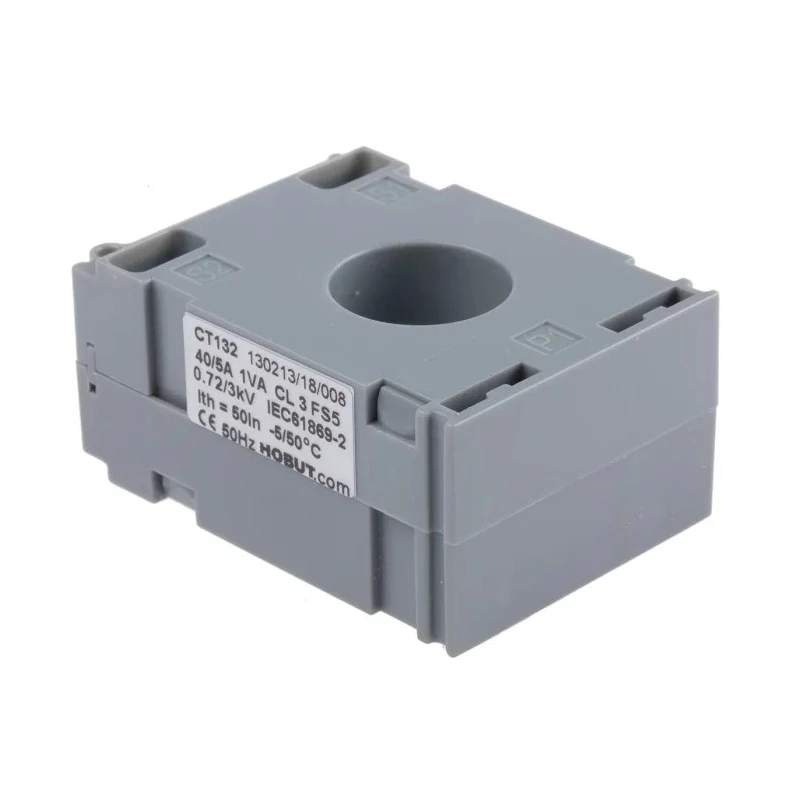

HOBUT CT132 Series Current Transformer 40 A 2.5 VA 21mm Bore CT132

Name: HOBUT CT132 Series Current Transformer 40 A 2.5 VA 21mm Bore CT132
Brand: HOBUT
SKU: 155743
Price: 22.31 USD
Availability: InStock



Category Current Transformer Brand HOBUT Condition New

Specifications

Country of Origin	United Kingdom
Brand	HOBUT
Length	65mm
Model	CT132
Depth	30mm
Width	45mm
Mount Type	DIN Rail
Ambient temperature range	-30 to 85°C
Series	CT132
Maximum Operating Temperature	85°C
Minimum Operating Temperature	30°C
Bore Diameter	21mm
Secondary current	5A
Terminal type	Sealable Terminal Cover
Primary Current	40A
Continuous Current	1.2 x rated current
Rated System Voltage	0.72/3kV
RS PRO Current Transformer 150 A 21mm BoreBrand	RS PRO

Key Features

Suitable for primary currents from 40A to 300A with 5A standard secondary current.
Equipped with sealable terminal covers for secure connections.
Compact dimensions of H65 x W45 x D30 mm with a 21mm bore diameter aperture.

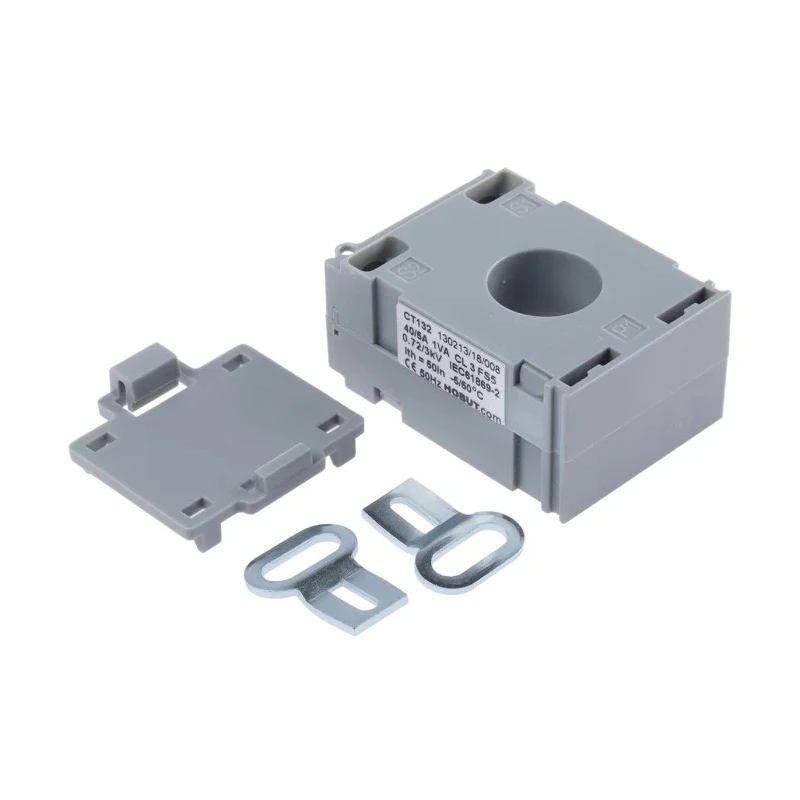

Mount type is DIN rail with mounting feet supplied for installation flexibility.
Rated for a system voltage of 0.72/3kV with ambient temperature range from -30 to 85°C.
Continuous current rating of 1.2 times the rated primary current ensures reliability under load.
Conforms to international standards including IEC 60044-1, BS 7626, IEC185, and BSEN 60044-1.
Manufactured in the United Kingdom ensuring high-quality construction standards.

Product Description

HOBUT CT132 Series Current Transformer model CT132 is a compact busbar and base mounting current transformer designed for electrical and automation process control applications. Rated for a primary current of 40 A and a power rating of 2.5 VA, this device transforms primary currents into a standard 5A secondary current using cables up to 20mm diameter. Featuring a compact design, it measures 65mm in length, 45mm in width, and 30mm in depth with a 21mm bore diameter aperture, enabling efficient installation in constrained spaces.

The current transformer is fitted with sealable terminal covers for enhanced security and reliability. It includes a DIN rail mounting clip and mounting feet for flexible mounting options, supporting a rated system voltage of 0.72/3kV. The transformer operates effectively within an ambient temperature range of -30 to 85°C and supports a continuous current of up to 1.2 times the rated current, providing reliable performance in demanding industrial environments.

HOBUT CT132 complies with multiple international standards including IEC 60044-1, BS 7626, IEC185, and BSEN 60044-1, assuring users of its quality and conformity with industry norms. Manufactured in the United Kingdom, this product is ideal for industrial, electrical, automation, and process control uses where precise current measurement and safety are critical.

Suitable for primary currents from 40A to 300A with standard 5A secondary current transformation. Sealable terminal covers enhance connection security. Compact dimensions and DIN rail mount enable versatile installation.

High rated system voltage and ambient temperature range support diverse applications. Continuous current rating 1.2x rated current for durability under load. Compliance with IEC and BS international standards for safety and quality assurance.

Manufactured in the United Kingdom with stringent quality controls. Explore the HOBUT CT132 Series within the Current Transformer category on EnvMart for reliable electrical and automation solutions.
