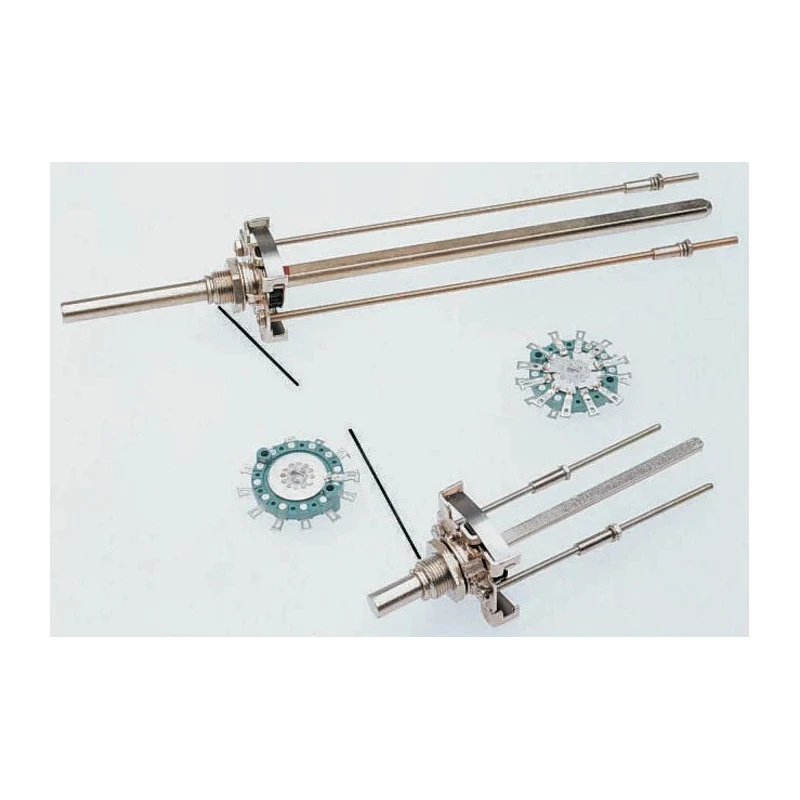

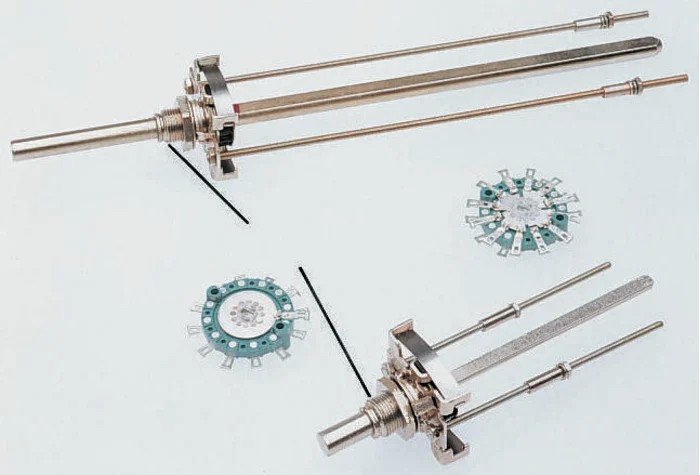

NSF Rotary Switch Wafer 32mm Diameter, 6 Positions, 2 Contacts, 300V ac/dc 454480/2/MK

NSF 454480/2/MK Rotary Switch Wafer is a high-quality component designed for electrical, automation, and control applications requiring precise rotary switching functionality.

This switch wafer features a 32mm diameter, supporting 6 switch positions and 2 silver-plated contacts, rated for 300V ac/dc voltages. Its robust construction includes glass-fibre loaded diallyl phthalate stators and polycarbonate rotors, delivering durability and excellent electrical performance.

The switch employs double-spring detent mechanisms within a standard shaft assembly offering 30° indexing and adjustable end stops. The assembly's life expectancy exceeds 100,000 detent operations, ensuring reliability in demanding industrial environments.

The device accommodates up to 10 standard wafers, facilitating modular configurations. It includes a 6mm diameter shaft with M10 x 0.75 mounting bushes, an overall length of 190mm, and a front shaft length of 40mm. Various wafers are available, including break-before-make and make-before-break versions, to suit specific switching needs.

NSF rotary switch wafers are RoHS compliant and manufactured in the United Kingdom, making them suitable for use in industrial automation, electrical control panels, and related equipment.

Features double-spring detent mechanisms in a standard shaft assembly. Life expectancy exceeding 100,000 detent operations ensures long-lasting performance. Provides 30° indexing with adjustable end stops for precise positioning.

Supports up to 10 standard wafers with 6mm diameter shaft and M10 x 0.75 mounting bushes. Constructed with glass-fibre loaded diallyl phthalate stators and polycarbonate rotors. Silver-plated contacts available in break-before-make and make-before-break versions.

Overall length of 190mm with a front shaft length of 40mm. Complies with RoHS standards and is manufactured in the United Kingdom.

This rotary switch wafer serves industrial, electrical, automation, and control system applications requiring precise, reliable switching. It is ideal for incorporation into automation systems, control cabinets, and electrical panels.
