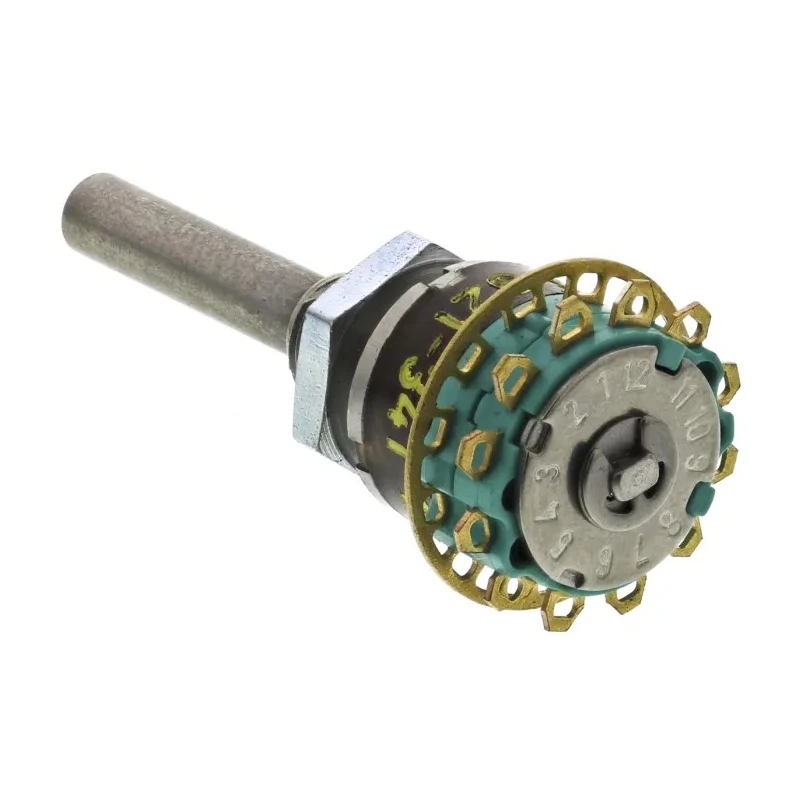

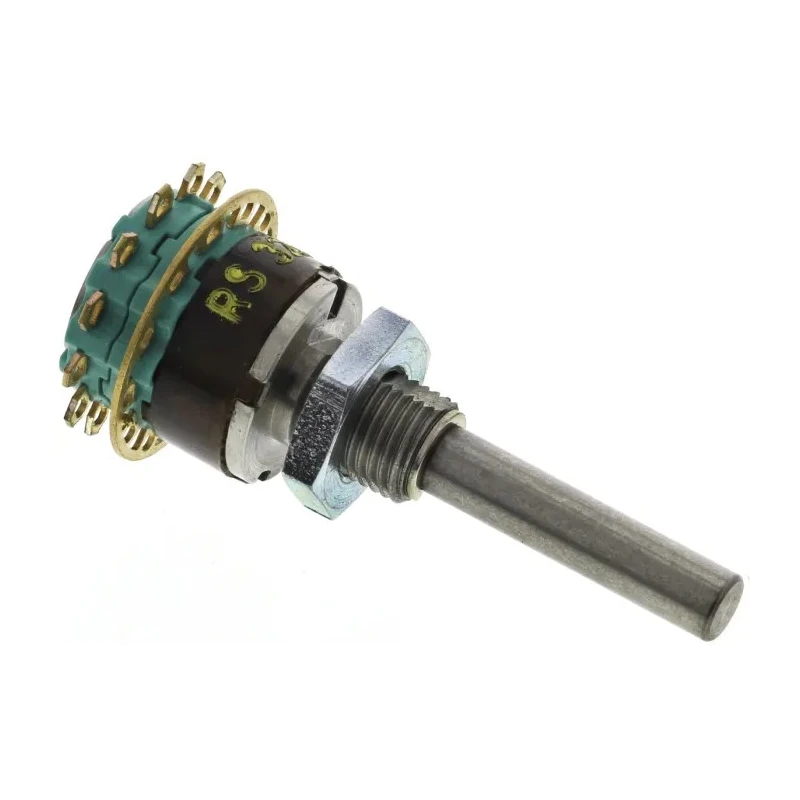

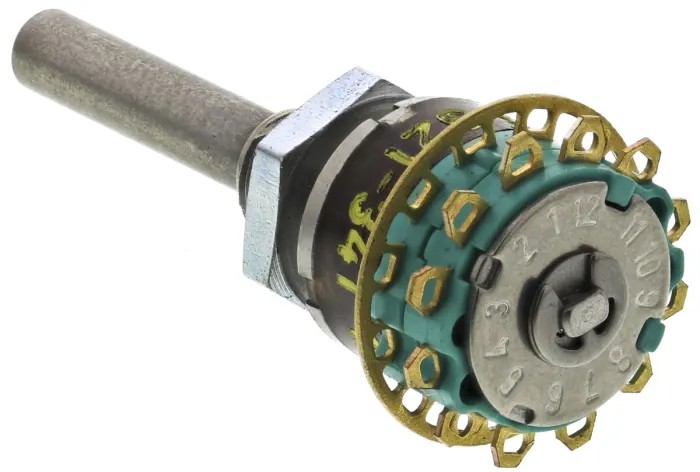

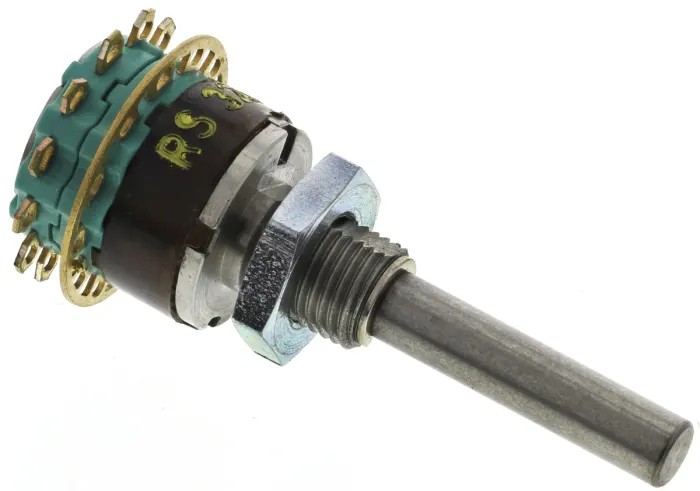

NSF MY Shorting SP12T Rotary Switch 1.5A 12-Position Panel Mount Solder Terminals SP12T
Specifications
| Country of Origin | Germany |
|---|---|
| Diameter | 12.2mm |
| Brand | NSF |
| Height | 37mm |
| Model | SP12T |
| Width | 37mm |
| Mount Type | Panel |
| Housing Material | Diallyl Phthalate |
| Series | MY Shorting |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SP12T |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switch Operation | 12-Position SP12T Rotary Switch |
| Switch Contact Current | 1.5A |
| Mechanical Life | 25000Operations |
| Maximum AC Voltage | 115V ac |
| Lorlin CK, 12 Position SPST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- Features a single pole 12-position (SP12T) contact configuration with gold contact material.
- Housing made of durable diallyl phthalate ensuring long-lasting insulation.
- Operates reliably within temperature range of -40°C to 85°C.
- Designed for panel mount installation with solder-type terminals for secure connections.
- Mechanical life rated for 25,000 operations enhancing durability in industrial and automation uses.
- Maximum AC voltage rating of 115V AC suitable for low voltage switching applications.

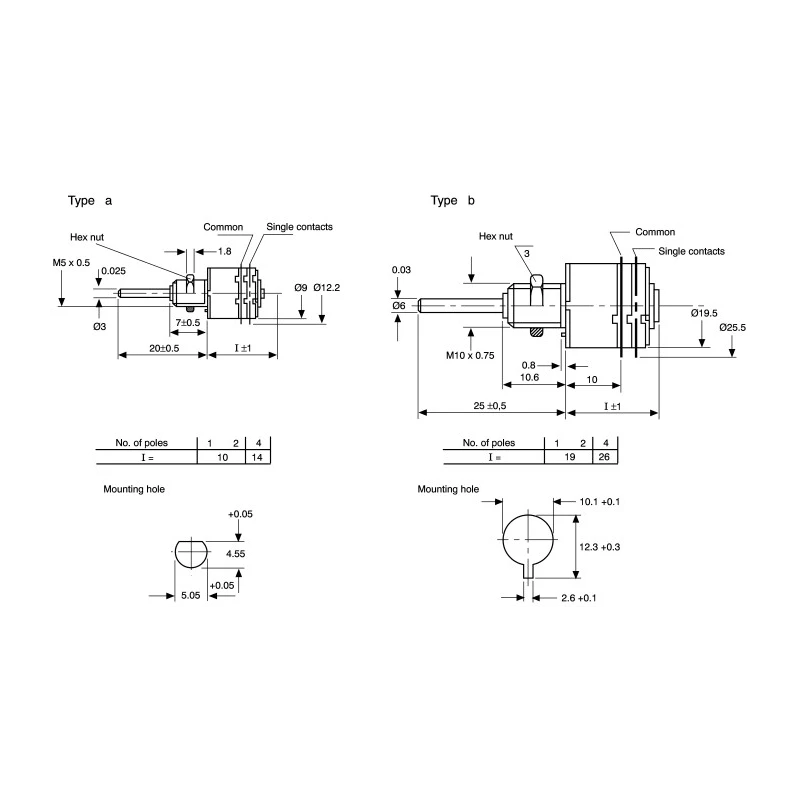

- Compact size with dimensions 37mm width, 37mm height, and 12.2mm diameter for wafer.
- RoHS compliant ensuring environmental safety and regulatory compatibility.
Product Description
The NSF SP12T rotary switch is a reliable single-pole 12-position wafer switch designed for panel mounting. It features gold contacts enclosed within a diallyl phthalate polymer housing, providing insulation and durability for electrical switching tasks.
Rated for a switch contact current of 1.5A and a maximum AC voltage of 115V AC, this switch is suitable for various control applications in electrical panels, automation systems, and industrial equipment.
Operating over a broad temperature range from -40°C to 85°C, the switch maintains consistent performance under varying environmental conditions. Its compact form factor includes a 37mm by 37mm outline and a wafer diameter of 12.2mm, making it ideal where space constraints exist.
The mechanical life of 25,000 operations ensures long-term reliability in frequent switching scenarios. The solder terminal type provides secure electrical connections commonly used in printed circuit board assembly and panel wiring.
The product is RoHS compliant, aligning with standards for environmentally friendly components. Manufactured in Germany, it meets high quality and safety standards. The SP12T is not illuminated and includes a precise 30° indexing mechanism ensuring accurate position selection.
Single pole 12-position rotary wafer switch configuration. Solder terminal type for robust electrical connection. Gold contact material for excellent conductivity and corrosion resistance. Polymeric diallyl phthalate housing offers insulation and strength.
Rated for 1.5A current and 115V AC voltage maximum. Temperature rating from -40°C to 85°C for varied environments. Mechanical durability with 25,000 operation life cycle. Compact dimensions suitable for panel mounting. RoHS compliant ensuring environmentally conscious manufacturing.
This Rotary Switch is an ideal component in industrial automation, electrical panels, control systems, and laboratory equipment where precision and reliability are critical. It supports switching requirements for low to moderate current signals with easy, secure mounting and serviceability.
Explore the Electronics & Electricals category at EnvMart for more switches and components optimized for industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum AC voltage rating for this rotary switch is 115V AC, making it suitable for low voltage switching applications.
This model has a switch contact current rating of 1.5A, which is appropriate for various control applications.
The dimensions of this switch are 37mm in width, 37mm in height, and a wafer diameter of 12.2mm, making it compact for panel mounting.
The mechanical life of the SP12T rotary switch is rated for 25,000 operations, ensuring reliability in frequent use.
The housing of this rotary switch is made from diallyl phthalate, which provides insulation and durability for electrical switching tasks.
This rotary switch operates reliably within a temperature range of -40°C to 85°C, suitable for various environmental conditions.
The SP12T features solder-type terminals, providing secure electrical connections commonly used in printed circuit board assembly and panel wiring.
Yes, this rotary switch is RoHS compliant, ensuring it meets environmental safety and regulatory standards.
The contact configuration of this model is a single pole 12-position (SP12T), allowing for multiple switching options in a compact design.
This rotary switch is suitable for various control applications in electrical panels, automation systems, and industrial equipment.
The SP12T rotary switch is manufactured in Germany, meeting high quality and safety standards.
This model includes a precise 30° indexing mechanism, ensuring accurate position selection for its 12 positions.
