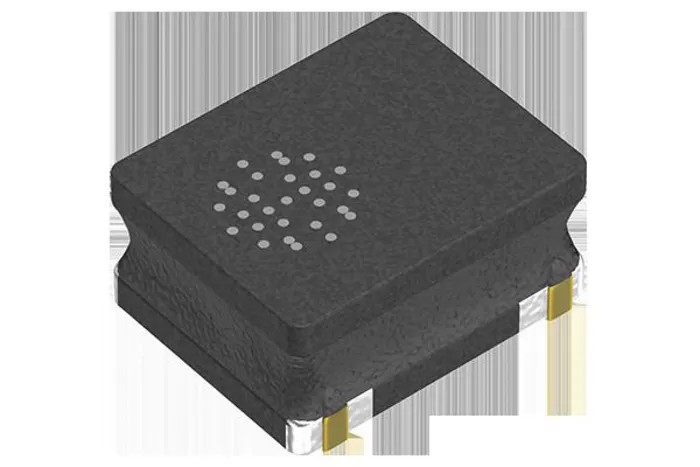

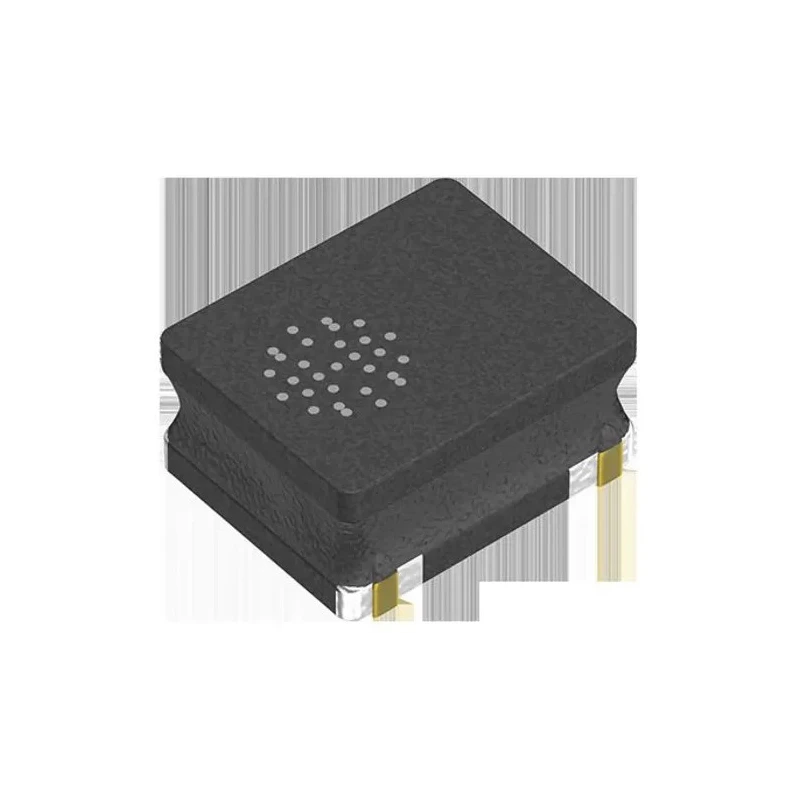

TDK Wirewound Surface Mount Inductor 4.7 μH ±20 %, 1 A DC, Ferrite Core, Shielded, 201610 Package VLS201610CX-4R7M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1mm |
| Length | 2mm |
| Model | VLS201610CX-4R7M-1 |
| Depth | 1.6mm |
| Series | VLS-CX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | SVHC-free, RoHS, REACH, Pb-Free, Halogen Free |
| Package/Case | 201610 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 365mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Features a ferrite core with a magnetic shield for improved performance.
- Constructed with high magnetic shield suitable for high-density mounting applications.
- Supports operating temperatures from -40°C to 105°C.
- Compact 201610 surface mount package dimensions of 2 mm length by 1.6 mm depth by 1 mm height.
- Optimized ferrite core geometry delivers lower DC resistance of 365 mΩ ensuring efficient current handling.
- Compliance with RoHS, REACH, Pb-Free, Halogen Free, and SVHC-free environmental standards.
- Ideal for power circuit use in smartphones, tablets, HDDs, SSDs, DVCs, DSCs, mobile displays, and compact power modules.
Product Description
TDK VLS201610CX-4R7M-1 is a precision wirewound Surface Mount Inductor featuring a ferrite core and magnetic shielding, designed to meet the demanding requirements of modern compact power circuits. This inductor provides an inductance of 4.7 μH with a tolerance of ±20%, and supports a maximum DC current rating of 1 ampere.
The component's magnetic shield is engineered to enable high-density mounting on PCB boards by minimizing electromagnetic interference. Its compact 201610 surface mount package measures 2 mm in length, 1.6 mm in depth, and 1 mm in height, making it suitable for space-constrained electronic assemblies.
Constructed from ferrite magnetic material, the inductor delivers a maximum DC resistance of only 365 milliohms ensuring efficient current conduction with minimal losses. It operates reliably within a temperature range from -40 degrees Celsius to 105 degrees Celsius, making it ideal for various electronic device environments.
The VLS-CX-1 series from TDK complies with important environmental standards including RoHS, REACH, SVHC-free, Pb-Free, and Halogen Free. Such certifications confirm its suitability for eco-conscious manufacturing processes.
This shielded wirewound inductor finds applications across a wide range of consumer electronics and portable devices. Primary uses include smartphones, tablets, hard disk drives, solid-state drives, digital video cameras, digital still cameras, mobile display panels, and portable gaming devices, as well as compact power supply modules.
Features a ferrite core with magnetic shielding for enhanced performance. Compact surface mount package optimizes PCB space utilization. High operating temperature range ensures device reliability. Low DC resistance supports efficient current flow.
Complies with leading environmental and safety standards. Designed for high-density mounting in advanced electronics. Ideal for use in mobile and compact power applications. Explore EnvMart’s electronic components section for more inductors and surface mount devices from leading brands like TDK.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH with a tolerance of ±20%.
This inductor supports a maximum DC current rating of 1 ampere.
The dimensions of the 201610 package are 2 mm in length, 1.6 mm in depth, and 1 mm in height.
The maximum operating temperature for this model is 105°C.
The minimum operating temperature for this inductor is -40°C.
This inductor is constructed with a ferrite core material.
The maximum DC resistance of this inductor is 365 milliohms.
It complies with RoHS, REACH, SVHC-free, Pb-Free, and Halogen Free environmental standards.
This inductor is typically used in smartphones, tablets, hard disk drives, solid-state drives, and digital cameras.
The construction type of this model is wirewound.
The magnetic shielding minimizes electromagnetic interference, enabling high-density mounting on PCB boards.
The termination style of this model is surface mount.
