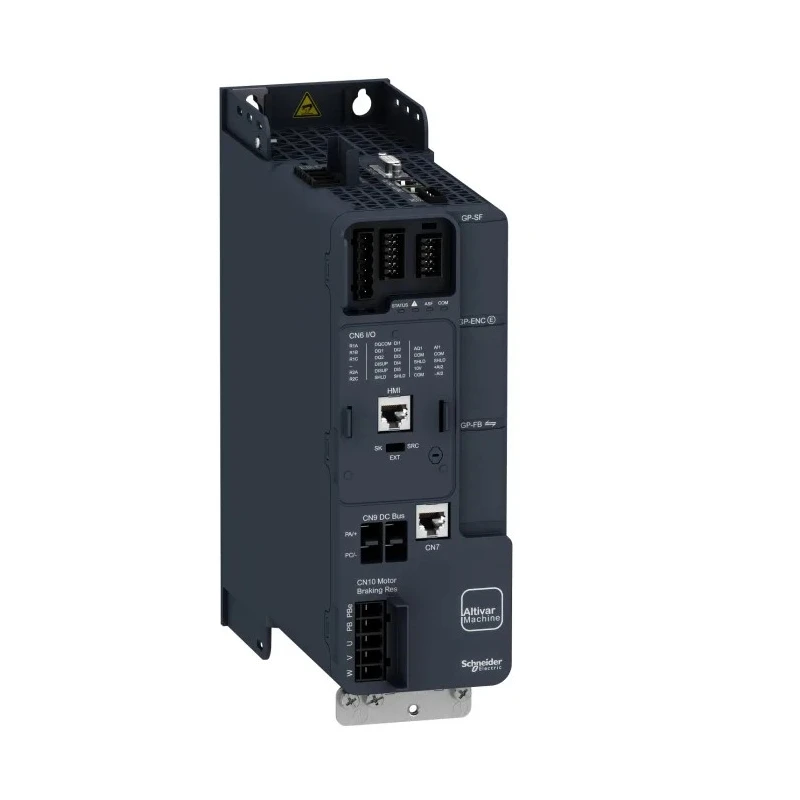

Schneider Electric Altivar Series Inverter Drive, 3 kW, 3 Phase, Variable Speed, 380V-480V, 8.6 A, Cabinet ATV340U30N4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340U30N4 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 85mm |
| Series | Altivar |
| Overall Width | 232.5mm |
| Power Rating | 3kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 8.6A |
| Standards/Approvals | CSA, RoHS, IEC, EAC, EAN, REACH, UL, TUV, C-Tick, CE |
| Maximum Supply Voltage | 480V |
| Overall Depth | 270mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Reluctance Motor, Permanent Magnet Motor |
Key Features
- Supports rated voltage from 380V to 480V AC with maximum output current of 8.6 A.
- Cabinet mount type with IP20 rating for protection.
- Operates from 0.1 Hz to 599 Hz output frequency providing precise motor control.
- Compatible with reluctance and permanent magnet motors for versatile applications.
- Designed for harsh environments with shock, vibration resistance, and high temperature operation up to 50°C.
- Includes Modbus serial communication and optional Ethernet interface for connectivity.
- Conforms to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, and EMC emission standards.
- Equipped with safety features including functional safety STO embedded.
Product Description
Schneider Electric ATV340U30N4 is a high-performance Altivar 340 inverter drive designed for industrial automation requiring variable speed control of 3-phase synchronous and asynchronous motors. It delivers a rated power output of 3 kW (3 HP) with a voltage range from 380V to 480V AC and supports a maximum output current of 8.6 A. This drive accommodates a wide output frequency range of 0.1 Hz to 599 Hz, allowing precise speed and torque control in demanding applications.
The ATV340U30N4 features a robust cabinet mount design with an IP20 enclosure rating, making it suitable for environments exposed to vibration, shocks, and non-conductive dust. It operates reliably in ambient temperatures up to 50°C with derating up to 60°C, delivering consistent performance under harsh industrial conditions.
Engineered for versatility, it supports reluctance and permanent magnet motors and integrates Modbus serial communication protocols standard, with optional embedded Ethernet connectivity and fieldbus modules. The drive includes advanced functional safety features with STO embedded for machine safety compliance.
Conformance to multiple international standards such as IEC/EN 61800-5-1 for safety, IEC/EN 61800-3 for EMC immunity and emissions, as well as CSA, UL, TUV certifications ensure compliance and reliability. The drive is part of Schneider Electric's EcoStruxure Machine platform, enabling configuration, control, and diagnostics via SoMachine and SoMove software, enhancing integration and maintenance efficiency.
With dimensions of 85 mm length, 232.5 mm width, and 270 mm depth, and a lightweight 2.1 kg profile, the ATV340U30N4 is suitable for panel mounting in vertical orientation. It is commonly deployed in industrial sectors such as packaging, material handling, hoisting, and general manufacturing processes requiring energy-efficient, high-performance motor control.
Supports 3 kW power rating and 3-phase supply for industrial motor control. Cabinet mount with IP20 protection suitable for industrial environments. Broad operating frequency range from 0.1 to 599 Hz for precise motor control.
Compatible with reluctance and permanent magnet motors. Designed for harsh conditions, including shock and vibration resistance. Includes standard Modbus communication with Ethernet option. Conforms to IEC, CSA, UL, and TUV international standards and safety regulations.
Functional safety STO is embedded for safe machine operation. Compact size and lightweight for easy panel installation. Integrates with EcoStruxure platform for advanced machine management. Explore the range of Schneider Electric products and Inverter Drives on EnvMart for efficient and reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV340U30N4 inverter drive has a power rating of 3 kW (3 HP).
This model operates within an output frequency range of 0.1 Hz to 599 Hz, allowing for precise motor control.
It is compatible with both reluctance motors and permanent magnet motors, providing versatility for various applications.
The dimensions of this inverter drive are 85 mm in length, 232.5 mm in width, and 270 mm in depth.
The maximum output current for the ATV340U30N4 is 8.6 A.
This model has an IP20 rating, which provides protection against non-conductive dust and accidental contact.
The maximum operating temperature for the ATV340U30N4 is 50°C.
Yes, it includes Modbus serial communication and has an optional Ethernet interface for connectivity.
This inverter drive conforms to several international standards, including IEC/EN 61800-5-1, IEC/EN 61800-3, and EMC emission standards, as well as certifications from CSA, UL, and TUV.
The ATV340U30N4 is designed for cabinet mounting, making it suitable for various industrial applications.
The minimum supply voltage is 380V, while the maximum supply voltage is 480V.
This inverter drive is commonly deployed in industrial sectors such as packaging, material handling, hoisting, and general manufacturing processes that require variable speed control.
