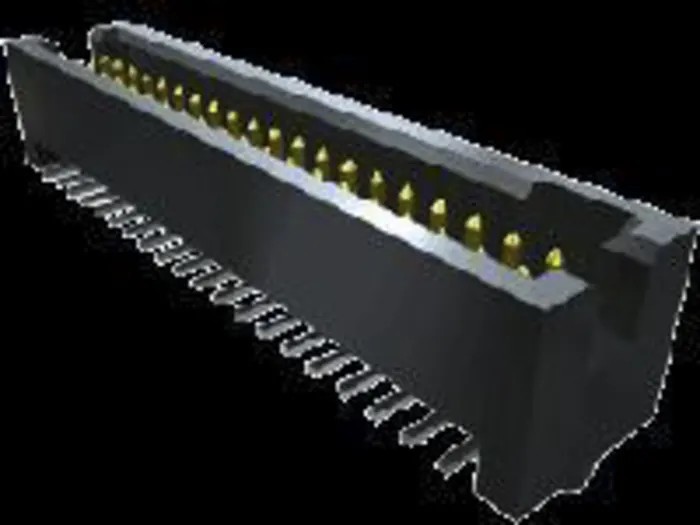

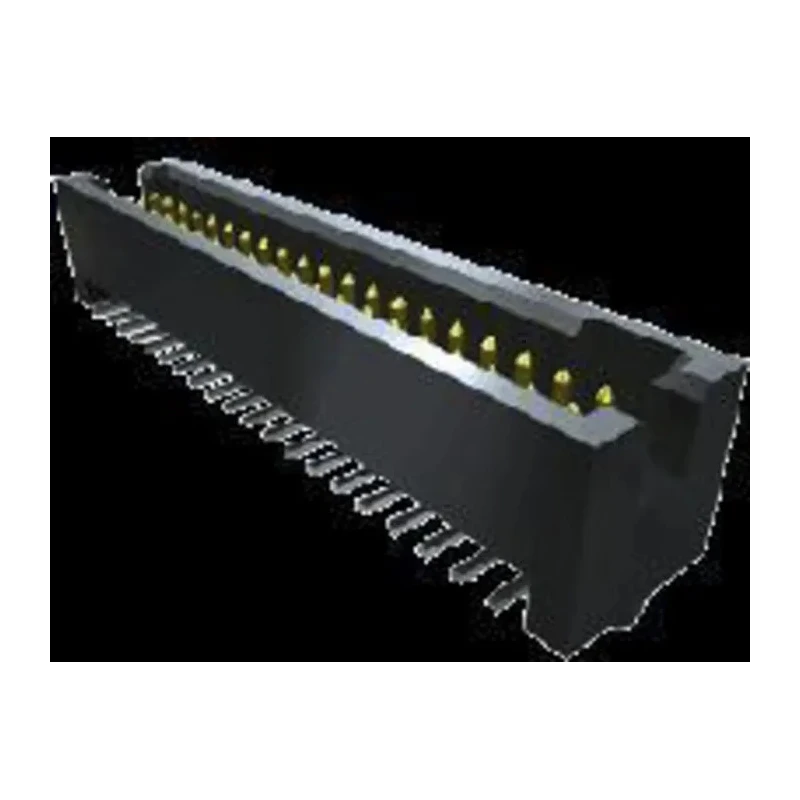

Samtec TFM Series Straight Through Hole PCB Header 30 Contacts 1.27 mm Pitch 2 Row Shrouded TFM-115-01-L-D-WT

Samtec TFM-115-01-L-D-WT is a robust and high-reliability straight through hole PCB header designed for demanding electronic applications. This shrouded PCB header features 30 male contacts arranged in 2 rows, spaced with a 1.27 mm pitch, providing precise and stable wire-to-board connections.

Manufactured with a liquid crystal polymer housing, it ensures excellent thermal and mechanical stability. The phosphor bronze contacts are plated with gold to guarantee superior electrical conductivity and corrosion resistance, suitable for long-term operation in industrial environments.

This PCB header supports a current rating of 3.2 amperes and operates safely within a temperature range from -55°C to 125°C, accommodating a wide variety of operating conditions.

Its through-hole mounting with solder termination provides a secure physical and electrical connection, suitable for automated PCB assembly lines. The connector system and male contact gender allow easy integration with compatible cable assemblies and mating sockets, enhancing its application versatility.

Featuring special ruggedization options such as screw down, weld tab, and solder nail, this product is ideal for harsh industrial, manufacturing, and commercial electronic equipment requiring durable and reliable signal interfacing.

Supports a maximum current of 3.2A per contact. Constructed with liquid crystal polymer housing for high durability. Phosphor bronze contacts plated with gold for excellent conductivity and corrosion resistance. Mount type is through-hole with solder termination for secure connection.

Operates within a temperature range of -55°C to 125°C. Designed with a 1.27 mm row and pitch spacing ensuring compatibility with standard PCB layouts. Provides a rugged interface with special features like screw down, weld tab, and solder nail options for enhanced reliability.

Connector system designed for wire-to-board applications with male contact gender.

This Samtec TFM Series PCB Header is widely applicable for electronic component assembly, industrial control systems, power distribution boards, and other advanced electronic equipment in laboratory, manufacturing, and commercial sectors. It offers robust performance and dependable connectivity where high cycle durability is required.
