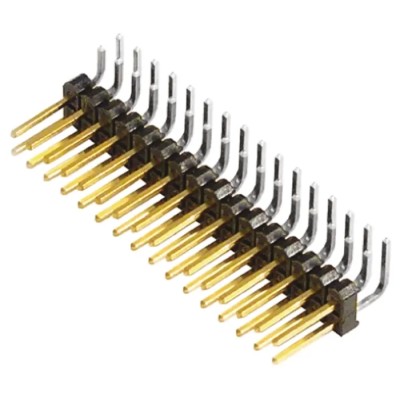

Samtec TSW Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-106-08-T-D-RA

Samtec TSW-106-08-T-D-RA is a high-quality Right Angle Through Hole Pin Header designed for reliable board-to-board connections in industrial and commercial electronic assemblies. Featuring 12 male contacts spaced at a 2.54 mm pitch over 2 rows, it provides a compact and versatile solution for PCB interconnections.

The connector housing is manufactured from polybutylene terephthalate, offering excellent durability, electrical insulation, and resistance to environmental factors. Contacts are made from phosphor bronze and plated with tin, ensuring consistent conductivity and corrosion resistance. The right-angle orientation enables efficient space utilization on densely packed circuit boards.

This pin header supports a current rating of 4.3A and voltage ratings from 400V up to 550V, making it suitable for a wide range of electronic and electrical applications. It operates reliably within a temperature range of -55°C to 105°C, accommodating harsh industrial environments.

Termination is through-hole soldering, providing a strong mechanical and electrical connection to the PCB. The contact system consists of .025" (0.635 mm) square posts with a mating pin length of 5.84 mm and tail pin length of 1.52 mm, optimized for secure board mounting and mating longevity.

Pitch of 2.54 mm facilitates standard PCB spacing. Rated current of 4.3A suitable for moderate power applications. Housing is made from durable polybutylene terephthalate material. Right-angle orientation enables compact PCB designs.

Operating temperature range from -55°C to 105°C ensures versatile environmental use. Termination via through-hole soldering for secure mechanical and electrical connection. Contact system features .025" (0.635 mm) square post design for reliable mating.

Mating pin length of 5.84 mm allows proper engagement with connectors. Tail pin length of 1.52 mm supports stable through-hole mounting. Voltage ratings up to 550V accommodate various circuit requirements.

This component is ideal for use in industrial, commercial, and manufacturing electronic equipment requiring robust and reliable PCB connectors. It suits applications including signal transmission, power distribution, and control assemblies.

Explore our comprehensive range of PCB Headers and connectors at EnvMart to find compatible products and accessories that enhance your project's performance and reliability.
