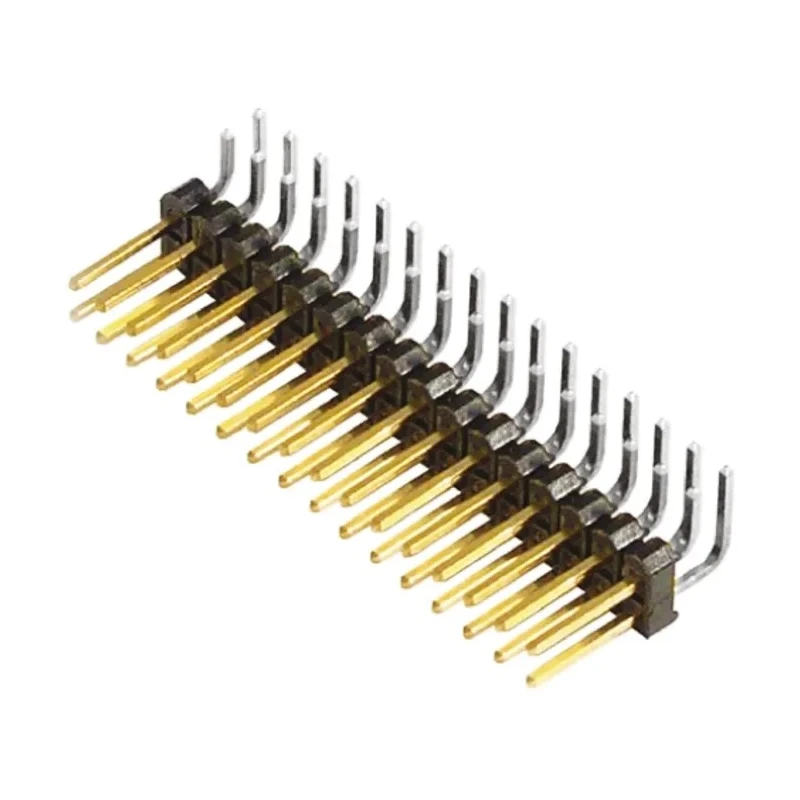

Samtec TSW Series Right Angle Through Hole Pin Header, 32 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-116-08-L-D-RA

Samtec TSW-116-08-L-D-RA is a high-quality Right Angle Through Hole Pin Header from the TSW Series, featuring 32 male contacts arranged in two rows with a precise 2.54 mm pitch. It is manufactured using a black glass filled polyester housing material that ensures mechanical stability and resistance in demanding environments.

The phosphor bronze contacts provide excellent electrical performance and are plated with gold for superior conductivity and corrosion resistance. The unshrouded design facilitates easy connection and soldering, while maintaining robustness.

This connector supports a maximum current of 7.6 A and voltage of 450 V, operating reliably within a temperature range from -55°C up to 125°C. The tail pin length measures 2.29 mm and the mating pin length is 5.84 mm, optimized for through hole mounting on PCB boards.

Its right angle orientation makes it suitable for space-constrained electronic assemblies requiring board-to-board or wire-to-board connections. This component is widely applicable across industrial electronics, manufacturing equipment, communications hardware, and other electrical assemblies demanding reliable interfacing.

These TSW series headers are designed to mate seamlessly with Samtec standard box sockets and various low profile socket strips, making them ideal for system integration and maintenance. They comply with standard PCB header configurations and offer consistent performance in industrial and commercial electronics.

This pin header has a black glass filled polyester housing providing durability. It features phosphor bronze contacts with gold plating for enhanced conductivity. The connector has 2 rows and is unshrouded with a right angle orientation.

Operating temperature range is from -55°C to 125°C, suitable for industrial conditions. The male contact pins have a tail pin length of 2.29mm and mating pin length of 5.84mm. It operates at a voltage rating of 450 volts and current rating of 7.6 amperes.

Designed for through hole mounting on printed circuit boards. Ideal for applications needing reliable and compact PCB connectors. Browse more PCB Headers and electronic components from Samtec and other renowned manufacturers on EnvMart for your next project or system upgrade.
