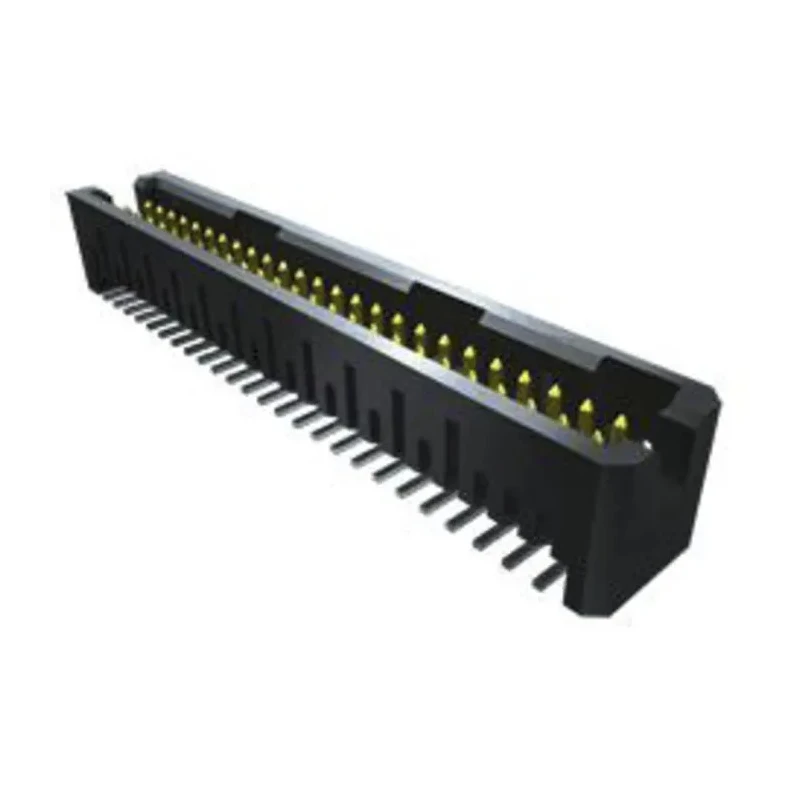

Samtec Straight Through Hole PCB Header 30 Contacts 1.27 mm Pitch 2 Row Shrouded TFML-115-02-S-D-LC
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3A |
| Model | TFML-115-02-S-D-LC |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFML |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with a liquid crystal polymer housing for durability.
- Gold-plated phosphor bronze contacts ensure reliable conductivity.
- Designed for through-hole mounting and solder termination.
- Supports up to 3A current and 250V voltage rating.
- Operates reliably between -55°C and 125°C temperature range.
- Shrouded for blind mating to protect contacts and enhance connection safety.
- Orientation is straight for easy board mounting.
- Connector system compatible with wire-to-board applications.
Product Description
Samtec TFML-115-02-S-D-LC is a high-quality straight through hole PCB header designed with 30 contacts arranged in 2 rows at 1.27 mm pitch, ideal for electronic assembly applications requiring high reliability. The connector features a shrouded body offering protection during blind mating operations, enhancing durability and connection stability.
The liquid crystal polymer housing provides robust insulation and durability, making this header suitable for industrial, electronic manufacturing, and commercial PCB assembly uses. Gold-plated phosphor bronze contacts guarantee excellent conductivity and corrosion resistance, ensuring long service life and minimal connection failures.
It supports a current rating of 3A and voltage rating of 250V, suitable for moderate power electronics applications. The connector operates efficiently within a wide temperature range of -55°C to 125°C, making it adaptable to various environmental conditions.
This PCB header is designed for through-hole mounting with solder termination, providing strong mechanical and electrical connection on printed circuit boards. The straight orientation and wire-to-board connector system allow for straightforward integration into PCB layouts.
The product is manufactured in the United States, assuring adherence to stringent quality standards. Ideal for use in industrial electronics, instrumentation, aerospace, and automotive applications requiring dependable PCB connections.
Constructed with liquid crystal polymer housing for durability. Gold-plated phosphor bronze contacts provide reliable conductivity. Shrouded design for blind mating protection. 30 contacts arranged in 2 rows at 1.27 mm pitch.
Supports 3A current and 250V voltage rating. Operates in temperatures from -55°C to 125°C. Through-hole mounting with solder termination. Straight orientation for easy PCB integration. Manufactured in the United States to high standards.
Discover the full range of PCB Headers and connectors from Samtec at EnvMart for industrial and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 3A and a voltage rating of 250V, making it suitable for moderate power electronics applications.
It operates efficiently within a temperature range of -55°C to 125°C, allowing for use in various environmental conditions.
The model features 30 contacts arranged in 2 rows with a pitch of 1.27 mm, which is standard for many PCB applications.
The housing is made from liquid crystal polymer, while the contacts are constructed from gold-plated phosphor bronze, ensuring reliable conductivity and corrosion resistance.
This model is designed for through-hole mounting with solder termination, providing a strong mechanical and electrical connection on printed circuit boards.
It has a straight orientation, which facilitates easy integration into PCB layouts during assembly.
Yes, it is designed as a wire-to-board connector system, making it compatible with various PCB configurations.
The contacts in this header are male, which is typical for PCB headers used in electronic assemblies.
The shrouded design provides protection during blind mating operations, enhancing connection stability and safety.
It is manufactured in the United States, ensuring adherence to stringent quality standards.
This header belongs to the TFML series, which is known for its reliability in electronic assembly applications.
The contacts are gold-plated, which enhances conductivity and provides corrosion resistance for long service life.
