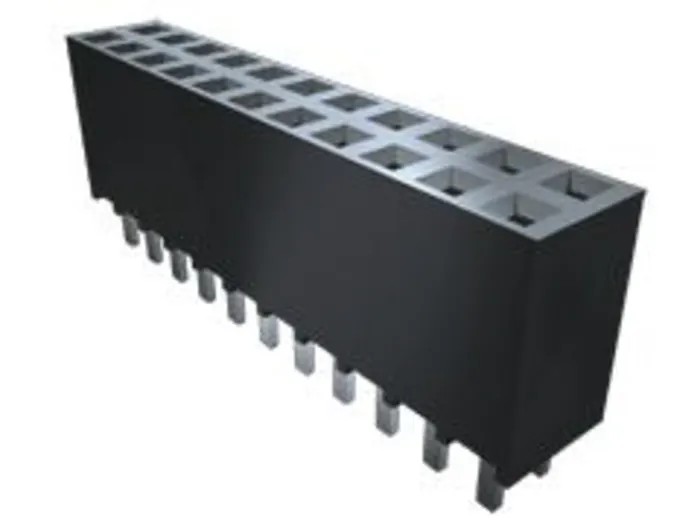

Samtec Straight Through Hole PCB Socket 8-Contact 2 Row 2.54 mm Pitch 655V Solder SSW-104-01-F-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 655V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.7A |
| Model | SSW-104-01-F-D |
| Mount Type | Through Hole |
| Special Features | Standard and low insertion force contacts with standard solder tails |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
| Row Pitch | 2.5mm |
Key Features
- This PCB socket features Tiger Buy™ contacts for reliable performance.
- It supports a current rating of 4.7 A and rated voltage of 655 V.
- The socket uses a liquid crystal polymer housing for durability.
- Termination type is solder with through-hole mount for secure PCB attachment.
- Operating temperature ranges from -55°C to 125°C.
- Gold-plated bronze female contacts ensure excellent conductivity.
- Standard and low insertion force contacts are available with standard solder tails.
- Designed for board-to-board connector system with straight orientation.
Product Description
Samtec SSW-104-01-F-D is a straight through hole PCB socket designed to provide reliable board-to-board connectivity with 8 female contacts arranged in 2 rows. It features a pitch of 2.54 mm, supporting current up to 4.7 A and a maximum operating voltage of 655 V.
The housing is constructed from robust liquid crystal polymer, ensuring high durability in industrial and electronic applications. The socket uses Tiger Buy™ contact system with gold-plated bronze contacts to maintain excellent conductivity and durability over prolonged use.
This socket is designed for through-hole mounting with solder terminations, providing secure mechanical and electrical connections. Operating temperature range from -55°C to 125°C makes it suitable for harsh environments in manufacturing, assembly, and electronics repair.
High retention Tiger Buy™ contact system ensures secure electrical contact. Standard and low insertion force contacts available to support various application needs. Gold-plated bronze contacts enhance conductivity and corrosion resistance.
Through-hole solder termination for durable PCB mounting. Liquid crystal polymer housing material offers mechanical strength and heat resistance. Ideal for industrial, laboratory, manufacturing, and electronic assembly uses.
Connector system designed for board-to-board applications, straight orientation for ease of use.
This PCB socket from Samtec is part of the SSW series, renowned for its precision and durability in electronics components industry. It supports versatile applications requiring reliable connector solutions with high voltage and current ratings.
Discover this and other PCB Sockets and connectors by browsing our Electronics & Electricals category on EnvMart for quality components suitable for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB socket is 4.7 A.
This model has a voltage rating of 655 V.
The contacts in this socket are arranged with a pitch of 2.54 mm.
It uses solder termination with a through-hole mount for secure PCB attachment.
The operating temperature range for this model is from -55°C to 125°C.
The housing is made from liquid crystal polymer, and the contacts are gold-plated bronze.
This socket features 8 female contacts arranged in 2 rows.
It offers standard and low insertion force contacts with standard solder tails.
This socket is designed for a board-to-board connector system.
The orientation of this PCB socket is straight.
This PCB socket is part of the SSW series.
The country of origin for this PCB socket is India.
