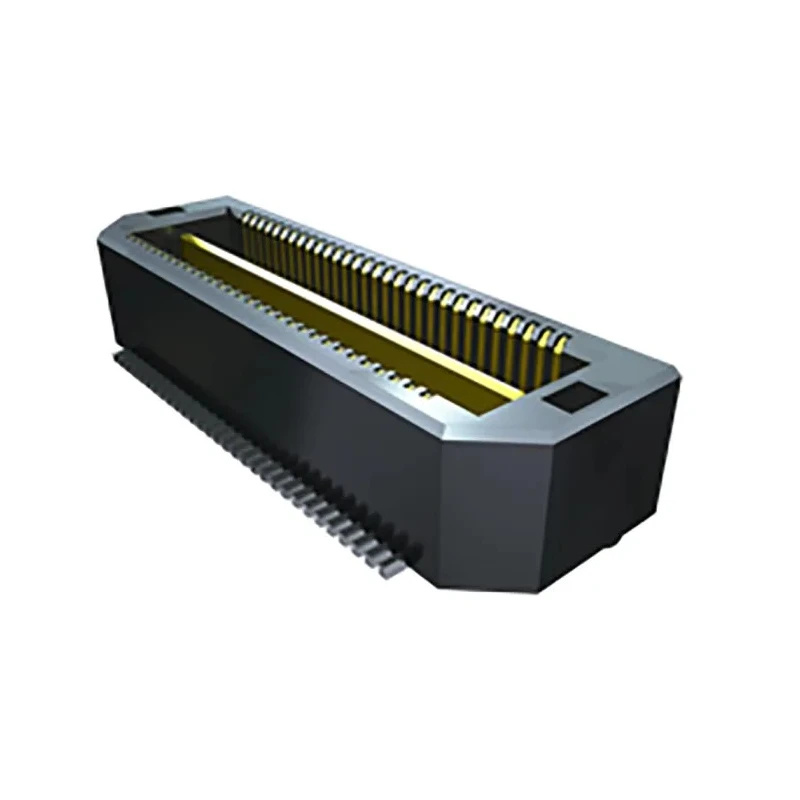

Samtec QTH Series Straight Surface PCB Header, 120 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-060-03-L-D-A-K

Name: Samtec QTH Series Straight Surface PCB Header, 120 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-060-03-L-D-A-K
Brand: Samtec
SKU: 154338
Price: 13.79 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	Costa Rica
Voltage	175V
Brand	Samtec
Orientation	Straight
Current	2A
Model	QTH-060-03-L-D-A-K
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	QTH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	120
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features a shrouded design for reliable board-to-board connection.
Constructed with phosphor bronze contact material plated with gold for optimal conductivity.
Supports up to 2A current capacity with a voltage rating of 175V.
Operates reliably between -55°C and 125°C, suitable for various environments.
Housing is made from liquid crystal polymer, ensuring durability and stability.
Offers a 2-row orientation with a 0.5 mm row pitch, supporting up to 120 contacts.
Designed for solder termination type and male contact gender.
Ideal for electronic, industrial, and manufacturing applications requiring high precision PCB connections.

Product Description

Samtec QTH-060-03-L-D-A-K is a high-performance PCB header from the QTH Series featuring 120 contacts with a tight 0.5 mm pitch and 2-row, shrouded surface mount design. Engineered to provide reliable board-to-board connections, this component is built from phosphor bronze contacts plated with gold for excellent electrical conductivity and corrosion resistance. The housing is composed of liquid crystal polymer, offering robust mechanical strength and thermal stability within a broad operating temperature range of -55°C to 125°C.

This PCB header supports a current rating of 2A and a voltage rating of 175V, making it suitable for demanding electronics and industrial control applications. With solder termination and male contact gender, it facilitates secure and efficient assembly on printed circuit boards. The shrouded housing provides excellent contact protection and alignment, enhancing durability in vibration-prone environments.

Ideal for use in commercial, manufacturing, and laboratory electronics setups, the product enables compact and precise interconnection solutions. Its extended life design and compliance features make it a reliable choice for long-term operation in high-speed data and signal integrity applications.

Shrouded surface mount PCB header ensuring stable electrical connections and protection. Phosphor bronze contacts with gold plating for enhanced conductivity and corrosion resistance. Compact 0.5 mm pitch with 2 rows supporting 120 connection points for high-density designs.

Liquid crystal polymer housing for thermal and mechanical durability across a wide temperature range. Voltage rating of 175V and current rating of 2A suited for moderate power applications. Male contact gender and solder termination type for standard PCB assembly process.

Applicable in electronics manufacturing, industrial control systems, and laboratory equipment. Manufactured in Costa Rica under strict quality standards ensuring new product condition. Explore our extensive catalog within Electronics Components at EnvMart for more PCB Header solutions and related accessories.
