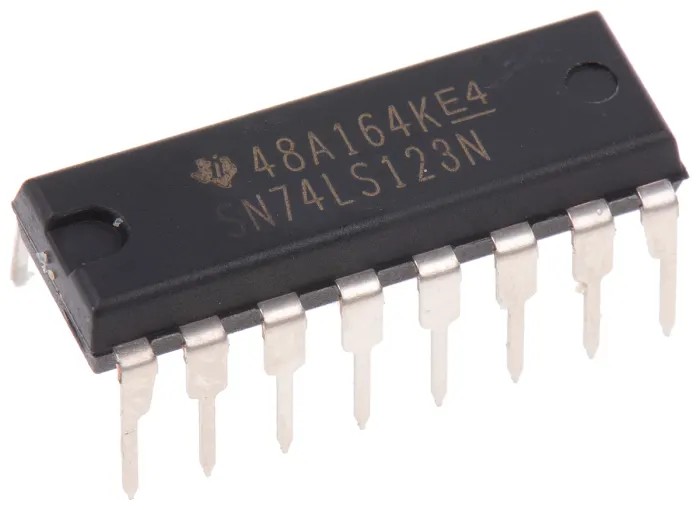

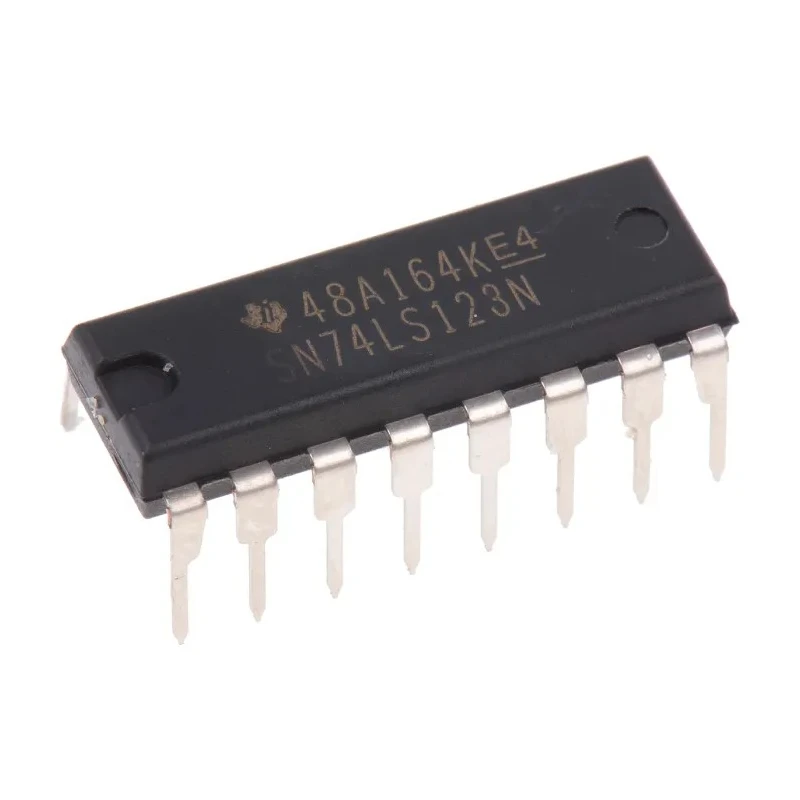

Texas Instruments 2 Monostable Multivibrator LS 8 mA 16-Pin PDIP SN74LS123N

Texas Instruments SN74LS123N is a semiconductor monostable multivibrator IC belonging to the 74LS family of low-power Schottky logic devices, designed for industrial and electronic applications requiring precise timing and pulse generation. The device includes two monostable multivibrator circuits integrated on a single chip, housed in a 16-pin PDIP package suitable for through-hole mounting.

The IC operates with a supply voltage between 4.75 V and 5.25 V and supports a maximum low-level output current of 8 mA and a high-level output current of -0.4 mA. It features a minimum pulse width of 40 ns and a maximum propagation delay time at CL of 56 ns, ensuring fast and reliable timing characteristics.

With operational temperature capability from 0°C to 70°C and a maximum quiescent current of 12 mA, this device offers dependable performance for use in industrial controls, sequential timing circuits, waveform generation, and signal conditioning applications.

The product's 16-pin dual inline package measures 19.3 mm in length and 4.57 mm in height, providing compact footprint for PCB integration. The device adheres to no specific automotive standards or special approvals but is engineered for robust electronic system functioning.

Texas Instruments' 74LS series uses bipolar junction technology enhanced with Schottky diode clamps to provide operating speeds comparable to original 74TTL families with significantly lower power consumption.

Utilizes low power Schottky bipolar technology for efficient operation. Provides two monostable multivibrator circuits on a single chip. Operates at a supply voltage of 4.75 V to 5.25 V with through-hole mounting. Minimum pulse width of 40 ns and maximum propagation delay time of 56 ns.

Supports operating temperatures from 0°C to 70°C for reliable performance. Compact 16-pin PDIP package simplifies PCB assembly. Ideal for timing, pulse generation, and control applications in industrial electronics. Explore the Texas Instruments range of Logic ICs and monostable multivibrators in the Semiconductors category at EnvMart for advanced electronic component solutions.
