TDK 4.7 nF 50V DC Multilayer Ceramic Capacitor X7R Dielectric, ±10% Tolerance, Surface Mount CEU3E2X7R1H472K080AE

Free Delivery in India | Lowest Global Shipping Charges

TDK 4.7 nF 50V DC Multilayer Ceramic Capacitor X7R Dielectric, ±10% Tolerance, Surface Mount CEU3E2X7R1H472K080AE



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CEU3E2X7R1H472K080AE
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CEU
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	4.7nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X7R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Features a fail-safe function with serial capacitor configuration within a single product.
Improved stress resistance ensures high reliability in demanding environments.
Enhanced thermal shock resistance improves operational robustness.
Compact 0603 package reduces printed circuit board space requirements.
Meets AEC-Q200 automotive standards for quality and reliability.
Suitable for power supply circuits lacking a protective circuit.
Effective in automotive battery line applications.
Operates within temperature range from -55°C to 125°C for wide usage.

Product Description

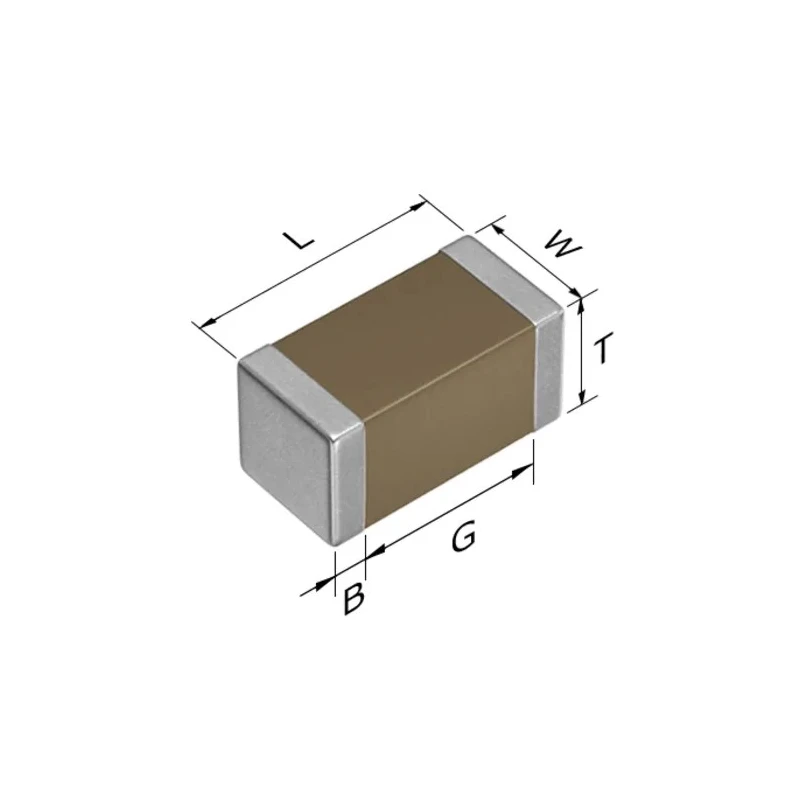

TDK CEU3E2X7R1H472K080AE is a high-quality 4.7 nF multilayer ceramic capacitor featuring X7R dielectric material and a voltage rating of 50V DC. It offers a tolerance of ±10% and is designed for surface mount technology applications using a compact 0603 package (1.6 mm length, 0.8 mm width, 0.8 mm height). The capacitor includes an internal fail-safe function realized by serial configuration of capacitors inside the product, enhancing fault tolerance.

The product exhibits improved stress and thermal shock resistance, which allows for dependable performance under fluctuating environmental conditions. Its compact form factor aids in reducing PCB footprint, making it suitable for space-constrained designs.

This capacitor complies with the AEC-Q200 automotive standard, highlighting its suitability for automotive and industrial usage such as power supply circuits and automotive battery lines without protective circuits. Operating temperature ranges from -55°C to 125°C, providing flexibility across diverse operating conditions.

The termination is surface mount type, and the packaging is provided on tape and reel to support efficient manufacturing processes and automated placement. Fail-safe function with internal serial capacitor configuration.

Enhanced stress resistance for reliability. Improved thermal shock endurance. Compact 0603 package saves PCB space. Automotive standard AEC-Q200 compliant. Wide operating temperature from -55°C to 125°C. Surface mount termination suitable for SMT assembly.

Tape and reel packaging for manufacturing efficiency.

This Multilayer Ceramic Capacitor is ideal for industrial, automotive, and electronic assembly applications requiring stable capacitance, reliability under stress, and compact size. EnvMart offers this product as part of its comprehensive range of high-quality electronic components.
