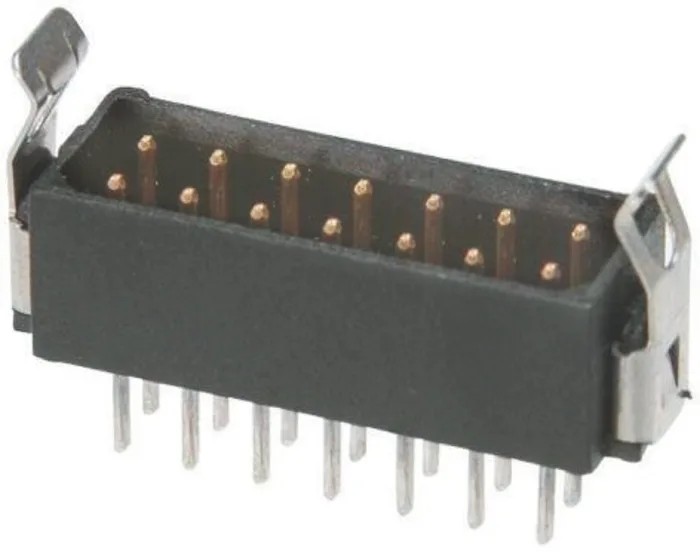

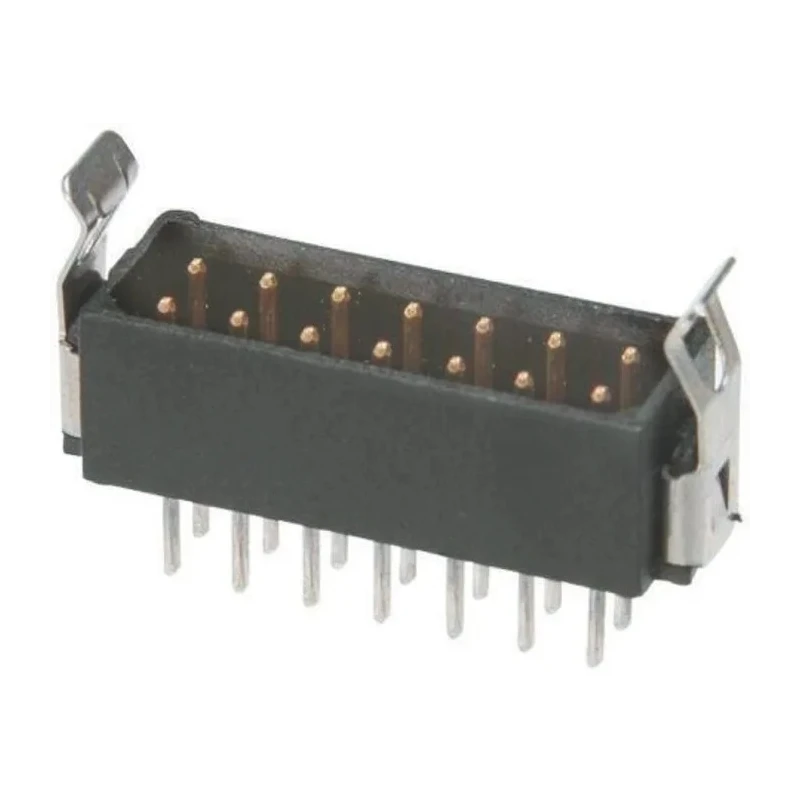

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header, 16 Contacts, 2 mm Pitch, 2 Rows, Shrouded, 3A M80-8531642

The HARWIN M80-8531642 PCB Header, part of the Datamate L-Tek Series, is engineered for high reliability in challenging industrial and electronic applications. This straight through hole, shrouded connector is designed for secure, efficient board-to-board or wire-to-board connections, making it well-suited for environments requiring robust performance.

It features 16 male contacts arranged in two rows with a 2 mm pitch. The housing material is polyphenylene sulphide, offering excellent thermal and mechanical stability. The contacts are made of phosphor bronze and gold plated for superior electrical conductivity and corrosion resistance.

Rated for up to 3A current and 120V voltage, this header meets demanding requirements for both power and signal transmission. Its operational temperature range of -55°C to 125°C allows it to function reliably in extreme temperature conditions. Combined with shrouded design, the connector minimizes accidental mismates and provides enhanced mechanical protection.

Tail pin length of 3 mm ensures optimal PCB retention and solder integrity. The product supports solder termination with a straight orientation, suitable for production lines and automated assembly. Designed for use in environments subject to high loads, vibration, shock, or acceleration, Datamate L-Tek connectors are trusted in industrial, laboratory, military, and COTS (commercial off-the-shelf) electronics.

Industry approvals include compliance with standards such as BS9525-F0033, MIL C 55302, and CEC 75101-008. The product is also highly rated for high mating cycle durability and reliable performance.

Applications include aerospace, instrumentation, industrial automation, test equipment, and anywhere high-vibration or harsh conditions demand rugged interconnect solutions. Its polarised mouldings and latch compatibility further ensure secure mating and integrity.

Features a straight through hole mount for secure PCB integration. Provides 16 male contacts with 2 mm pitch, ensuring reliable signal transmission. Polyphenylene sulphide housing and gold-plated phosphor bronze contacts enhance durability and conductivity.

Supports up to 3A current and operates at voltages up to 120V. Handles extreme environments with an operating temperature range of -55°C to 125°C. Shrouded two-row connector design increases mechanical protection and aids mating alignment.

Complies with relevant industry standards for rugged, high vibration/shock resistance. Tail pin length is 3 mm for optimal soldering performance and retention. For comprehensive PCB interconnections, browse more Datamate L-Tek Series Headers in the PCB Header category on EnvMart.
