3M 3000 Series Right Angle Through Hole PCB Header, 60 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N3372-5302RB

Free Delivery in India | Lowest Global Shipping Charges

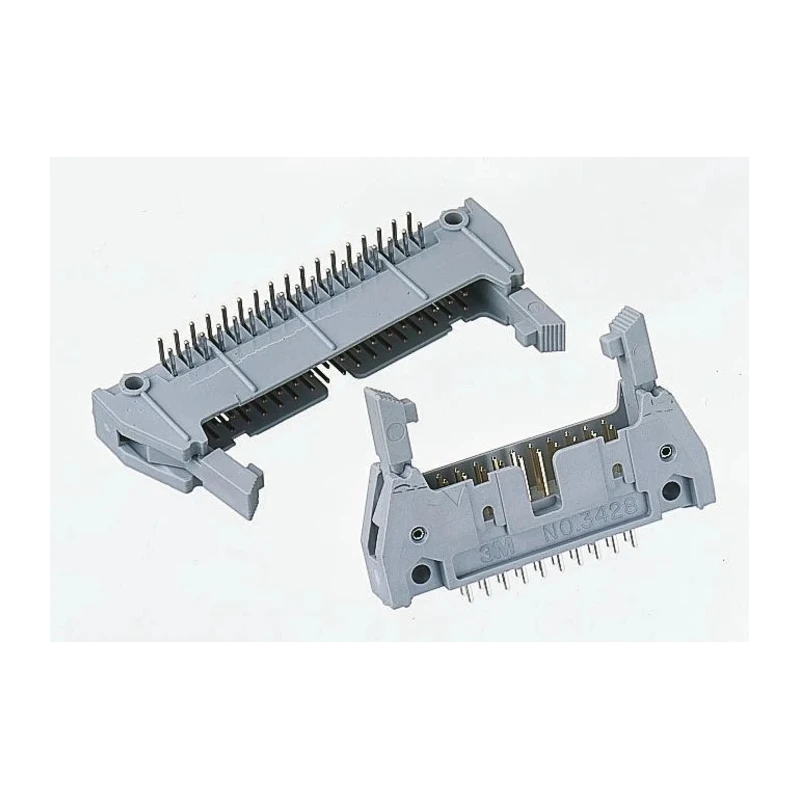

3M 3000 Series Right Angle Through Hole PCB Header, 60 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N3372-5302RB



Category PCB Header Brand 3M Condition New

Specifications

Country of Origin	United States
Voltage	25V
Brand	3M
Orientation	Right Angle
Current	2.0
Model	N3372-5302RB
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper Alloy
Series	3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	0.01in
Mating Pin Length	6.2mm
60 way IDC r/a std profile boxed headerBrand	3M

Key Features

The header features a double row of 60 male contacts for reliable board-to-board and wire-to-board connections.
Constructed from glass filled polyester housing material suitable for high temperature soldering processes.
Contacts are made of copper alloy with gold plating ensuring low resistance and durability.
Designed for through-hole mount with robust roll pin style ejector latches to secure connections.
Capable of operating in temperatures ranging from -55°C to 105°C with a voltage rating of 25V.
Shrouded design provides four wall protection to prevent contact damage and minimize misalignment.
Includes polarization notches and allows military polarization with additional polarizing keys.
Suitable for industrial, instrumentation, medical, consumer electronics, and commercial applications requiring reliable PCB connections.

Product Description

3M N3372-5302RB 3000 Series Right Angle Through Hole PCB Header features 60 contacts in a double row configuration with a 2.54 mm pitch. Its shrouded design protects contacts from damage and ensures secure connections with included roll pin ejector latches.

The housing is crafted from glass filled polyester, rated for high-temperature soldering up to 260°C, making it compatible with lead-free processes according to JEDEC J-STD-020C. This durable construction supports industrial and commercial-grade applications.

The copper alloy contacts plated with gold offer excellent conductivity and resistance to corrosion. This PCB Header has a male contact gender, with mating pin length of 6.2 mm and tail pin length of 0.01 in. It operates within a voltage limit of 25V and temperature range from -55°C to 105°C.

Additional features include center bump polarization and optional military-grade polarization using part number N3518. The robust roll pin style ejector latches provide high retention especially in high vibration environments, facilitating easy connector removal when required.

This connector is suited for board-to-board and wire-to-board mounting applications in a wide range of markets including industrial instrumentation, medical equipment, consumer electronics, and commercial systems.

Thed four-wall shrouding protects contacts against damage and contamination. The right angle orientation allows compact PCB layouts with effective space utilization. Standard 2.54 mm pitch and 2 row design ensures compatibility with industry-standard components.

Reliable high temperature housing meets demanding manufacturing and environmental conditions. Ejector latches and polarization features reduce misalignment and improve connection security. Explore a broad selection of high-quality PCB connectors and components at EnvMart for your electrical and electronics manufacturing needs.
