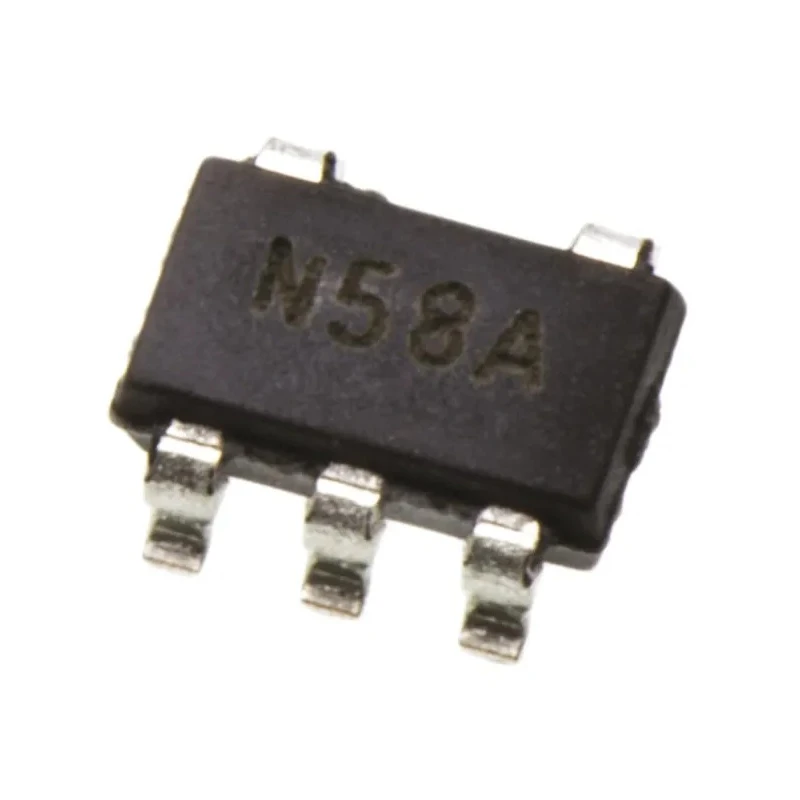

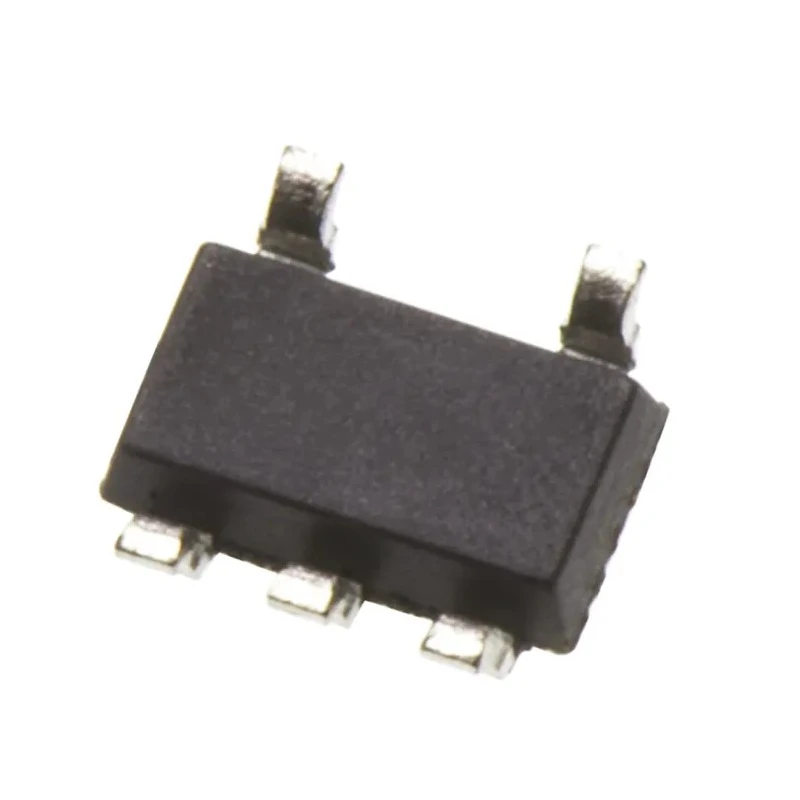

Microchip 5-Channel Low Dropout Voltage Regulator, 150 mA, 3.3V, SOT-23 5-Pin TC1185-3.3VCT713
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | TC1185-3.3VCT713 |
| Width | 1.8mm |
| Mount Type | Surface |
| Output type | Fixed |
| Output Current | 150mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Load Regulation | 0.5 % |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 6V |
| Output Voltage | 3.3V |
| Quiescent Current | 500mA |
| Line Regulation | 0.05 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.7V |
| Pin Count | 5 |
Key Features
- Operates with a low dropout voltage suitable for efficient voltage regulation.
- Provides five fixed outputs for versatile multi-channel applications.
- Features a quiescent current of 500mA to optimize power consumption.
- Built with surface mount technology for compact PCB integration.
- RoHS compliant ensuring environmentally-friendly manufacturing standards.
- Functions effectively across a broad temperature range from -40°C to 125°C.
- Maintains line regulation at 0.05% and load regulation at 0.5% for stable voltage output.
- Compatible with input voltages from 2.7V to maximum 6V supply.
Product Description
Microchip TC1185-3.3VCT713 is a 5-channel low dropout (LDO) voltage regulator designed for efficient power management in electronic applications. It provides a fixed 3.3V output voltage capable of delivering up to 150 mA of current, housed in a compact SOT-23 5-pin surface mount package that is ideal for space-constrained designs.
This regulator features excellent line and load regulation performance, with line regulation at 0.05% and load regulation at 0.5%, ensuring a consistent voltage supply under varying conditions. Its quiescent current rating of 500mA contributes to reduced power loss and improved energy efficiency.
The device operates efficiently over a wide temperature range from -40°C to 125°C, making it suitable for harsh industrial, automotive, and commercial electronic environments. It accepts input voltages from 2.7V up to a maximum of 6V, providing flexibility for various power sources.
Its package dimensions measure approximately 3.1mm in length, 1.8mm in width, and 1.3mm in height, facilitating integration into compact circuit boards. The device complies with RoHS standards, affirming its compliance with environmental and safety regulations.
Operates with low dropout voltage for efficient regulation. Five fixed output channels for multi-output applications. Compact SOT-23 5-pin surface mount package. Wide operating temperature range from -40°C to 125°C. Input voltage range from 2.7V to 6V.
Line regulation at 0.05% ensures voltage stability. Load regulation at 0.5% maintains consistent output. Quiescent current of 500mA supports energy-efficient operation. RoHS compliant for environmental safety.
This low dropout Voltage Regulator is commonly used in industrial electronics, automotive power systems, consumer devices, and embedded systems to provide steady voltage levels critical for device reliability and performance. Its compact size and robust electrical characteristics make it an ideal choice for modern power management solutions.
Explore more electronic components and power management solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a fixed output voltage of 3.3V.
The maximum output current is 150 mA.
It accepts input voltages from 2.7V to a maximum of 6V.
The package dimensions are approximately 3.1mm in length, 1.8mm in width, and 1.3mm in height.
The line regulation is 0.05%, ensuring stable voltage output under varying input conditions.
The load regulation is 0.5%, which helps maintain consistent output voltage.
It has a quiescent current rating of 500mA, optimizing power consumption.
It operates efficiently over a wide temperature range from -40°C to 125°C.
Yes, it is RoHS compliant, ensuring adherence to environmental and safety regulations.
It features five fixed output channels for versatile multi-channel applications.
It utilizes surface mount technology, making it suitable for compact PCB integration.
It is classified as a low dropout (LDO) voltage regulator.
