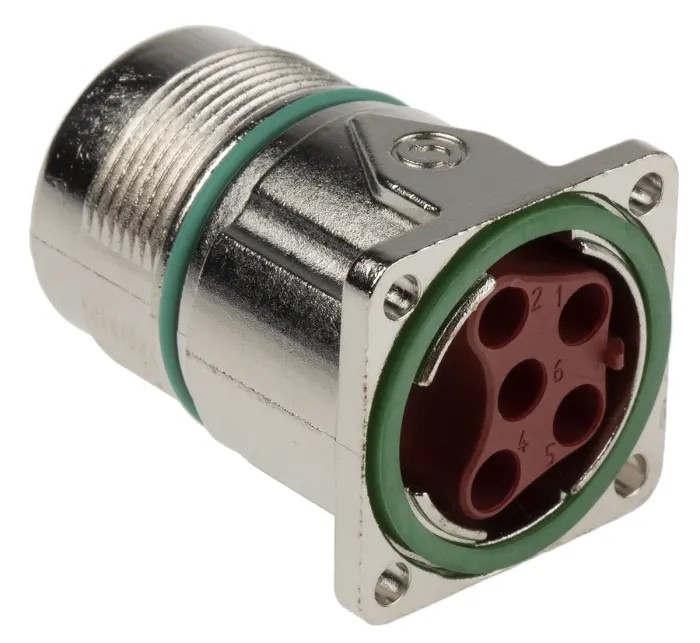

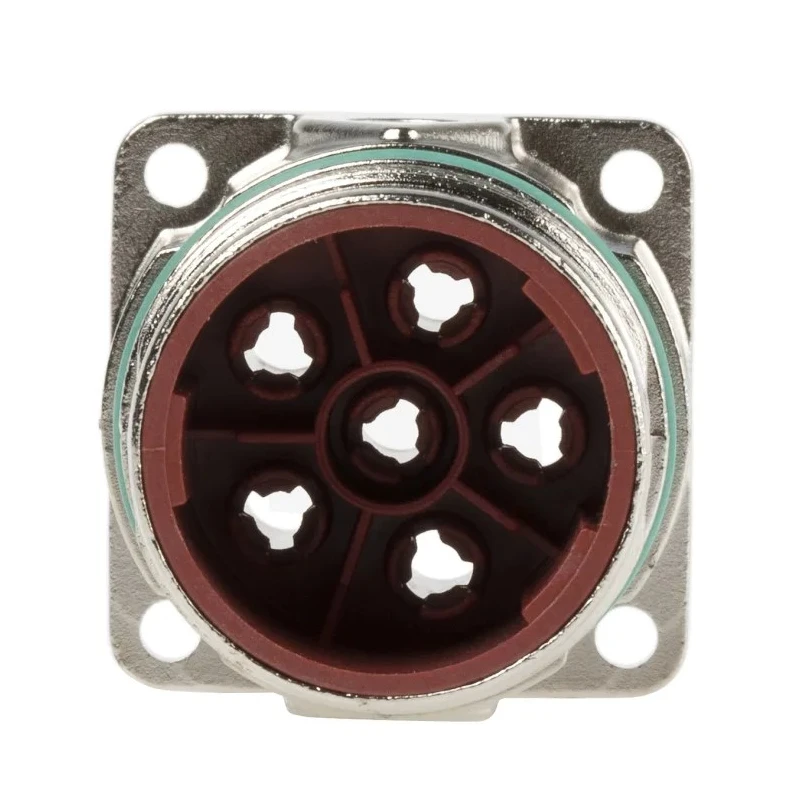

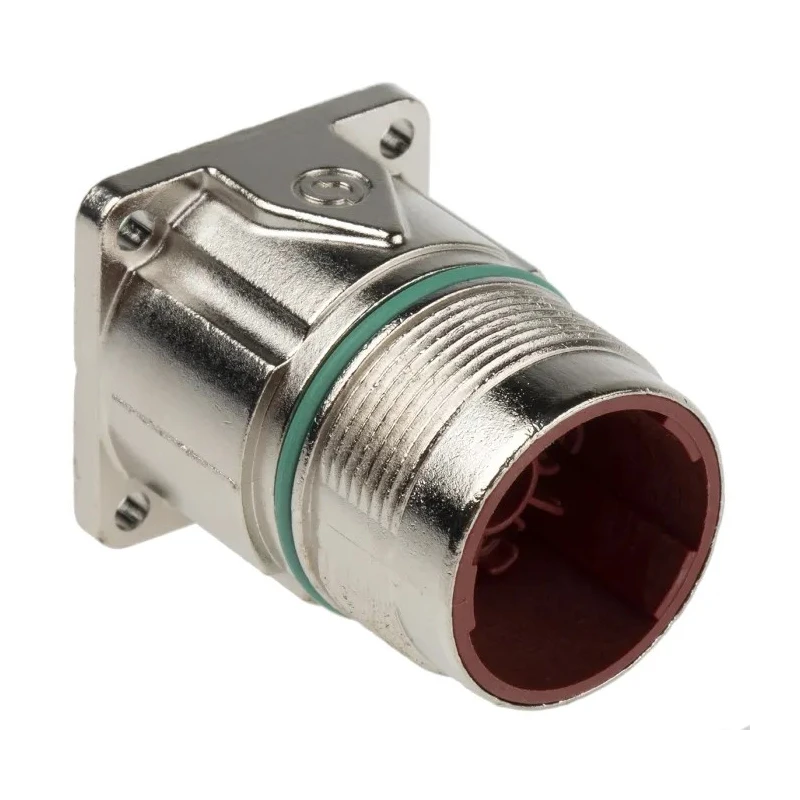

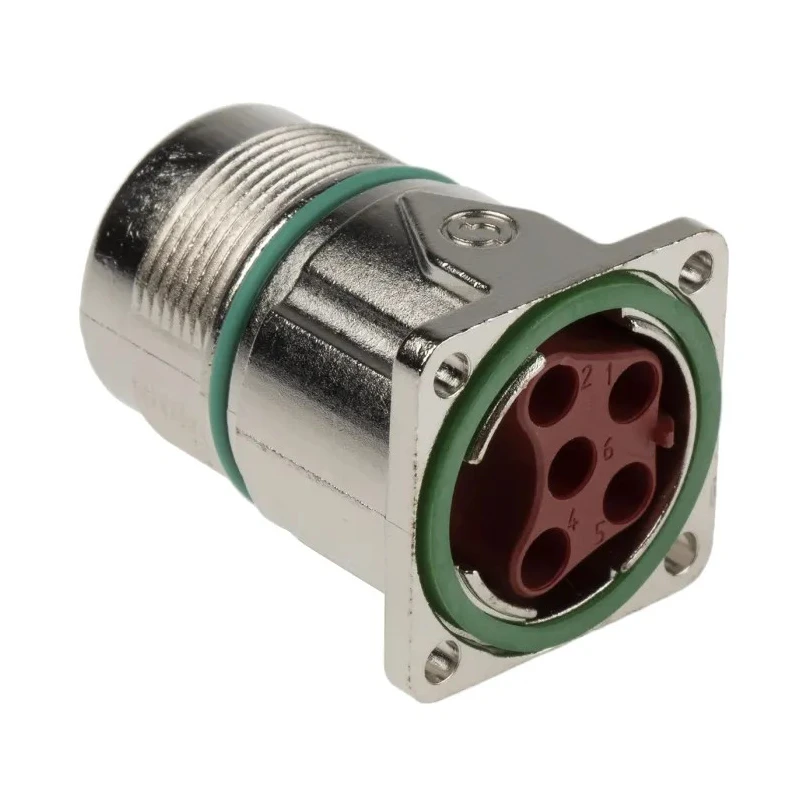

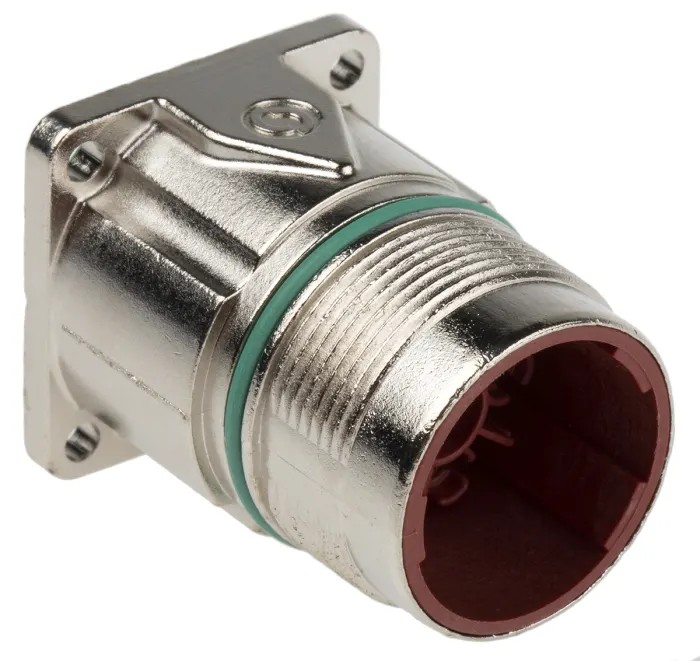

Lapp Circular Connector, 6 Contacts, Panel Mount, M23 Size, Plug Male IP68 Protection, 25A Current, 630V Voltage 76003000

Free Delivery in India | Lowest Global Shipping Charges

Lapp Circular Connector, 6 Contacts, Panel Mount, M23 Size, Plug Male IP68 Protection, 25A Current, 630V Voltage 76003000

Name: Lapp Circular Connector, 6 Contacts, Panel Mount, M23 Size, Plug Male IP68 Protection, 25A Current, 630V Voltage 76003000
Brand: Lapp
SKU: 149391
Price: 30.06 USD
Availability: InStock



Category Industrial Circular Connectors Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	630V
Brand	Lapp
Orientation	Straight
Current	25A
Model	76003000
IP Rating	IP68
Mount Type	Panel Mount
Housing Material	Zinc
Contact Material	Brass
Series	EPIC CIRCON
Termination Type	Crimp
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-25°C
Pole Format	5+PE
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shell Size	25.4 mm
Mating Type	Keyed
Connector Size	M23
Plug/Socket	Plug

Key Features

This circular connector features 6 contacts with a current rating of 25A.
Designed as a panel mount plug with male contact gender and a keyed mating type.
Offers a high voltage rating of 630V and an IP68 protection class for water and dust resistance.
Constructed with zinc housing, brass contact material, and gold plated contacts for durability and reliable signal transmission.
Operates reliably in temperatures ranging from -25°C to 125°C, suitable for harsh environments.
Ensures EMC shielding, resistance against vibration and corrosion, and is guaranteed for 500 mating cycles.

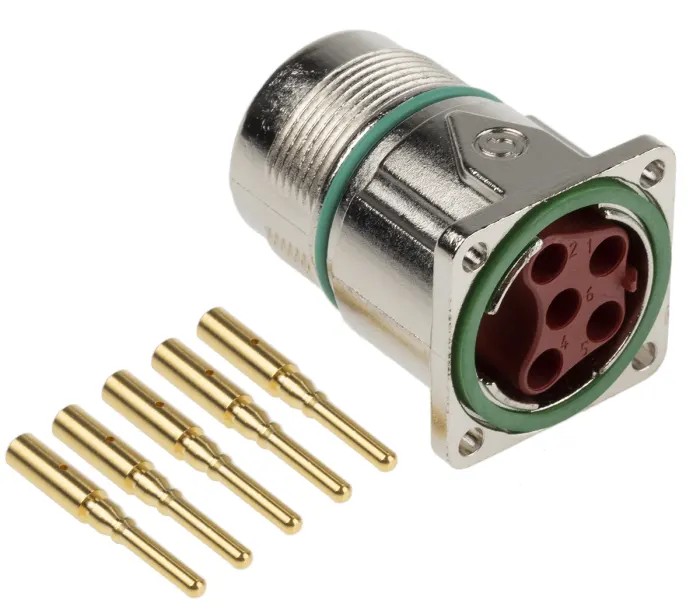

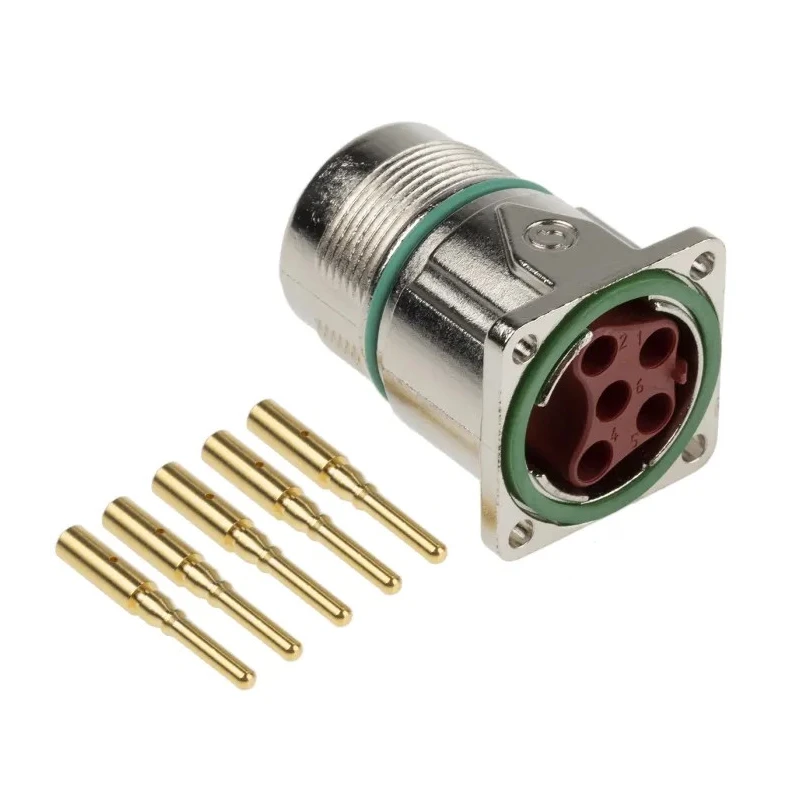

Crimp termination type ensures secure and efficient installation with supplied crimp terminals.

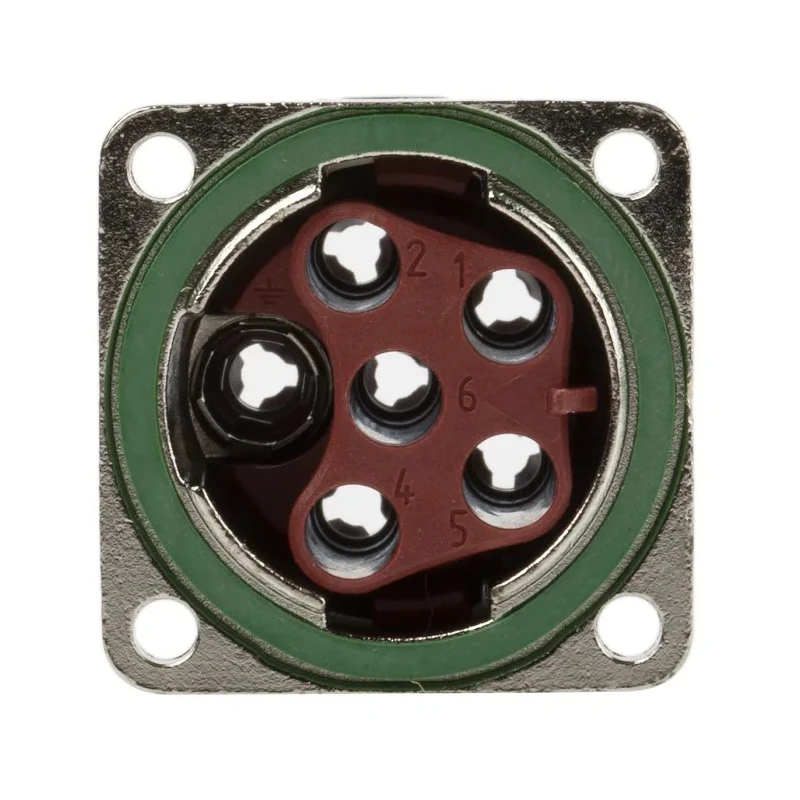

Shell size measures 25.4 mm and pole format is 5+PE.

Product Description

Lapp 76003000 Circular Connector is a robust and reliable industrial-grade panel mount plug featuring 6 contacts and M23 connector size. Engineered for demanding applications, it provides outstanding protection and performance with an IP68 rating, making it resistant to dust and water ingress. This connector operates at 25A current and 630V voltage, delivering safe and efficient electrical connectivity.

The male plug is constructed with a zinc housing that offers mechanical strength and corrosion resistance. Contacts are made of brass with gold plating, ensuring low contact resistance and excellent conductivity. It supports 500 mating cycles, maintaining consistent performance through repeated connections. The connector design includes a keyed mating type to prevent mismating during installation.

Suitable for industrial, manufacturing, automation, and commercial electrical applications, the connector is rated for operation between -25°C to 125°C, adapting to challenging environmental conditions. Crimp termination provides a secure and cost-effective connection with supplied crimp terminals, lowering installation time and cost.

The EPIC CIRCON series connector guarantees excellent EMC shielding, protecting against electromagnetic interference in industrial settings. The shell size is 25.4 mm with a pole format of 5+PE, designed for panel mount installation, facilitating system integration.

Manufactured in Germany with high-quality standards, this circular connector suits applications in electronics, electrical control panels, power supply systems, and industrial machinery where reliability and protection are paramount.

This circular connector features 6 contacts with a current rating of 25A. Designed as a panel mount plug with male contact gender and a keyed mating type. Offers a high voltage rating of 630V and an IP68 protection class for water and dust resistance.

Constructed with zinc housing, brass contact material, and gold plated contacts for durability and reliable signal transmission. Operates reliably in temperatures ranging from -25°C to 125°C, suitable for harsh environments.

Ensures EMC shielding, resistance against vibration and corrosion, and is guaranteed for 500 mating cycles. Crimp termination type ensures secure and efficient installation with supplied crimp terminals. Shell size measures 25.4 mm and pole format is 5+PE.

Manufactured in Germany following industrial standards without specific approvals listed. Explore more circular connectors and industrial electrical components at EnvMart.

Explore more products in our Industrial Circular Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 25A and a voltage rating of 630V, making it suitable for various electrical applications.

It has an IP68 protection class, which means it is resistant to dust and can withstand water immersion, ensuring reliable performance in harsh environments.

The housing is made of zinc, while the contacts are constructed from brass with gold plating, providing excellent conductivity and corrosion resistance.

This connector operates reliably within a temperature range of -25°C to 125°C, suitable for challenging environmental conditions.

It features 6 contacts, designed to facilitate electrical connectivity in various applications.

It uses a crimp termination type, which allows for secure and efficient installation with the supplied crimp terminals.

The shell size measures 25.4 mm, which is designed for panel mount installation.

It features a keyed mating type, which helps prevent mismating during installation, ensuring correct connections.

This model is guaranteed for 500 mating cycles, maintaining consistent performance through repeated use.

It is manufactured in Germany, adhering to high-quality industrial standards.

This connector is part of the EPIC CIRCON series, which is designed for industrial-grade applications.
