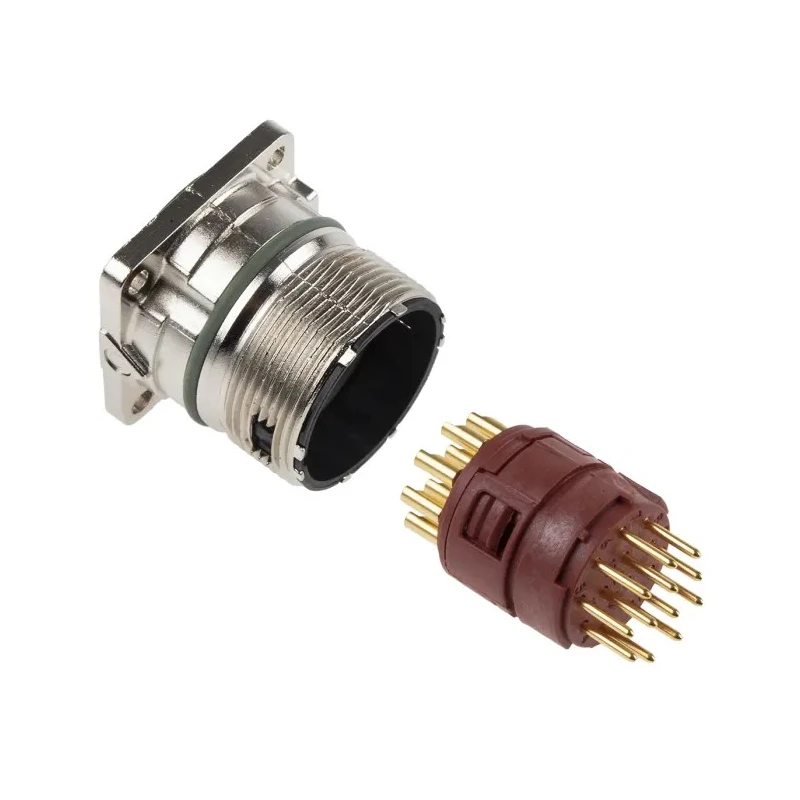

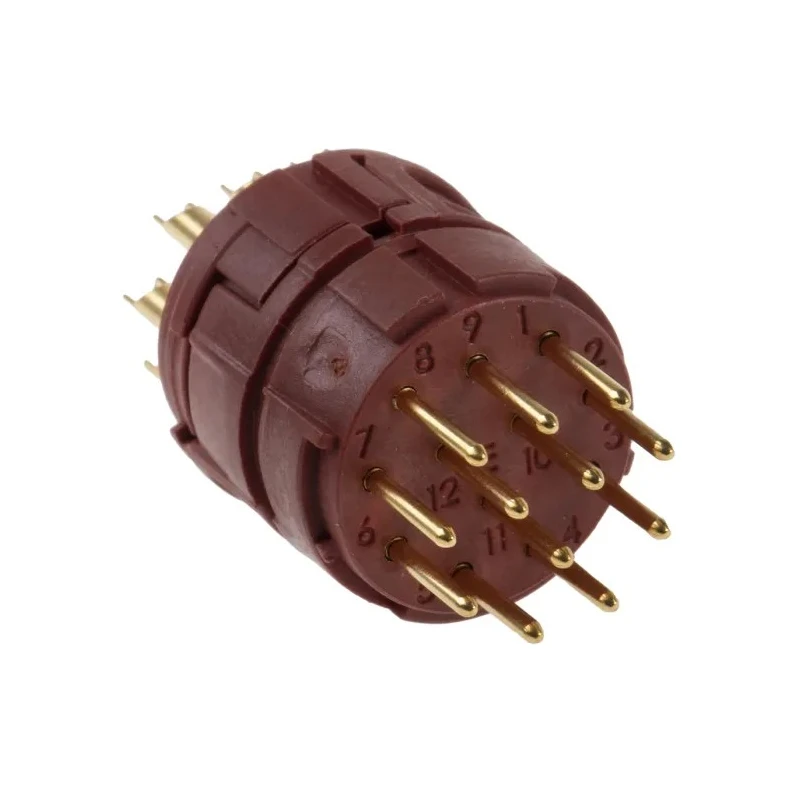

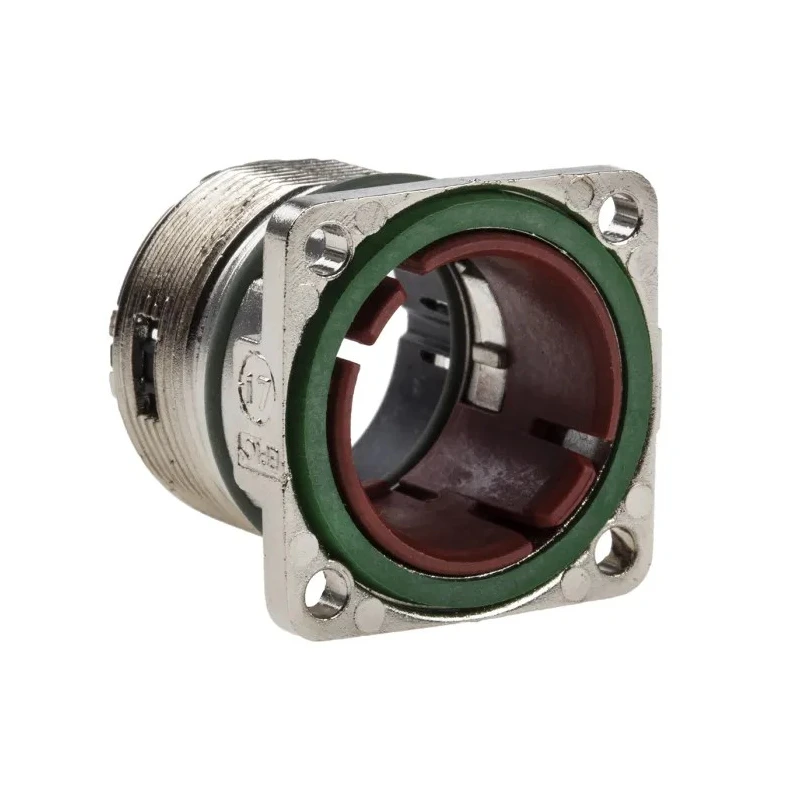

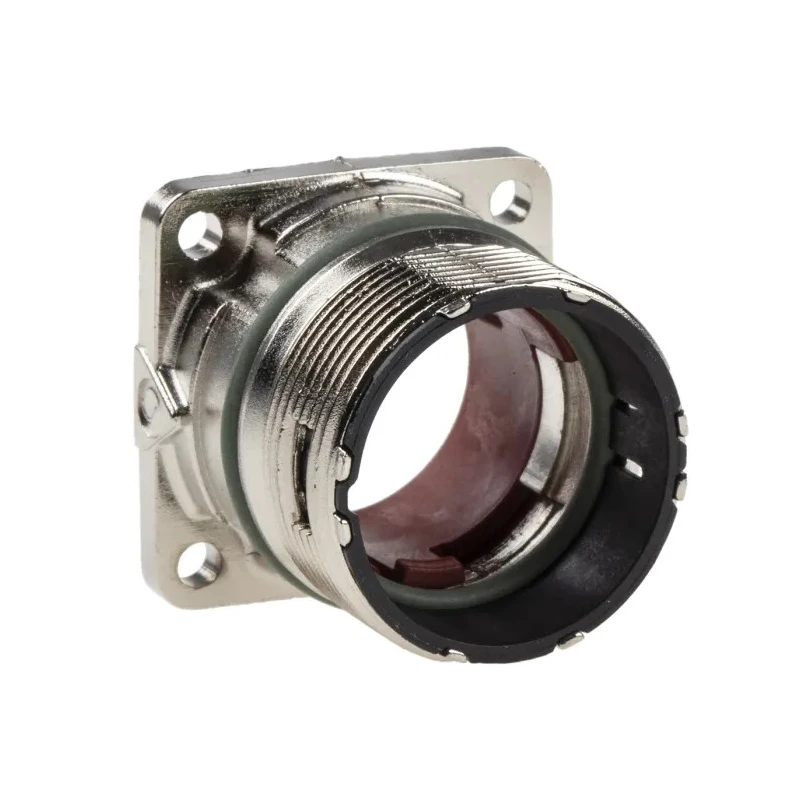

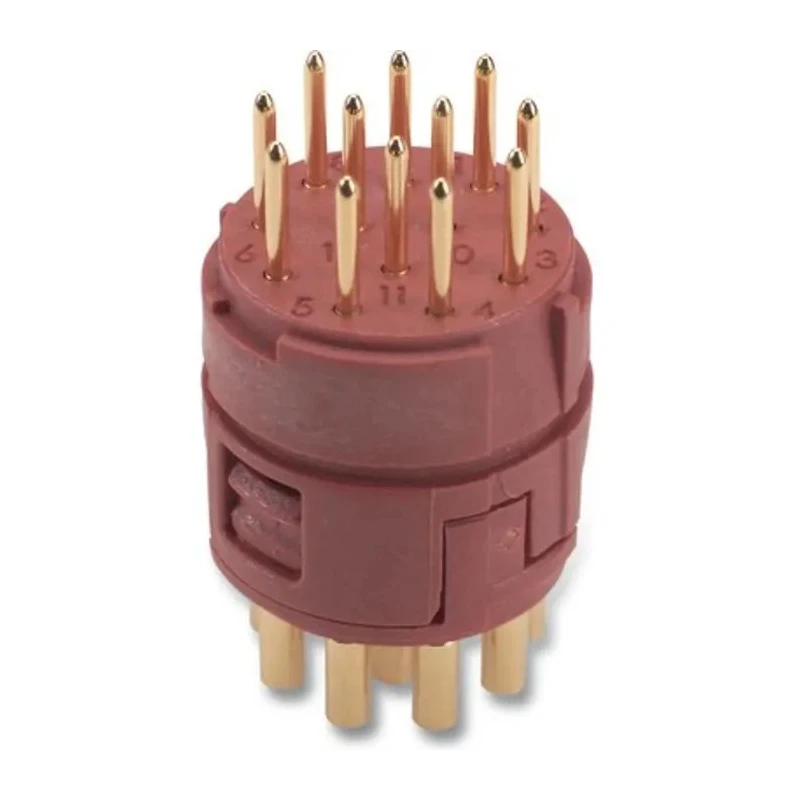

Lapp 12-Contact Circular Connector, M23, Panel Mount, Plug, Male, IP68, Straight, Solder Termination 72004000 + 73002720
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 100.0V |
| Brand | Lapp |
| Orientation | Straight |
| Current | 7A |
| Model | 72004000 + 73002720 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Nickel Plated Zinc |
| Contact Material | Copper |
| Series | SIGNAL M23 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 12 |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | M23 |
| Mating Type | Keyed |
| Connector Size | M23 |
| Plug/Socket | Plug |
| Coding | N |
Key Features
- Rated IP68 for excellent environmental protection, suitable for harsh conditions.
- Features a panel mount design for secure and stable installation.
- Gold-plated copper contacts ensure high conductivity and reliability.
- Robust nickel-plated zinc housing resists chemicals and mechanical damage.
- Straight body orientation allows straightforward panel integration.
- Supports 7A current and 100V operation, ideal for automation, control, and measurement applications.
- Male plug configuration with solder termination for secure customized wiring.
- Operates reliably from -25°C to +125°C for broad application versatility.
Product Description
The Lapp 72004000 + 73002720 is a high-performance industrial circular connector with 12 contacts in a compact M23 shell size, designed for secure panel mounting. This male plug is engineered for exceptional durability and signal integrity in demanding automation, control, and measurement environments, featuring a robust nickel-plated zinc housing to resist chemicals and mechanical wear.
Its IP68 ingress protection rating ensures excellent resistance to water and dust, allowing installation in industrial environments exposed to moisture, oil, or particulates. The straight housing design simplifies panel integration, and the keyed mating mechanism provides secure, error-proof connections that prevent misalignment.
The plug configuration features gold-plated copper contacts, providing reliable conductivity and minimizing contact resistance, which is crucial for minimizing interference and ensuring consistent signal or power transmission. Solder terminations make it straightforward for technicians to fabricate custom harnesses for specialized machinery or retrofit projects.
Designed to operate smoothly across a temperature range of -25°C to +125°C, this connector is suitable for use in applications such as servo drive systems, mechanical engineering, measurement equipment, and wind energy installations. Its vibration-resistant construction and color coding further simplify installation and maintenance, contributing to long-term operational reliability.
This compact M23 circular connector is part of the SIGNAL M23 Series, recognized for its industrial robustness and flexible deployment in machinery where environmental resilience and electrical reliability are essential.
Typical use cases include automation panels, control cabinets, industrial robots, and installations requiring flexible, low-interference signal or low- to medium-current power lines.
For a broad selection of industrial connectors and the full range of Lapp components, explore the Industrial Circular Connectors category on EnvMart. Discover more Lapp connectivity solutions for automation, control, and industrial electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7A, making it suitable for various applications in automation and control.
It operates at a voltage rating of 100V, which is suitable for low- to medium-current power lines.
This unit features solder termination, allowing for secure and customized wiring configurations.
It has an IP68 rating, providing excellent resistance to dust and water, making it suitable for harsh industrial environments.
The housing is made of nickel-plated zinc, while the contacts are made of copper with gold plating for enhanced conductivity.
It operates reliably within a temperature range of -25°C to +125°C, allowing for versatile application in various environments.
This connector features 12 contacts, making it suitable for complex signal and power transmission needs.
The connector has a straight orientation, which simplifies panel integration during installation.
Yes, its IP68 rating and robust construction make it suitable for outdoor applications exposed to moisture and dust.
It is designed for applications in automation, control, and measurement, including use in servo drive systems and industrial robots.
The shell size of this model is M23, which is a standard size for many industrial connectors.
The connector features a keyed mating type, which helps prevent misalignment during connection.
